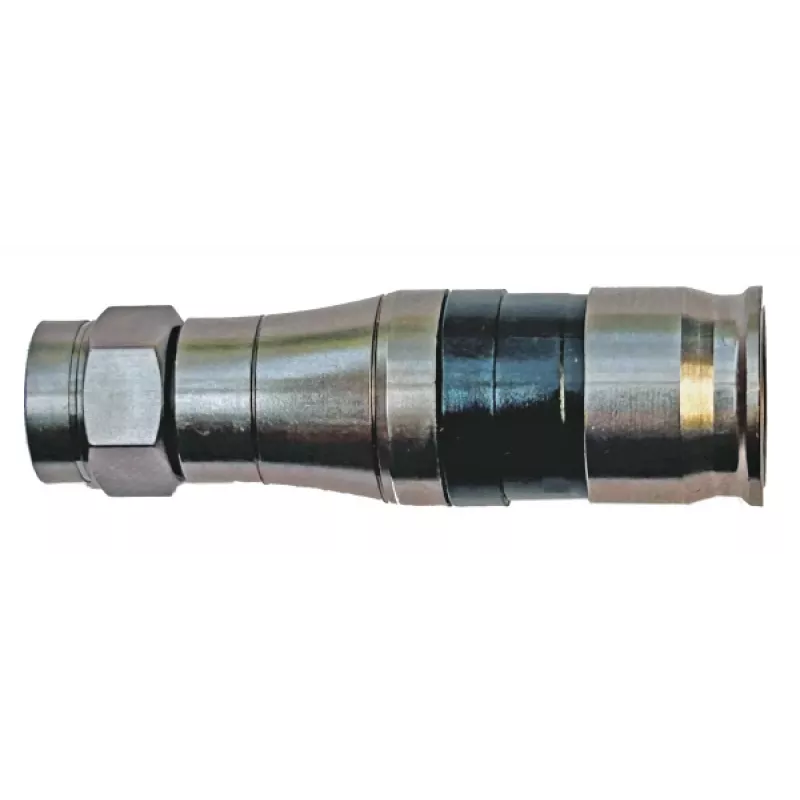

AXING EX11N βύσμα συμπίεσης F NITIN 7,2 mm RG11

With a shielding effectiveness exceeding 100 dB and a return loss greater than 30 dB, the AXING EX11N F-compression connector delivers exceptional signal integrity for RG11 coaxial cable installations. This nickel-plated brass connector is engineered for satellite, cable TV, and terrestrial DVB-T/T2 applications, ensuring reliable, weather-resistant connections.

Overview

The AXING EX11N is a compression-type F-connector designed for RG11 coaxial cables with an outer diameter of 7.0 to 7.2 mm. It features a 75 Ohm impedance and supports frequencies up to 3000 MHz, making it suitable for high-bandwidth satellite and cable TV systems. The connector includes an O-ring seal for waterproofing and is UV and corrosion resistant, ideal for outdoor use.

What stands out

• High shielding effectiveness: >100 dB (30-1000 MHz), >90 dB (1000-3000 MHz)
• Excellent return loss: >30 dB (5-1000 MHz), >25 dB (1000-3000 MHz)
• Weatherproof design with O-ring seal, UV and corrosion resistance
• Compatible with RG11 cables with 7.0-7.2 mm outer diameter
• Nickel-plated brass construction for durability and conductivity

Technical details

• Connector type: F-connector (compression)
• Impedance: 75 Ohm
• Frequency range: 0-3000 MHz
• Cable compatibility: RG11, outer diameter 7.0-7.2 mm
• Inner conductor diameter: 1.0-1.3 mm
• Dielectric diameter: 4.8 mm
• Operating temperature: -40°C to +85°C
• Installation: Requires compression tool (e.g., AXING BZT 11)

Our verdict

For professional installers, the AXING EX11N offers top-tier performance and reliability, ensuring a secure, low-loss connection for RG11 cables in any environment.
