Αξεσουάρ δορυφορικής κεραίας Televes 790901 μεταλλικό

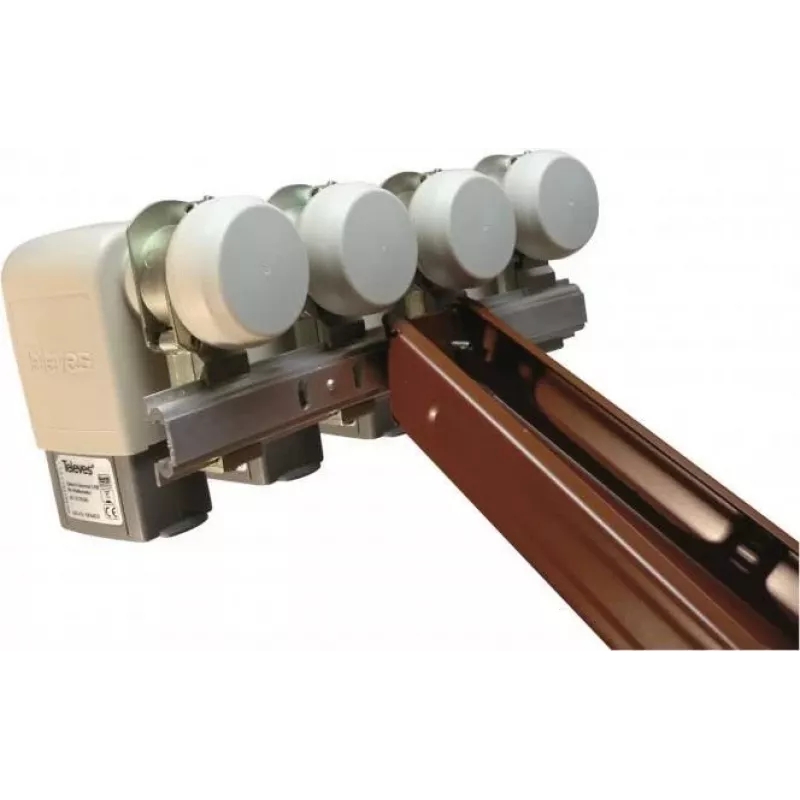

The Televes 790901 metallic satellite antenna accessory is a robust mounting component manufactured in Zamak, designed to support multi-satellite reception for QSD series dishes (available for 75 cm and 85 cm). It allows up to four different satellite positions with a maximum separation of 20°, and includes markings for the two main satellites (Astra 19° and Hotbird 13°). The accessory is supplied with screws and an additional LNB support (ref. 790902).

Advantages

The accessory is made of Zamak for high mechanical robustness and corrosion resistance. It enables multi-satellite reception (up to 4 positions) while providing adjustable elevation angle and azimuth for precise alignment. Supplied hardware includes fixing screws and a separate LNB support (ref. 790902) to complete the installation.

Suitable for

• QSD series satellite dishes (75 cm and 85 cm)
• Installations requiring reception from multiple satellites (up to 4 positions)
• Setups using Astra 19° and Hotbird 13° alignment

Key specifications

• Manufacturer: Televes
• Model / MPN: 790901
• Material: Zamak (metallic)
• Dimensions: 290 mm (width) × 35 mm (depth) × 12 mm (height)
• Weight: 0.114 kg
• Multi-satellite support: up to 4 satellite positions, max separation 20°
• Marked positions: Astra 19° and Hotbird 13°
• Includes: screws and LNB support (ref. 790902)

How to use

Mount the accessory to the QSD series dish according to the dish manufacturer instructions, positioning it for the intended satellite positions. Use the provided screws to secure the part; the rail can be slightly rotated and bolted symmetrically or asymmetrically relative to the dish centre to achieve the required geometry. Attach the LNB to the supplied LNB support (ref. 790902) and adjust elevation and azimuth to optimise signal quality.

Recommendations

For reliable alignment, start by pointing to the main satellite (Astra 19° or Hotbird 13°), then switch to secondary positions and fine-tune elevation and azimuth. Verify all fastenings are secure and use corrosion-resistant hardware where the environment requires extra protection.
