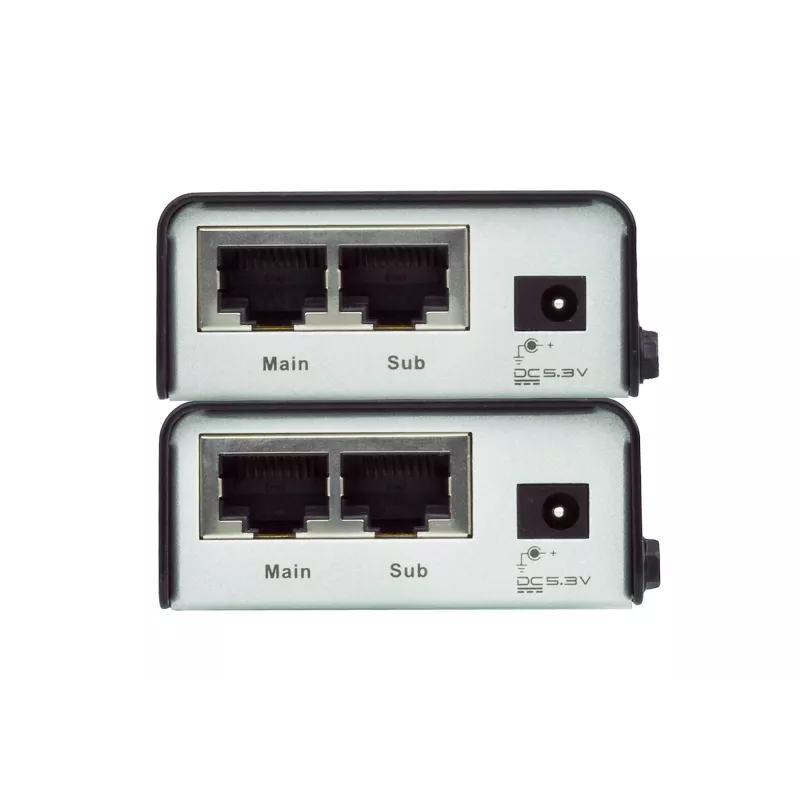

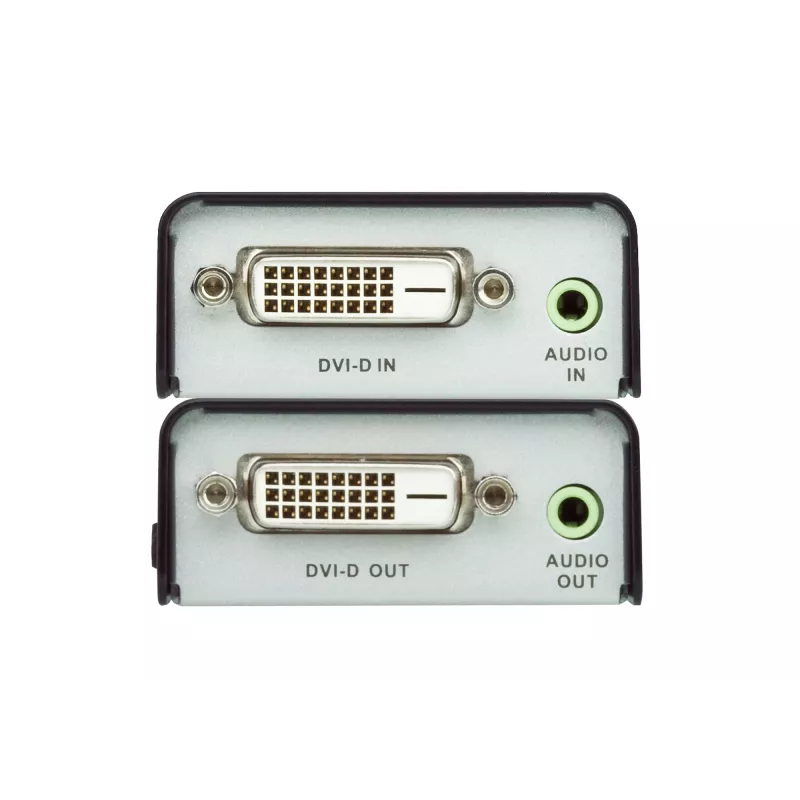

AV-Extender ATEN VE602 DVI Dual Link με ήχο, 2560×1600 έως 40 m, Cat5e

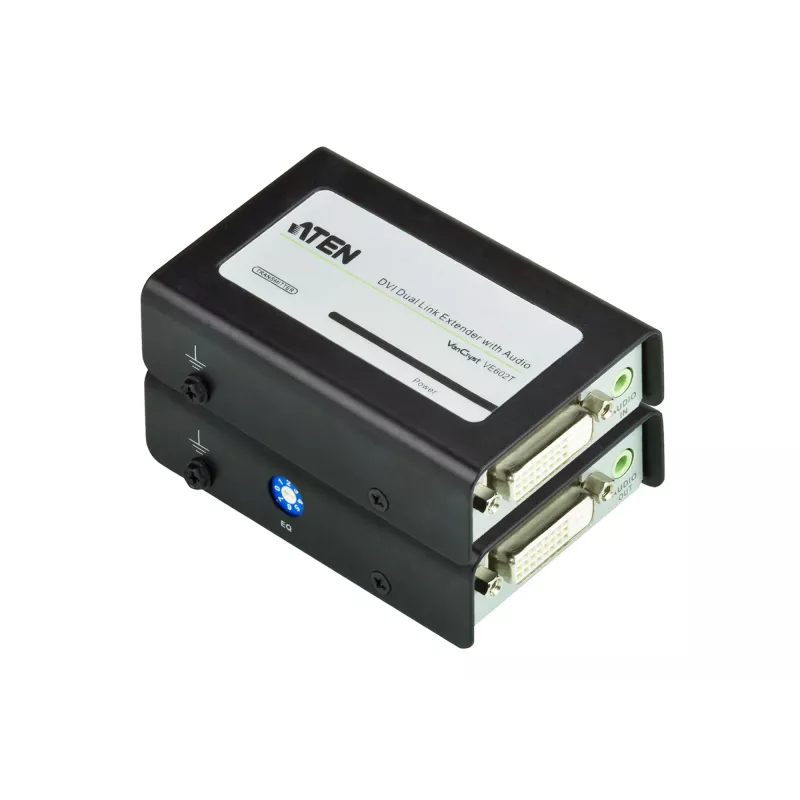

ATEN VE602 DVI Dual Link with audio is a compact AV transmitter and receiver pair designed to extend a DVI Dual Link video signal with audio over Cat5e cabling. The kit supports high-resolution displays up to 2560×1600 and is intended for installations where the source and display must be separated by several meters. Each unit features a compact black housing and low power consumption, making the VE602 suitable for signage, meeting rooms and AV setups that require reliable remote display connectivity.

Advantages

The VE602 provides loss-minimized transmission of DVI Dual Link video and stereo audio over a single Cat5e connection, simplifying cabling and installation. Compact transmitter and receiver units reduce space requirements and allow flexible placement near source and display devices. Low power consumption helps reduce operating costs and heat output. Support for resolutions up to 2560×1600 preserves image detail for high-resolution displays.

Suitable for

• Digital signage and information displays in public areas
• Conference rooms and boardrooms where the PC or media player is remote from the display
• AV installations in classrooms, training facilities and control rooms
• Environments that use existing Cat5e cabling to extend DVI displays

Key specifications

• Type: AV transmitter and receiver pair
• Maximum supported resolution: 2560 × 1600
• Maximum transfer distance: up to 60 m over Cat5e
• Cable types supported: Cat5e
• Product colour: Black
• Form factor: compact desktop units
• Power consumption: low power operation for both transmitter and receiver

How to use

Connect the DVI source (PC, media player or other DVI output) to the transmitter unit and connect the display to the receiver unit using DVI cables. Use a single Cat5e cable between the transmitter and receiver to carry video and audio signals. Power both units according to the supplied power adapters and verify the source resolution is set to a supported mode (up to 2560×1600). After connections are complete, use the display and source controls to confirm proper video and audio output.

Recommendations

For reliable high-resolution transmission, use high-quality Cat5e cabling in good condition and keep cable runs within the specified distance limits. When operating at or near the maximum resolution, verify that the source device and display are configured for the matching resolution and refresh rate. Allow adequate ventilation around each unit and place the compact transmitter and receiver away from strong electromagnetic interference sources.
