AURATON Ασύρματος Προγραμματιζόμενος Ελεγκτής Θέρμανσης Δαπέδου

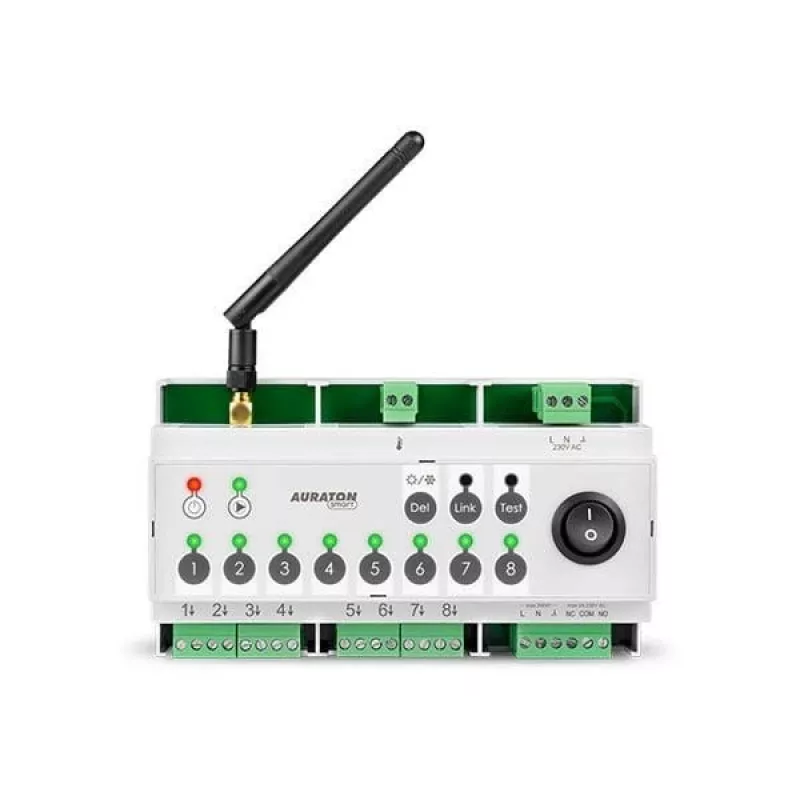

The AURATON Wireless Programmable Floor Heating Controller is a state-of-the-art thermostat system designed for precise and energy-efficient temperature management in residential and commercial spaces. This RF 868 MHz wireless set includes a programmable thermostat and a receiver, offering flexible control for electric and water-based heating systems. With a 7-day schedule and up to 6 temperature changes per day, it ensures optimal comfort while reducing energy consumption. The built-in air sensor and external floor sensor input (NTC 10kΩ) provide accurate temperature monitoring, while the adjustable hysteresis (0.2°C / 0.4°C) prevents frequent cycling. The backlit LCD display and intuitive controls make programming effortless. The receiver supports a maximum load of 16A / 3680W, compatible with boilers, pumps, and actuators. Frost protection (adjustable 4-10°C) safeguards against freezing. Ideal for underfloor heating, the system offers manual, automatic, and holiday modes. Wall-mounted design with IP20 rating. Wireless range up to 30m indoors, 300m open space.

Advantages

Energy-saving programmable schedules; wireless installation without wiring; precise temperature control ±0.2°C; frost protection for peace of mind; easy-to-use backlit display; compatible with various heating systems.

Suitable for

• Underfloor heating systems (electric and water)
• Radiators and convectors
• Boilers, pumps, and actuators
• Residential and light commercial applications

Key specifications

• Product Type: Wireless Programmable Thermostat
• Communication: RF 868 MHz
• Programming: 7-day, 6 temperature changes per day
• Temperature Control Range: 5 - 30 °C
• Temperature Measurement Range: 0 - 35 °C
• Temperature Accuracy: ±0.2 °C
• Hysteresis: Adjustable (0.2 °C / 0.4 °C)
• Sensors: Built-in air sensor, External floor sensor input (NTC 10kΩ)
• Display: Backlit LCD
• Thermostat Power Supply: 2x AA 1.5V batteries
• Receiver Power Supply: 230V AC, 50Hz
• Max Receiver Load: 16A / 3680W
• Frost Protection: Yes (adjustable 4-10 °C)
• Mounting: Wall-mounted
• IP Rating: IP20
• Wireless Range: Up to 30m (indoors), 300m (open space)
• Control Modes: Manual, Automatic (Programmable), Holiday

Recommendations

For optimal performance, install the thermostat at a height of 1.5m away from heat sources. Use alkaline batteries for longer life. Ensure the receiver is connected by a qualified electrician.
