AudioCodes Mediant 800B E-SBC - Πύλη VoIP

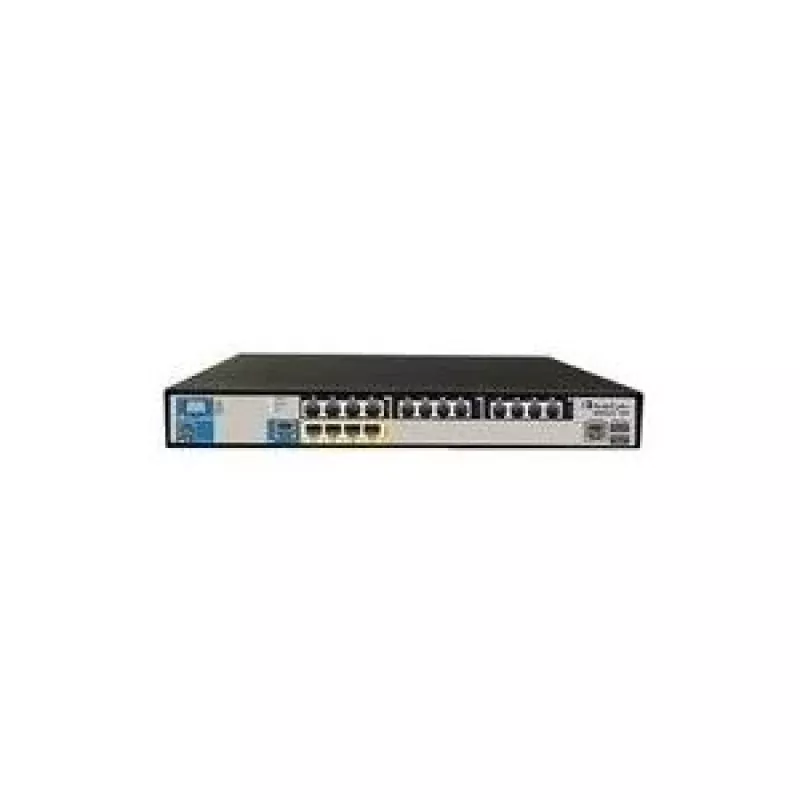

Small and medium enterprises often struggle to securely connect their IP telephony systems to external networks, facing threats like toll fraud, DoS attacks, and interoperability issues with SIP trunking providers. The AudioCodes Mediant 800B E-SBC VoIP Gateway solves these challenges by combining an enterprise session border controller and a media gateway in a single 1U rackmount appliance. It provides robust security, seamless connectivity, and high-quality voice for up to 600 concurrent SBC sessions or 120 gateway channels.

Who is it for

This device is ideal for SMEs, branch offices, and distributed enterprises that need to connect their on-premises PBX or unified communications platform to SIP trunks or cloud services like Microsoft Teams, Skype for Business, BroadSoft, or Cisco UC. It suits IT administrators seeking a cost-effective, all-in-one solution for secure VoIP connectivity without complex deployments.

Main features

• Dual functionality: Enterprise Session Border Controller (E-SBC) and media gateway
• Supports up to 600 concurrent SBC sessions or 120 voice channels (4 E1/T1/J1 spans)
• Four 10/100/1000Base-T Ethernet ports (2 LAN, 2 WAN/DMZ) for flexible network segmentation
• Comprehensive security: SIP firewall, DoS/DDoS protection, TLS, SRTP, IPsec VPN
• Wide codec support including G.711, G.729, G.723.1, G.722, OPUS, and iLBC
• High availability options: redundant power supply and 1+1 redundancy
• Management via Web GUI, CLI, SNMP, and AudioCodes EMS
• Certified interoperability with major UC platforms

Specifications

• Product type: Enterprise Session Border Controller (E-SBC) & Media Gateway
• Max concurrent SBC sessions: 600
• Max voice channels (gateway): 120 (4 E1/T1/J1 spans)
• Network interfaces: 4 x 10/100/1000Base-T Ethernet (2 LAN, 2 WAN/DMZ)
• Digital trunk interfaces: Up to 4 E1/T1/J1 ports (software configurable)
• Signaling protocols: SIP, H.323
• Media protocols: RTP/RTCP, SRTP
• Voice codecs: G.711, G.729, G.723.1, G.722, OPUS, iLBC
• Security: SIP Firewall, DoS/DDoS Protection, TLS, SRTP, IPsec VPN
• High availability: Optional redundant power supply, 1+1 redundancy
• Management: Web GUI, CLI, SNMP, AudioCodes EMS
• Form factor: 1U rackmount
• Echo cancellation: G.168-2004 compliant
• Fax support: T.38 Fax Relay
• Interoperability: Microsoft Teams, Skype for Business, BroadSoft, Cisco UC

Tips

To maximize security, configure the SBC's SIP firewall and enable TLS/SRTP for all external SIP trunks. Use the two WAN/DMZ ports to separate voice traffic from data and create a DMZ for SIP trunking. Regularly update firmware to ensure compatibility with the latest UC platform versions and security patches.
