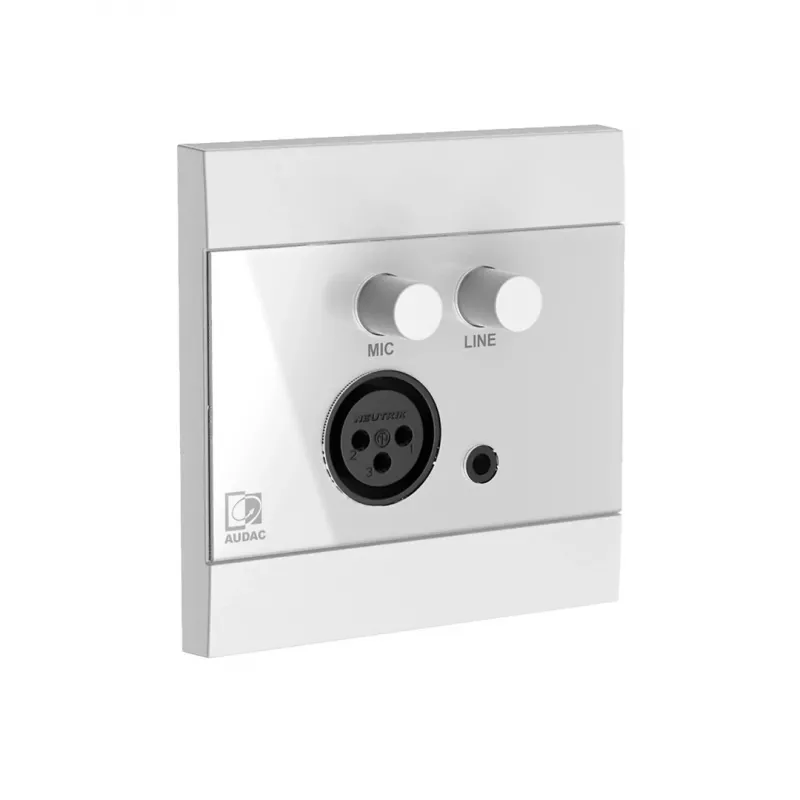

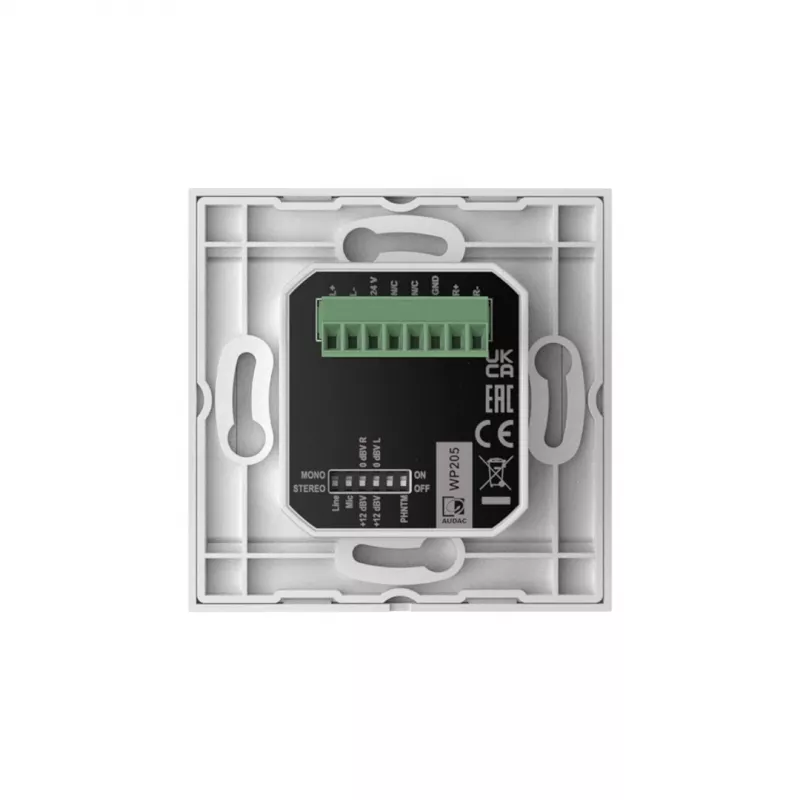

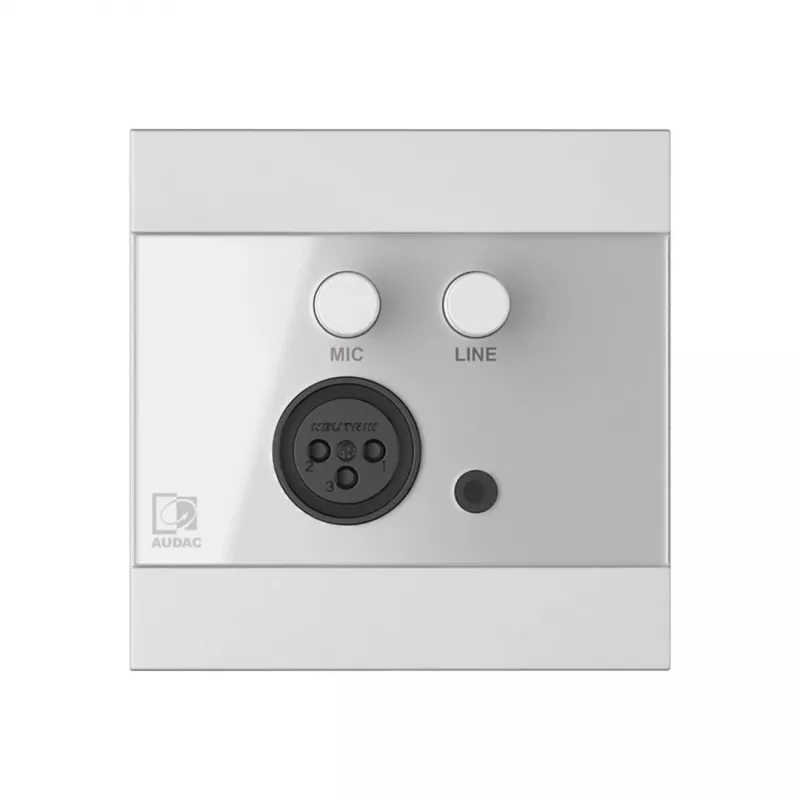

AUDAC WP205/W Πλάκα τοίχου / κάλυμμα διακόπτη λευκό

The AUDAC WP205/W is a flush-mount remote wall panel controller designed for seamless integration with AUDAC MTX series matrix amplifiers and other compatible devices. Finished in white (RAL9010), this wall plate provides intuitive volume control and 2-source selection via a rotary encoder and push buttons, making it ideal for commercial audio installations such as restaurants, retail spaces, and conference rooms.

Advantages

Easy flush wall mount in standard EU 80x80mm back boxes; bus-powered from the host device eliminates the need for external power; daisy-chainable RJ45 connectors simplify wiring; durable ABS plastic front panel with metal mounting frame ensures long-lasting performance.

Suitable for

• Controlling AUDAC MTX48, MTX88, RM523, and AMP523 devices
• Commercial audio systems requiring remote volume and source selection
• Installations where a discreet, low-profile control interface is needed

Key specifications

• Product Type: Remote Wall Panel Controller
• Control Functions: Volume Control, 2-Source Selection
• Compatibility: AUDAC MTX Series (MTX48, MTX88), RM523, AMP523
• Connectivity: RJ45 (CAT5e/CAT6)
• Communication Protocol: RS485 (AUDAC ACP)
• Power Supply: Bus Powered (from host device)
• Mounting Type: Flush Wall Mount (EU Standard 80x80mm)
• Colour: White (RAL9010)
• Control Elements: 1x Rotary Encoder, 2x Push Buttons
• Indicators: 2x Source Selection LEDs
• Max Cable Length: 300 m (CAT5e/CAT6)
• Material: ABS Plastic (Front Panel), Metal (Mounting Frame)
• Operating Temperature: 0°C - 40°C
• Front Plate Dimensions: 80 x 80 mm
• Installation Depth: 45 mm
• Connectors: 2x RJ45 (In/Out for daisy-chaining)

Recommendations

For optimal performance, use shielded CAT5e or CAT6 cables and ensure the host device supports AUDAC ACP protocol. The WP205/W is designed for indoor use only.
