ATTE ASUC-50-AD0-OF μετατροπέας DC/DC 50W 10A step-down 10-30V σε 5V

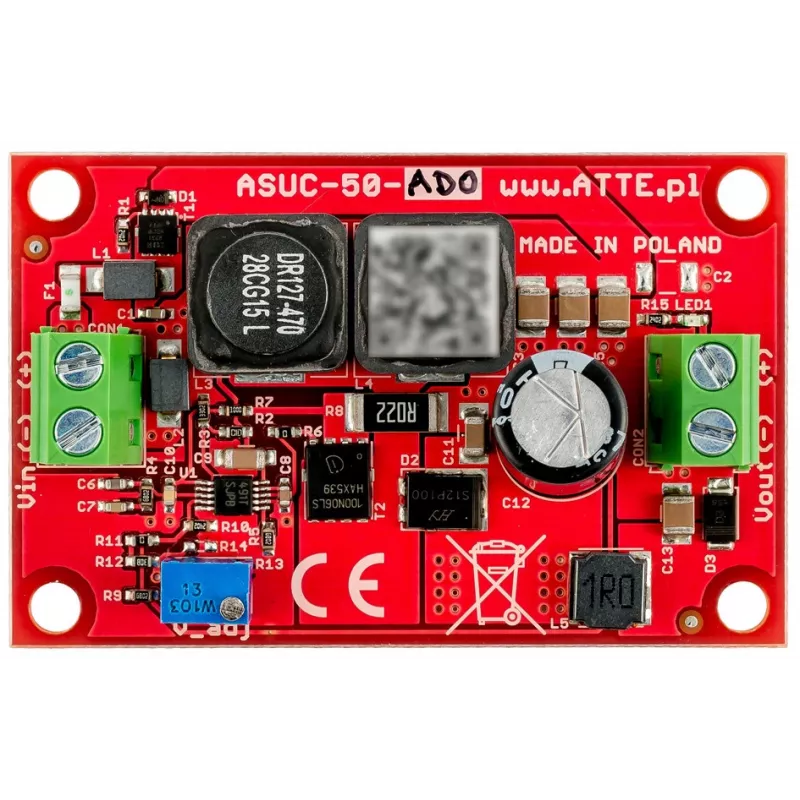

The ATTE ASUC-50-AD0-OF is a high-performance DC/DC step-down (buck) converter designed to deliver a stable 5V output from a wide 10-30V DC input. With a maximum output current of 10A and power of 50W, it is ideal for industrial, automotive, and embedded applications requiring efficient voltage conversion.

Advantages

This converter offers over 90% efficiency, passive convection cooling for silent operation, and robust protection features including overload, short circuit, overvoltage, and reverse polarity protection on the input. Its compact aluminum alloy housing with mounting holes allows for easy surface mounting in tight spaces.

Suitable for

• Industrial control systems
• Automotive electronics
• LED lighting installations
• Embedded projects
• Battery-powered equipment

Key specifications

• Input Voltage: 10-30V DC
• Output Voltage: 5V DC
• Output Current: 10A max
• Output Power: 50W max
• Efficiency: >90%
• Ripple & Noise: <50mVp-p
• Line Regulation: <1%
• Load Regulation: <1%
• Operating Temperature: -25°C to +55°C
• Cooling: Passive convection
• Housing: Aluminum alloy
• Mounting: Surface mount with mounting holes
• Connections: Screw terminals (input and output)
• Protection: Overload, short circuit, overvoltage, reverse polarity (input)
• Certifications: CE

Recommendations

For reliable and efficient DC/DC conversion in demanding environments, the ATTE ASUC-50-AD0-OF is an excellent choice. Its robust protection and high efficiency ensure long-term performance.
