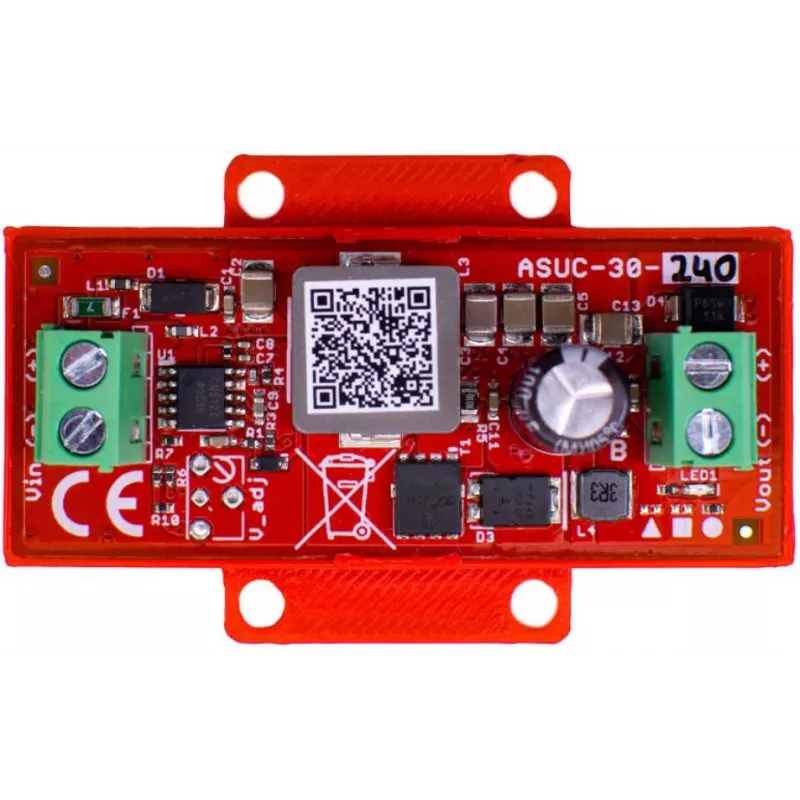

ATTE ASUC-30-240-OF 240W 24V 10A μετατροπέας DC-DC boost step-up

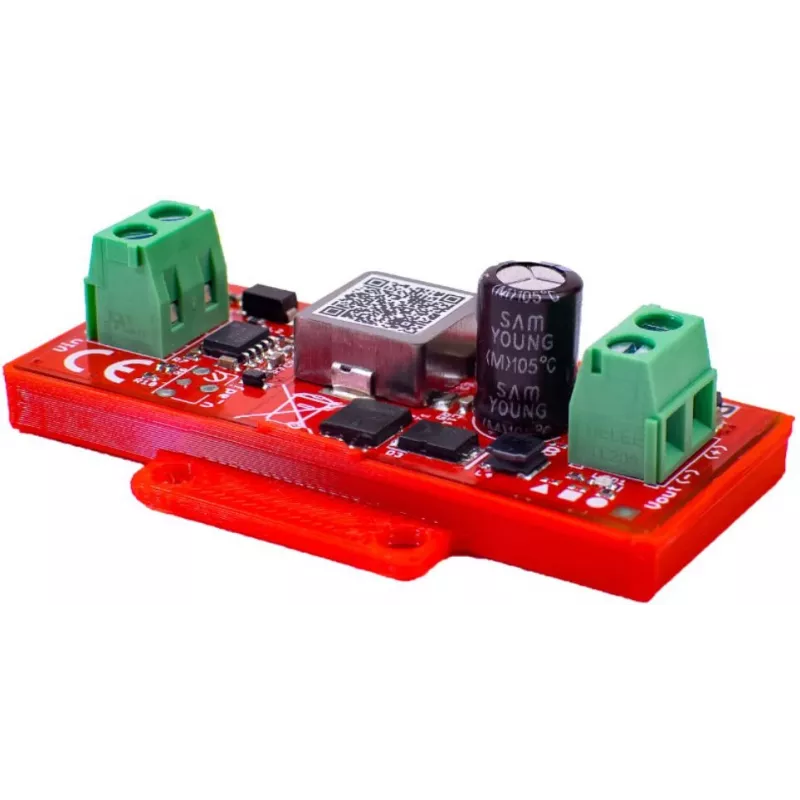

The ATTE ASUC-30-240-OF is a high-efficiency step-up (boost) DC-DC converter designed to convert a nominal 12V DC input (range 10-15V DC) to a stable 24V DC output. With a continuous output current of 10A and peak capability of 15A for up to 1 minute, it delivers up to 240W continuous power (360W peak). Housed in a durable aluminum enclosure with passive convection cooling, this converter is ideal for industrial, automotive, and renewable energy applications where a reliable 24V supply is needed from a 12V source.

Advantages

High efficiency >90% minimizes power loss and heat generation. Robust protection features including overload, short circuit, overvoltage, and overtemperature ensure safe operation. Passive cooling means no noisy fans, making it suitable for noise-sensitive environments. Compact surface-mount design with screw terminals simplifies installation.

Suitable for

• Upgrading 12V systems to 24V in vehicles, boats, and RVs
• Powering 24V industrial equipment from 12V batteries
• Solar power systems and off-grid setups
• Telecommunications and security systems requiring 24V DC

Key specifications

• Input Voltage: 10-15V DC (nominal 12V)
• Output Voltage: 24V DC
• Continuous Output Current: 10A
• Peak Output Current: 15A (1 minute)
• Continuous Output Power: 240W
• Peak Output Power: 360W
• Efficiency: >90%
• Conversion Type: Step-Up (Boost)
• Isolation: Non-isolated
• Protection: Overload, Short Circuit, Overvoltage, Overtemperature
• Operating Temperature: -20°C to +50°C
• Cooling: Passive (Convection)
• Enclosure Material: Aluminum
• Connection: Screw Terminals
• Mounting: Surface Mount

Recommendations

Ensure input voltage is within specified range and that the load does not exceed continuous ratings. For peak loads, allow sufficient cooling. Use appropriate wire gauge for screw terminals. This converter is non-isolated; verify system grounding requirements.
