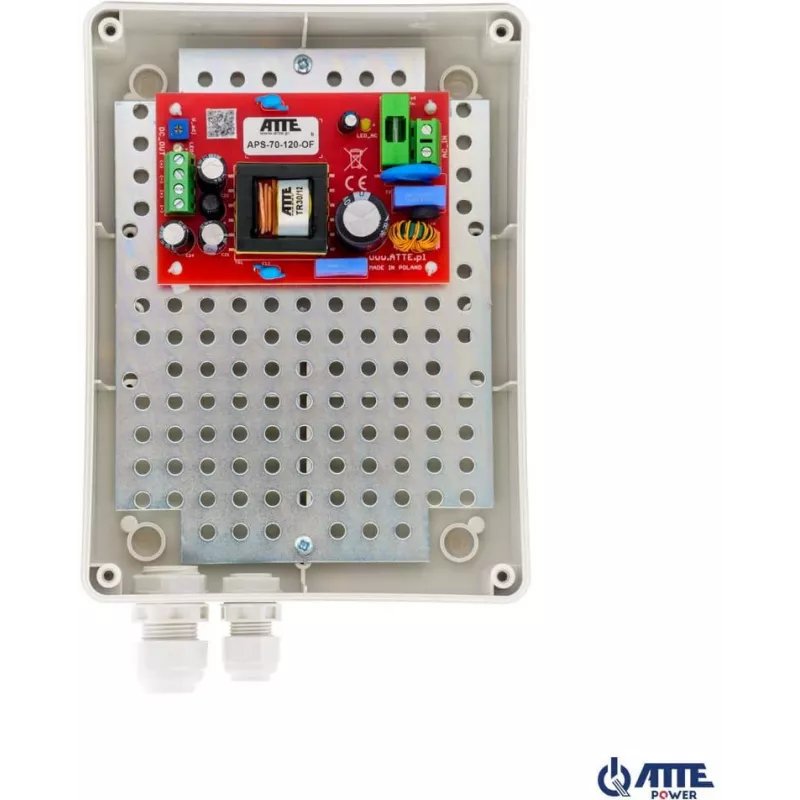

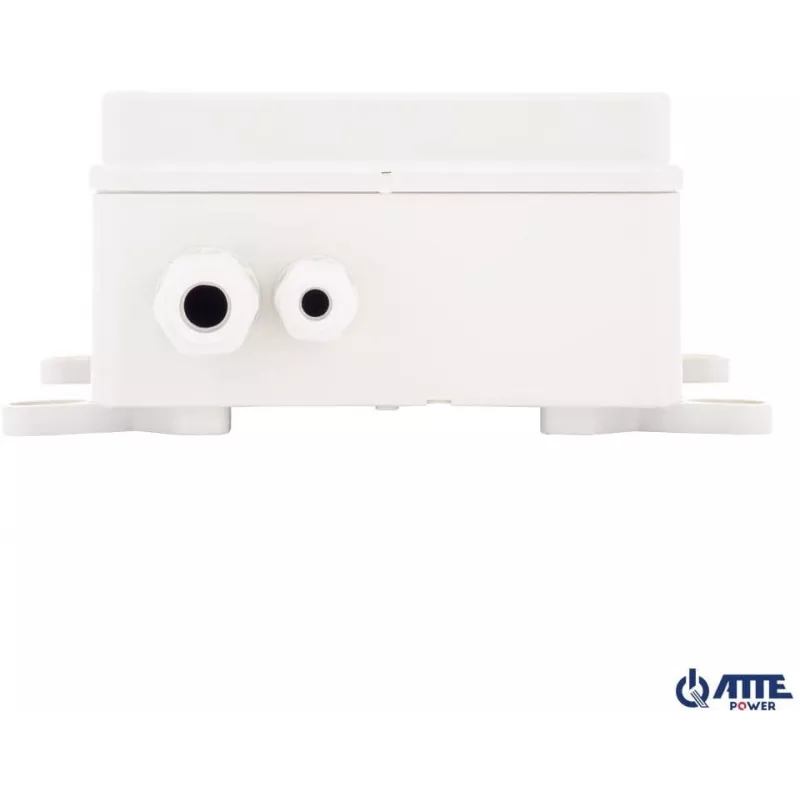

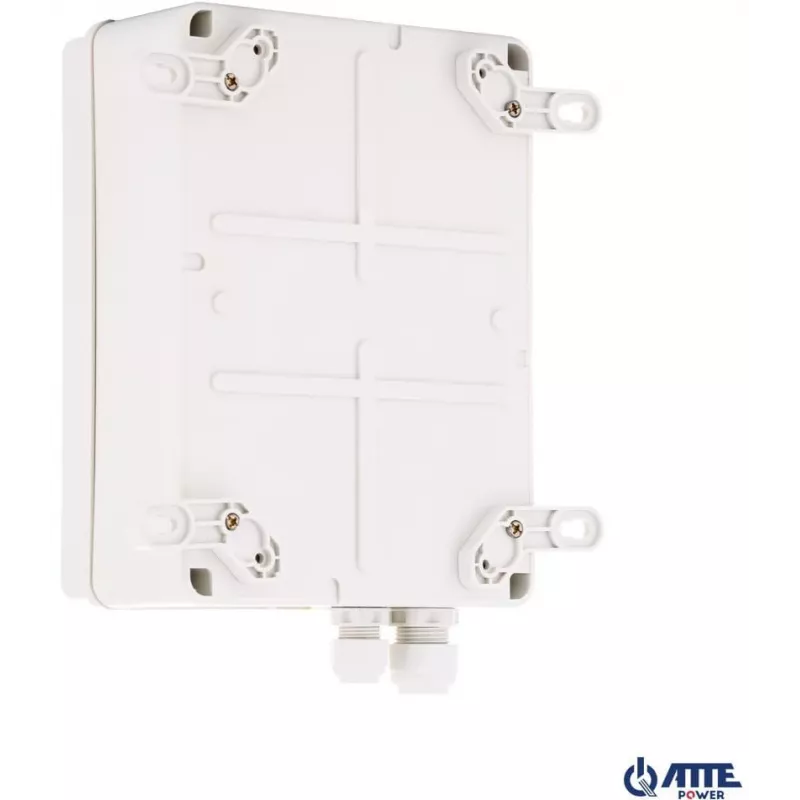

ATTE APS-70-120-M1 τροφοδοτικό SMPS 12V 6A 72W

The ATTE APS-70-120-M1 is a high-performance switched-mode power supply (SMPS) delivering 12V DC at 6A with a total output power of 72W. Designed for industrial and commercial applications, this power supply offers reliable and efficient power conversion with a wide input voltage range of 90-264V AC. Its compact ABS plastic enclosure and surface-mount design make it easy to integrate into various systems.

Advantages

This power supply features high efficiency (>85%) and comprehensive protection including short circuit, overload, and overvoltage protection, ensuring safe and stable operation. The natural convection cooling eliminates the need for fans, reducing noise and maintenance. With CE and RoHS certifications, it meets stringent quality and environmental standards.

Suitable for

• Industrial automation equipment
• LED lighting systems
• Security and surveillance devices
• Telecommunication equipment
• General electronic projects requiring a reliable 12V DC supply

Key specifications

• Output Voltage: 12V DC
• Output Current: 6A
• Output Power: 72W
• Input Voltage: 90-264V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Protection: SCP, OLP, OVP
• Connector Type: Screw Terminal Block (Input and Output)
• Enclosure Material: ABS Plastic
• Operating Temperature: -10°C to +40°C
• Cooling: Natural Convection
• Certifications: CE, RoHS
• Mounting: Surface Mount

Recommendations

For optimal performance, ensure adequate ventilation around the power supply and do not exceed the rated output current. Use appropriate gauge wires for the screw terminal connections. This unit is not suitable for outdoor use unless placed in a weatherproof enclosure.
