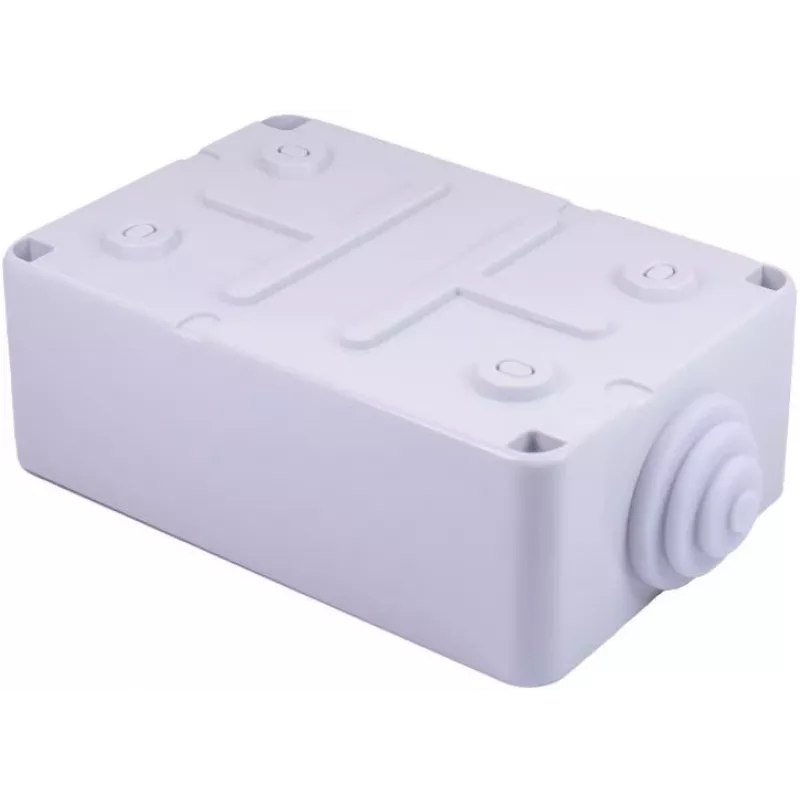

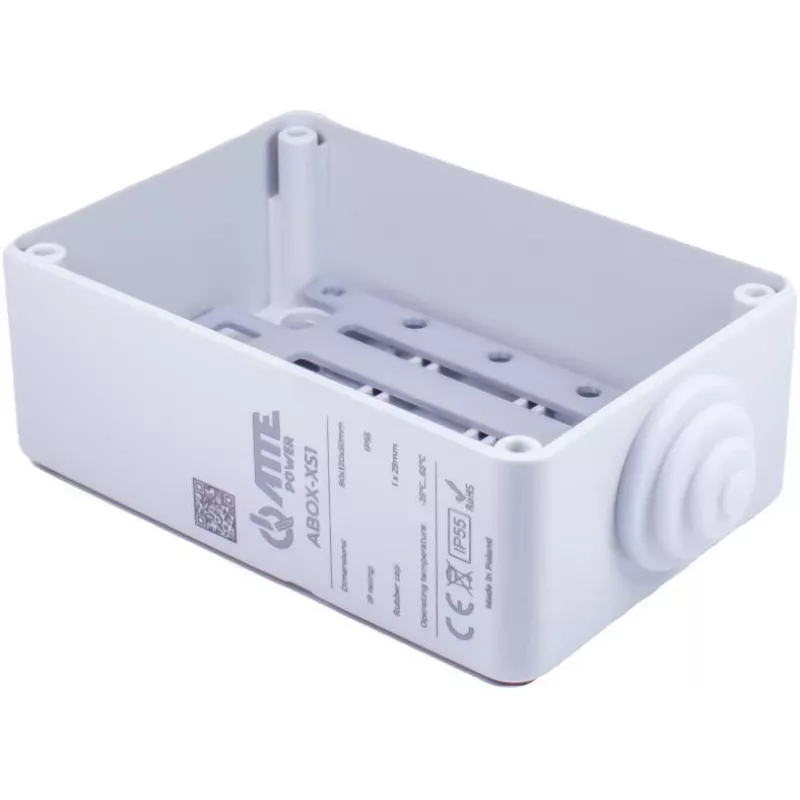

ATTE ABOX-XS1 εξωτερική θήκη IP55 ανοιχτό γκρι

The ATTE ABOX-XS1 is a robust outdoor enclosure designed to protect electrical and electronic equipment in harsh environments. With an IP55 rating and IK07 impact protection, it offers reliable defense against dust, water jets, and mechanical impacts. Made from UV-resistant ABS material in light grey (RAL 7035), this wall-mountable enclosure is ideal for a wide range of outdoor applications.

Advantages

Durable ABS construction with UV resistance ensures long-lasting performance in direct sunlight. The IP55 rating provides protection against dust ingress and low-pressure water jets, while IK07 impact resistance safeguards against accidental knocks. The screw-on lid with polyurethane gasket guarantees a secure seal, and smooth walls allow for custom cable entry drilling.

Suitable for

• Outdoor electrical junction boxes
• Telecommunications equipment protection
• Security system components
• Industrial control devices
• LED lighting drivers

Key specifications

• Ingress Protection: IP55
• Impact Protection: IK07
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External Dimensions (L x W x H): 150 x 110 x 70 mm
• Internal Dimensions (L x W x H): 142 x 102 x 65 mm
• Lid Type: Screw-on (4 screws)
• Gasket Material: Polyurethane
• Mounting Type: Wall Mountable
• Operating Temperature Range: -25°C to +60°C
• Flammability Rating: UL94-HB
• Cable Entry: Smooth walls for custom drilling

Recommendations

For optimal installation, use appropriate wall plugs and screws (not included). Ensure the gasket is properly seated before closing the lid to maintain the IP55 seal. Custom cable entry holes should be drilled carefully to avoid damaging the enclosure.
