ATTE ABOX-L1 κουτί εξωτερικού χώρου IP56 ανοιχτό γκρι

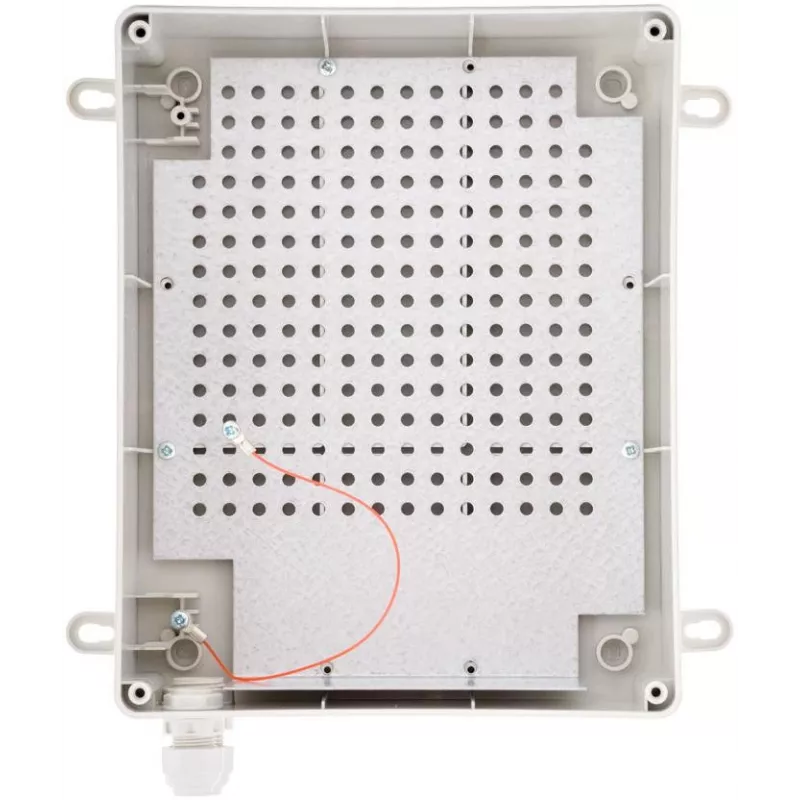

The ATTE ABOX-L1 is a robust hermetic outdoor enclosure designed to protect sensitive electronic equipment in harsh environments. With an IP56 rating and IK07 impact resistance, it offers reliable protection against dust, water jets, and mechanical impacts. The enclosure is made from UV-resistant ABS material in light grey (RAL 7035) and is wall-mountable for flexible installation.

Advantages

High protection class IP56 ensures dust-tightness and protection against powerful water jets. IK07 impact resistance safeguards against vandalism and accidental knocks. UV-resistant ABS material prevents degradation from sunlight, ensuring long-term outdoor use. The silicone gasket provides a reliable seal, while the 4-screw lid fastening ensures secure closure. User-defined cable entry allows customization for various applications.

Suitable for

• CCTV cameras and video surveillance equipment
• Alarm systems and security devices
• Network devices such as switches and routers
• Power supplies and electrical components

Key specifications

• Product Type: Hermetic Outdoor Enclosure
• IP Protection Rating: IP56
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: Light Grey (RAL 7035)
• External Dimensions (L x W x H): 150 x 80 x 200 mm
• Internal Dimensions (L x W x H): 140 x 70 x 190 mm
• Lid Fastening: 4 Screws
• Sealing Method: Silicone Gasket
• Mounting: Wall Mountable
• Operating Temperature Range: -25°C to +70°C
• UV Resistance: Yes
• Impact Resistance: IK07
• Cable Entry: User-defined (no pre-drilled holes)

Recommendations

For optimal installation, ensure proper cable glands are used to maintain the IP56 rating. The enclosure does not include a pre-installed mounting plate; consider using an optional mounting plate or drilling holes as needed. Suitable for both indoor and outdoor use where environmental protection is required.
