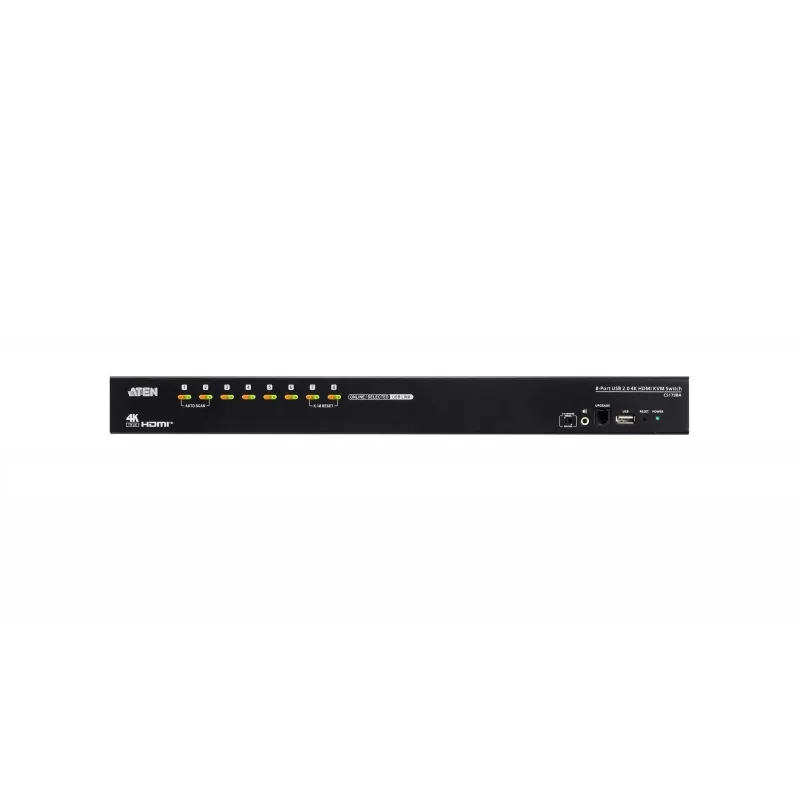

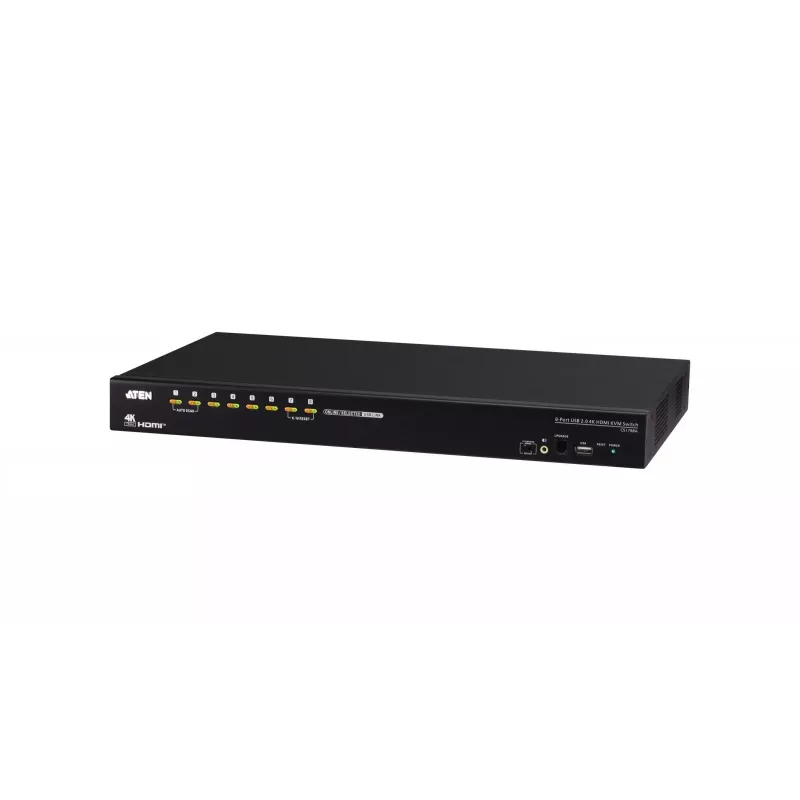

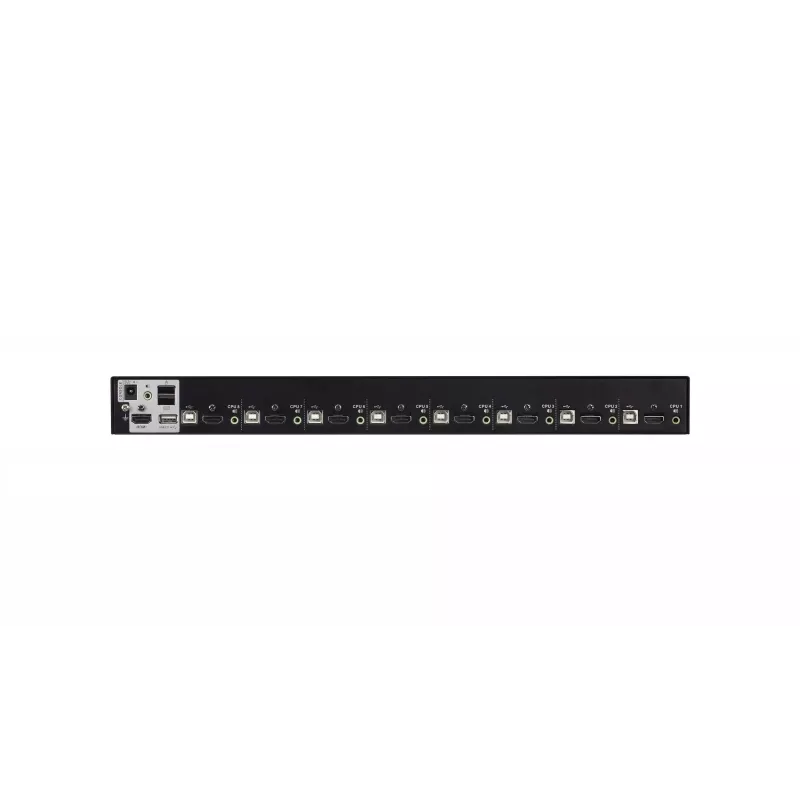

ATEN CS1798A-AT-G 8-Port 4K HDMI KVM Switch, USB 2.0, Ήχος

The ATEN CS1798A is an enterprise-grade KVM switch that provides centralized control of up to 8 HDMI computers from a single console with a USB keyboard, mouse, and HDMI monitor, while maintaining 4K DCI video quality. It supports 3-level cascading to control up to 512 computers and multi-display functionality by stacking up to 8 units for monitoring across up to 8 displays.

Key features

• Centralized 4K DCI control from a single console
• 3-level cascading for scalable system expansion
• Multi-display flexibility for advanced monitoring
• Flexible USB peripheral sharing with independent switching
• Effortless operation and simplified system maintenance
• High-performance video and display capabilities
• Scalable KVM architecture and multi-display expansion
• Flexible switching and control
• USB, audio, and peripheral integration

Specifications

• Brand: ATEN
• MPN: CS1798A
• Supports up to 4096 x 2160 @ 60Hz
• Video DynaSync™
• HDCP 2.2 compliant
• One USB console controls up to 8 HDMI-interfaced computers and two additional USB 2.0 peripheral devices
• Cascadable to three levels – controls up to 512 computers
• Multi-Display feature – stacks up to 8 CS1798A units and displays video across up to 8 monitors (dual display / triple display / quad display / multi-display)
• Supports hot-plugging
• Computer selection via front panel pushbuttons, hotkeys, and multilingual OSD (On-Screen Display)
• Independent switching of KVM and USB peripheral focus
• Console mouse port emulation / bypass supports most mouse drivers and multifunction mice
• Complete keyboard emulation ensures error-free booting
• Auto Scan Mode for continuous monitoring of connected computers
• Broadcast mode – performs simultaneous operations across selected computers
• Built-in 2-port USB 2.0 hub
• Audio enabled
