ATEN 1U Short Depth USB VGA Single Rail LCD

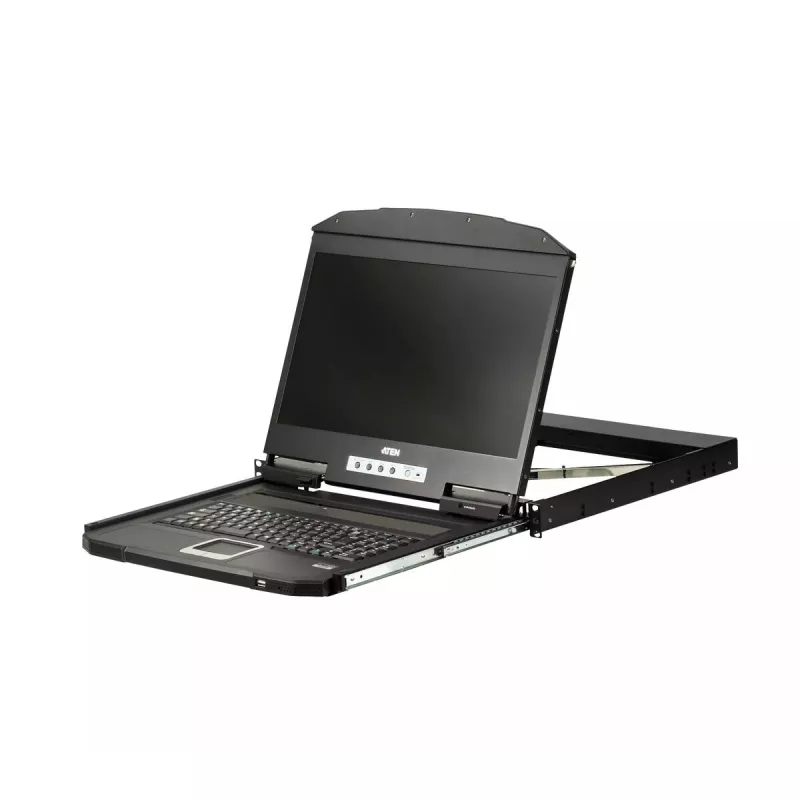

The ATEN CL3100NX 18.5" USB VGA LCD Console is a 1U, short-depth rack console that combines an LED-backlit widescreen monitor, integrated keyboard and touchpad into a single sliding unit. Designed to fit all 19" equipment cabinets — including shallow racks — the CL3100NX is suitable for space-constrained environments such as broadcast OB vans and compact control rooms. It provides VGA video connectivity, USB ports for keyboard and mouse, and two mini stereo audio jacks.

Advantages

The CL3100NX saves rack space with a short-depth 1U form factor while providing a full 18.5" widescreen display (1366 x 768, 250 cd/m²). Integrated USB keyboard and touchpad simplify operation, and front- and rear-panel ports allow connection of an external console or mouse for flexible management. The unit supports universal AC input (100–240 V) and meets UL/CAN/CSA safety standards.

Suitable for

• Shallow server racks and 19" equipment cabinets
• Broadcast OB vans and mobile streaming applications
• Compact control rooms and limited-space network closets
• Single-computer KVM setups requiring VGA and USB connectivity

Key specifications

• Display: 18.5" LED-backlit widescreen, 1366 x 768 resolution
• Brightness: 250 cd/m²
• Video port: VGA
• Keyboard / Mouse ports: USB
• Audio: 2 × mini stereo ports
• Form factor: 1U, short-depth rack console
• Dimensions (W×H×D): 477 mm × 42.8 mm × 480.6 mm
• Weight: 9.07 kg
• Power: AC 100–240 V input
• Certifications: UL 60950-1, CAN/CSA

How to use

Install the CL3100NX into a 19" rack using the supplied mounting hardware according to rack depth. Connect the console VGA cable to the server or KVM switch VGA port and the USB keyboard/mouse cables to the corresponding USB ports. Optionally connect external speakers to the mini stereo jacks. Power the unit from an AC source (100–240 V). Use the integrated keyboard and touchpad for local control, or connect an external console via the rear-panel ports when remote or secondary access is required.

Recommendations

For reliable operation in broadcast and critical environments, mount the console in a properly ventilated rack, secure all cable connections, and use the external console ports if multiple operators or remote access is needed. Verify rack depth and clearances before installation.
