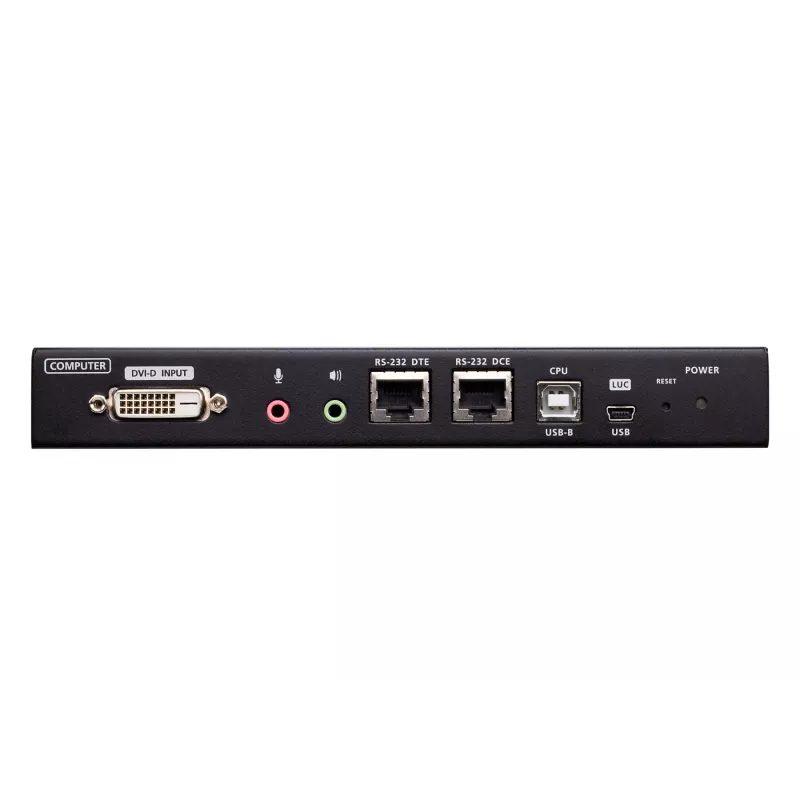

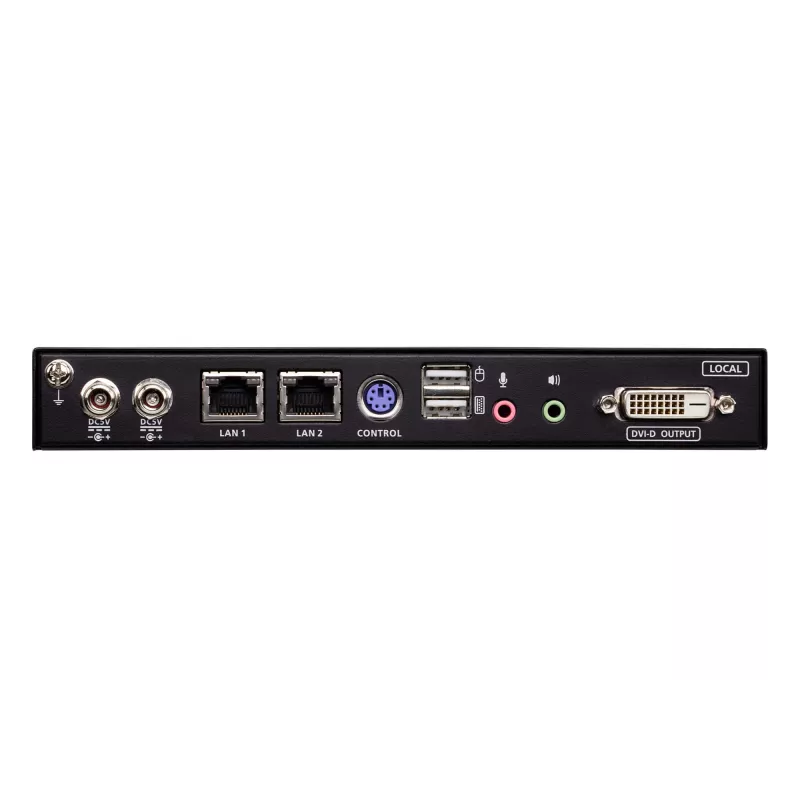

ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch

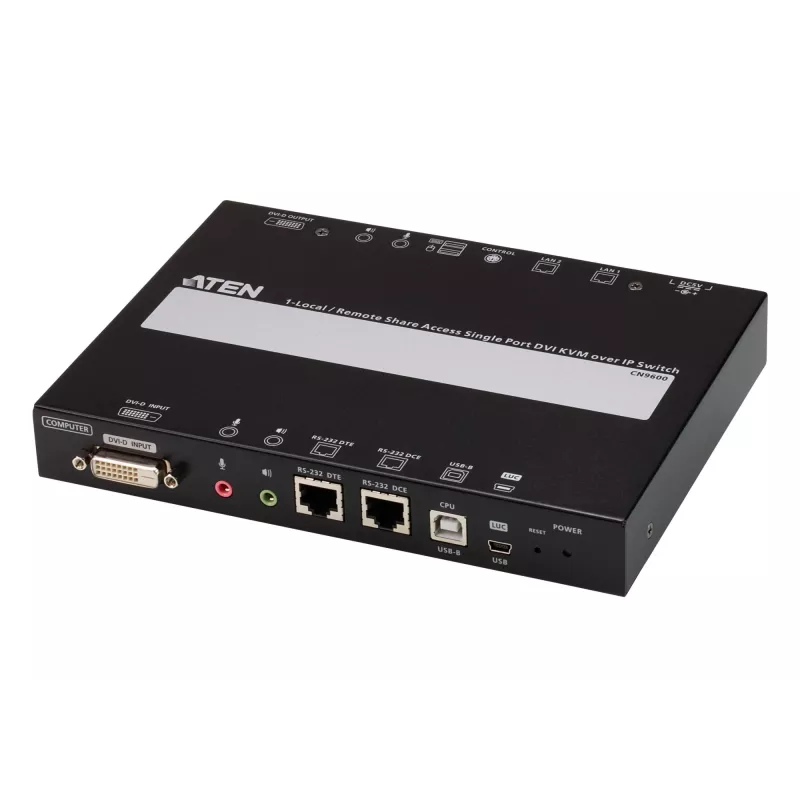

The CN9600 DVI KVM over IP Switch provides local and remote access to a single DVI-enabled computer or workstation. Designed to work with compatible ATEN DVI KVM switches and LCD consoles, the CN9600 transmits digital video, audio and virtual media over IP so administrators can control a system remotely or from a connected local console. The unit is compact, housed in a metal casing, and supports USB keyboard and mouse connections with a maximum video resolution of 1920 x 1200 at 60 Hz. The package includes the CN9600 unit, a DVI-D/USB/audio KVM cable, a USB cable, a power adapter, a mounting kit and user instructions.

Advantages

The CN9600 delivers secure and efficient remote management of a single DVI-equipped computer by combining digital video, audio and virtual media support in one device. Its compatibility with ATEN DVI KVM switches and LCD consoles enables flexible deployment in existing KVM environments. Metal housing and RoHS compliance add durability and environmental conformity, while the device’s low power consumption and standard 5 V DC power supply simplify installation and operation.

Suitable for

• Remote management of a single workstation or server with DVI output
• Integration with ATEN DVI KVM switches (e.g., CS1768) or DVI LCD consoles (e.g., CL3800)
• Environments requiring digital video and audio over IP with virtual media support

Key specifications

• Model: CN9600 DVI KVM over IP Switch (MPN: CN9600-AT-G, EAN: 4719264649271)
• Video: DVI-D, up to 1920 x 1200 @ 60 Hz
• Local/remote: 1 local / 1 remote share access (single port)
• Interfaces: USB for keyboard/mouse, audio support, virtual media over IP
• Power: 5 V DC, 5.55 W
• Construction: Metal casing; colour: Black; Weight: 1.24 kg
• Compliance: RoHS
• Box contents: CN9600 unit, 1x DVI-D/USB/audio KVM cable (1.8 m), 1x USB cable (1.8 m), 1x power adapter, 1x mounting kit, 1x user instructions

How to use

Connect the CN9600 to the target computer using the provided DVI-D/USB/audio KVM cable and plug the USB cable if required for additional USB peripheral support. Attach the power adapter and verify the device powers on. Integrate the CN9600 with a compatible ATEN DVI KVM switch or LCD console if local switching is needed. Configure network settings to enable remote IP access, then use the appropriate remote client or web interface to log in and control video, audio and virtual media functions.

Recommendations

For reliable performance, use the included KVM and USB cables, ensure the connected computer’s DVI output and USB devices are supported, and place the CN9600 in a well-ventilated area. Keep firmware updated and follow ATEN configuration guides when integrating with other KVM devices to ensure compatibility and secure remote access.
