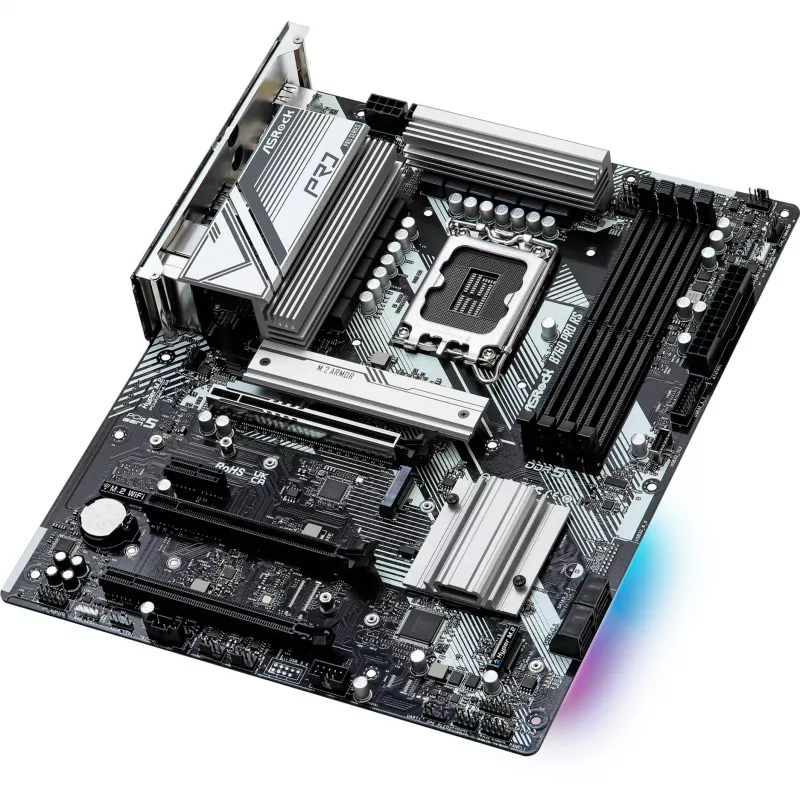

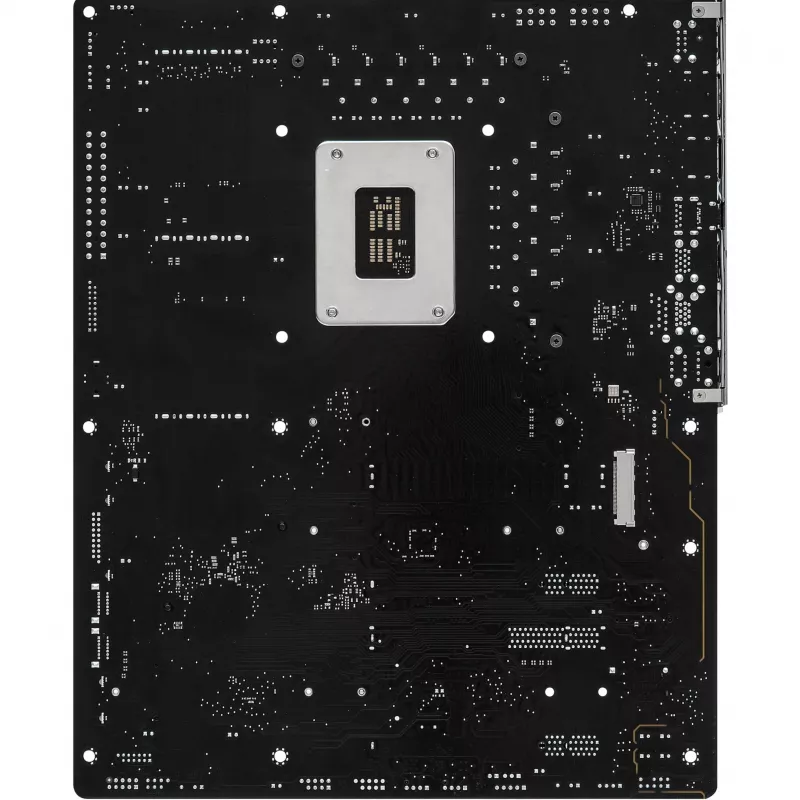

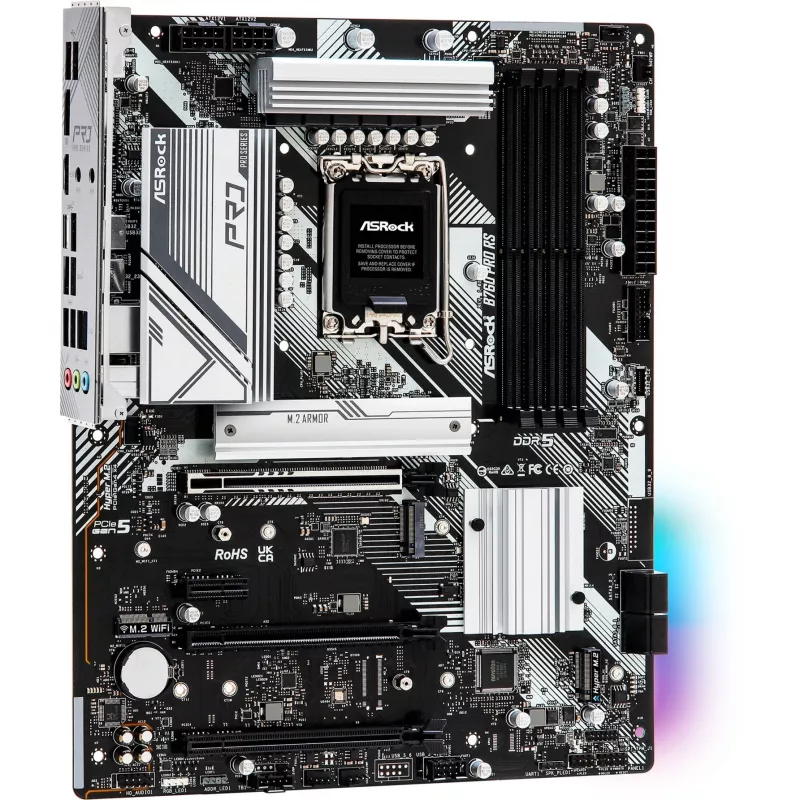

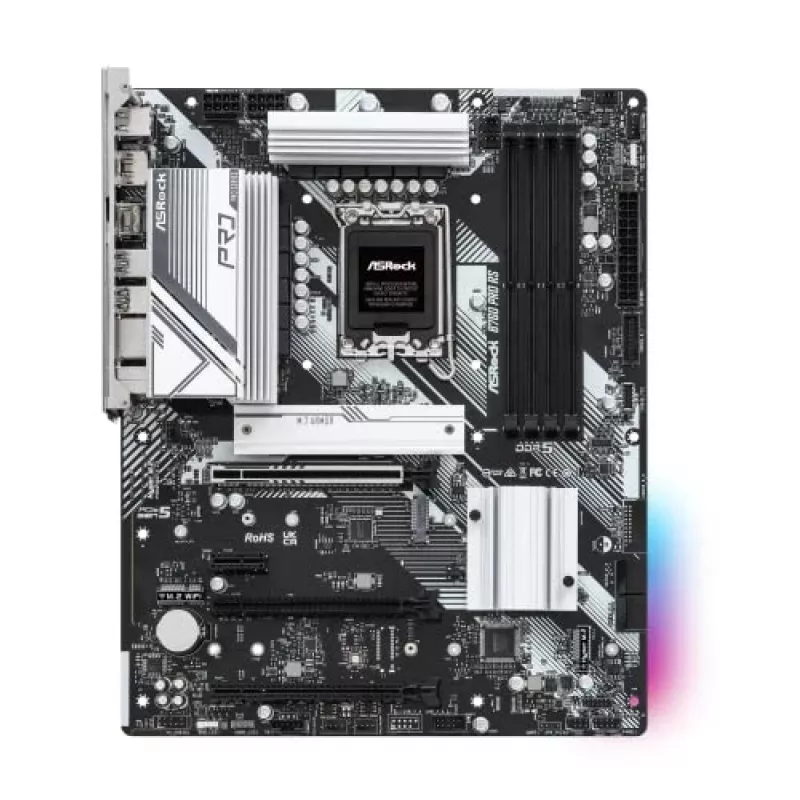

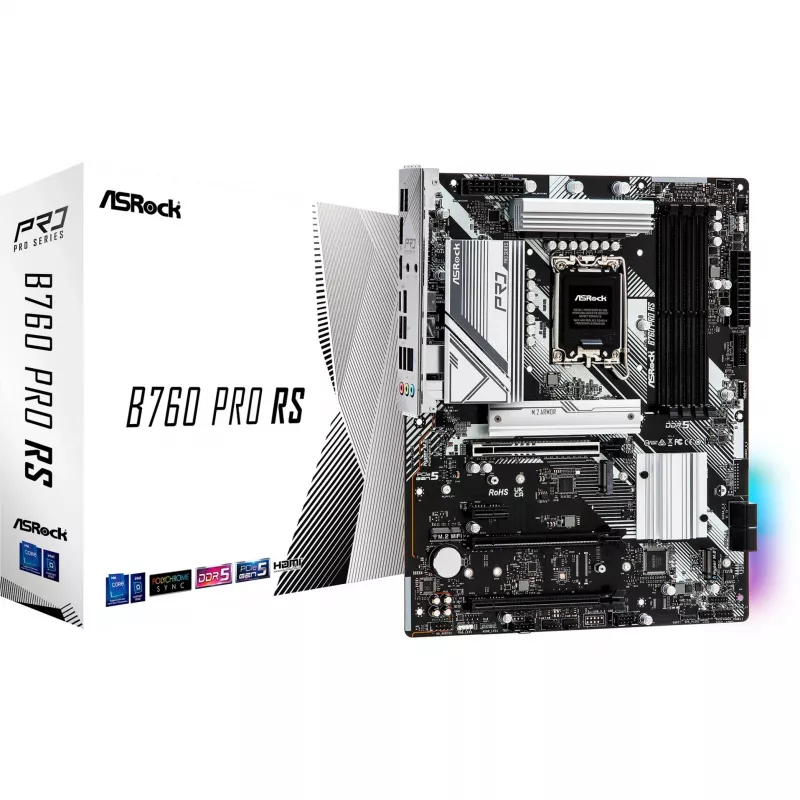

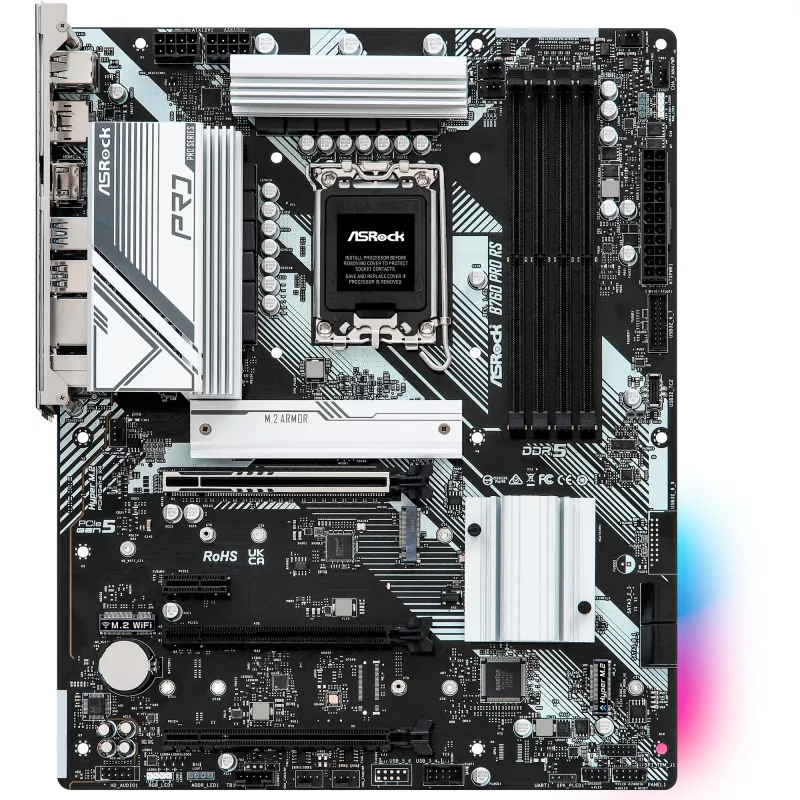

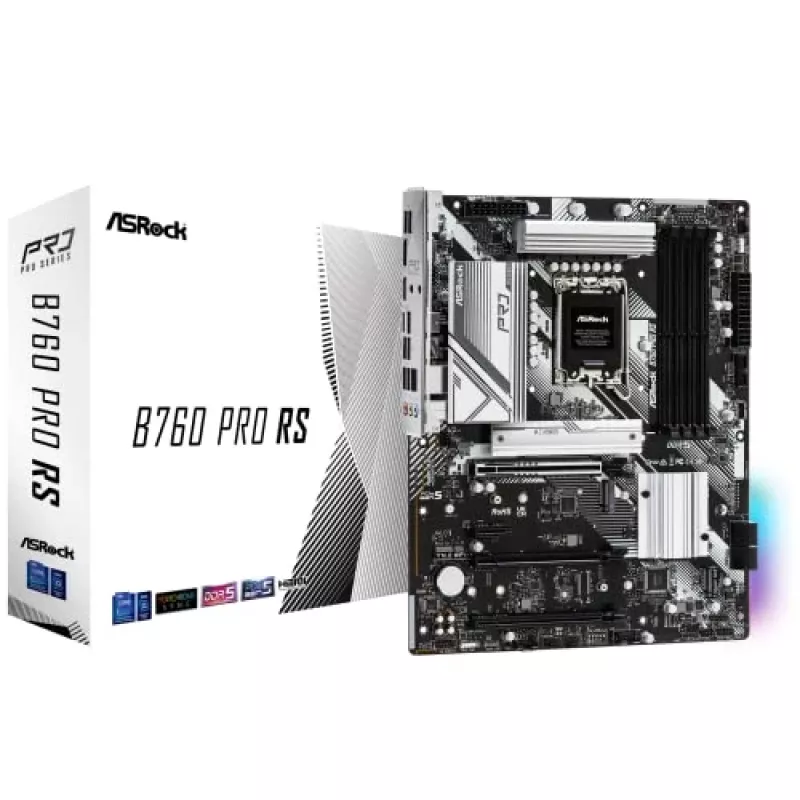

ASRock B760 Pro RS DDR5 ATX Μητρική

The ASRock B760 Pro RS DDR5 ATX Motherboard is engineered for Intel 13th and 12th Gen Core processors (LGA1700), delivering robust performance with a 10+1+1 Power Phase design and Dr.MOS for VCore+GT. It supports high-speed DDR5 memory up to 7200MHz (OC) and features a comprehensive connectivity suite, including PCIe 5.0, dual Hyper M.2 slots, and Dragon 2.5G LAN, making it ideal for gaming and productivity builds.

Key features

• Supports Intel 13th and 12th Gen Core processors (LGA1700) with 10+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMM slots, supporting up to 7200MHz (OC) with a maximum capacity of 192GB
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, and 1 x PCIe 3.0 x1 slots
• 2 x Hyper M.2 (PCIe Gen4x4) and 1 x M.2 (PCIe Gen4x2) for high-speed storage; 4 x SATA3 ports

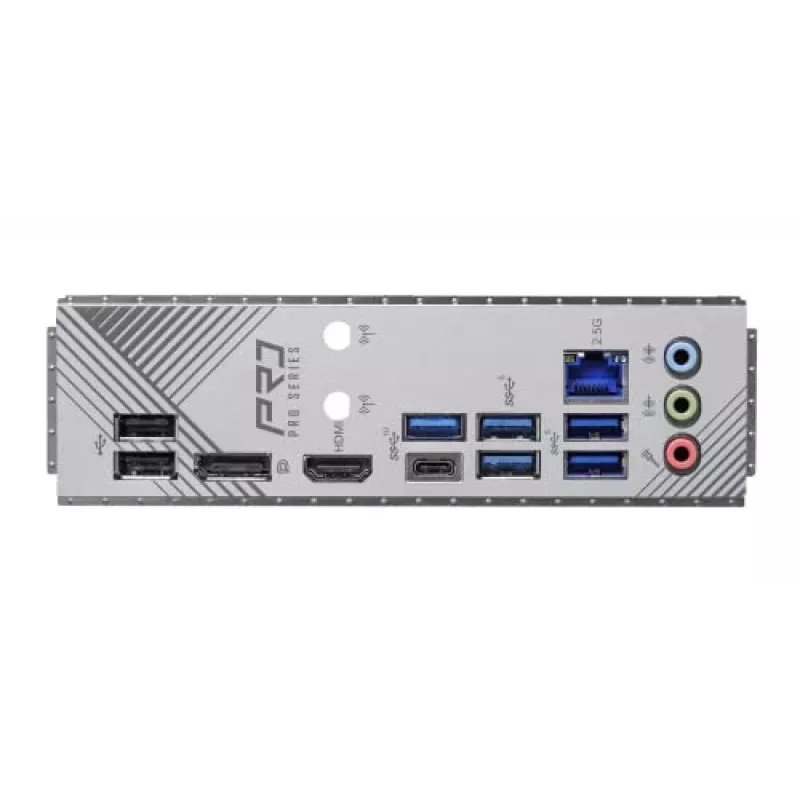

• Rear I/O: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 2 x USB 2.0; front: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 2 x USB 2.0
• Graphics outputs: HDMI, DisplayPort, and eDP; Realtek ALC897 7.1 CH HD Audio with Nahimic Audio
• Dragon 2.5G LAN (Realtek RTL8125-BG) and M.2 Key E slot for WiFi
