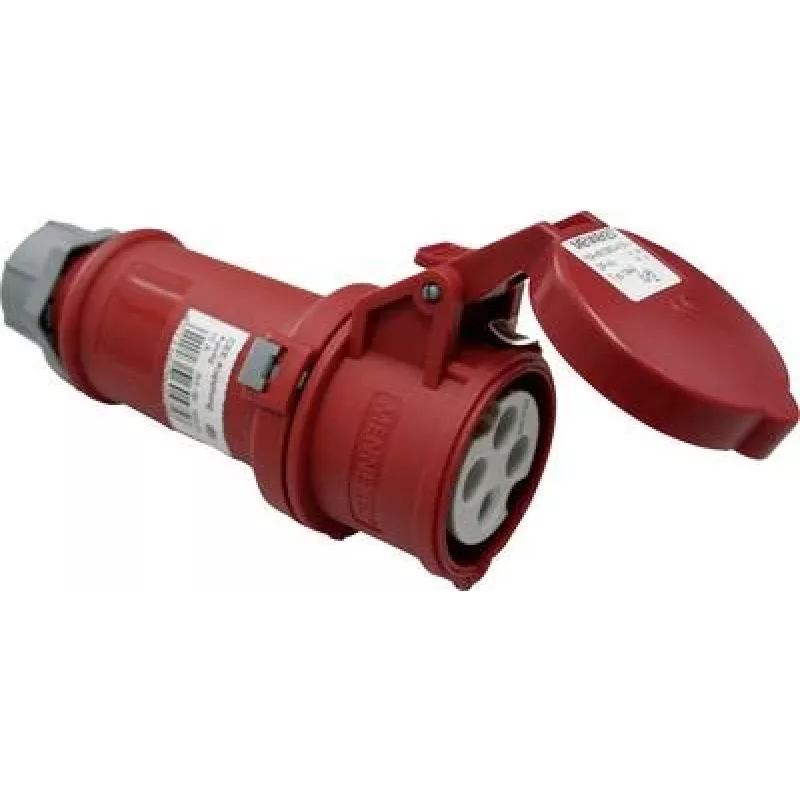

AS SCHWABE 60576 υποδοχή θηλυκή CEE 32 A 4-πολική 400 V IP44

On construction sites, in agriculture, and in industrial facilities, reliable power distribution is essential. The AS SCHWABE 60576 CEE coupler provides a robust connection for 400 V three-phase circuits, rated at 32 A. Its 4-pole (3P+E) configuration with 6h earth contact position suits standard industrial sockets. The splash-proof IP44 housing protects against water spray, making it suitable for outdoor use. Screw terminals accept cables from 2.5 to 10 mm², ensuring a secure connection.

Key specifications

• Current rating: 32 A
• Voltage rating: 400 V
• Number of poles: 4-pole (3P+E)
• IP protection: IP44
• Earth contact position: 6h
• Connection: Screw terminals
• Cable cross-section: 2.5 - 10 mm²
• Housing material: Polyamide (PA6)
• Colour: Red / Grey

Why choose it

This coupler is built for demanding environments. The polyamide housing withstands impacts and temperature extremes from -25°C to +40°C. Brass contacts ensure low resistance and long-term reliability. It complies with IEC 60309, guaranteeing compatibility with standard CEE plugs.

Ideal use cases

• Industrial machinery connections
• Construction site power distribution
• Agricultural equipment
• Commercial kitchens and workshops

Good to know

The coupler is designed for 50/60 Hz systems. Its red/grey colour coding indicates a 400 V rating, preventing accidental mismatching with lower voltage systems.
