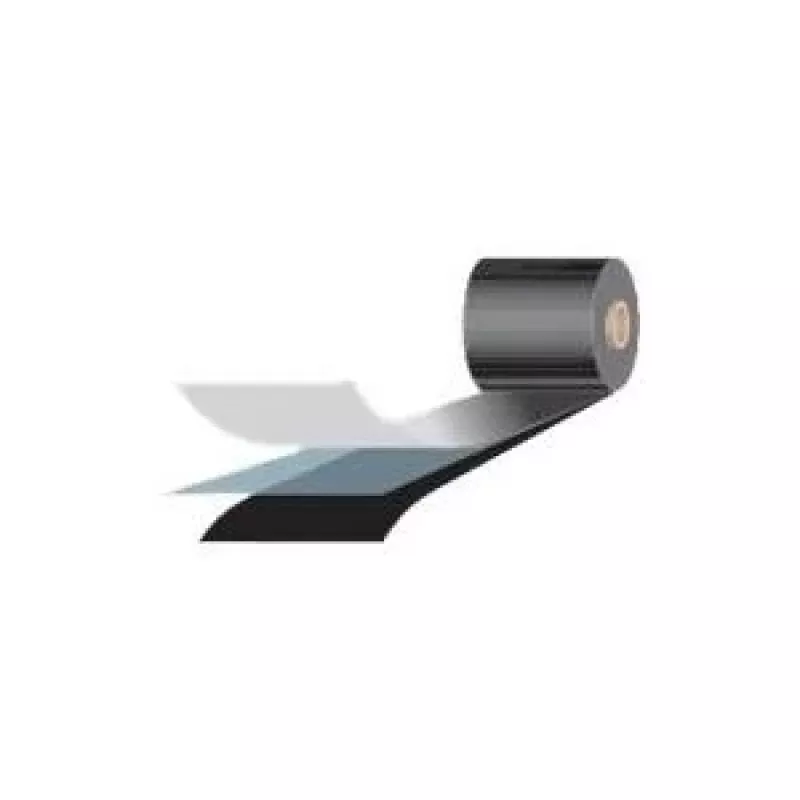

Armor AXR 7+ - 50 mm x 300 m - Μελανοταινία

Industrial labeling often fails when exposed to chemicals, abrasion, or high temperatures—standard ribbons smear, fade, or peel, compromising traceability and safety. The ARMOR AXR 7+ resin ribbon solves this by delivering exceptional durability on a wide range of synthetic and coated materials. With a 50 mm width and 300 m length, it is engineered for high-volume thermal transfer printing where longevity and legibility are non-negotiable.

Who is it for

This ribbon is ideal for manufacturers, logistics providers, and laboratories that print barcodes, serial plates, or warning labels on polypropylene, polyethylene, PET, PVC, or synthetic papers. It suits automotive, electronics, chemical, healthcare, and outdoor applications where labels must withstand harsh environments.

Main features

• Premium resin formulation for maximum resistance to scratches, smudges, and chemicals.
• Heat resistance up to 180°C (356°F) for high-temperature processes.
• Ink-out (coated side out) orientation for flat-head thermal transfer printers.
• 1-inch core diameter (25.4 mm) for easy installation.
• Patented backcoating protects the printhead and extends its life.
• High print speed capability up to 250 mm/s (10 ips) without loss of quality.
• Compliant with RoHS, REACH, and halogen-free standards.

Specifications

• Ribbon type: Resin
• Ribbon series: ARMOR AXR 7+
• Print technology: Thermal transfer
• Ribbon width: 50 mm
• Ribbon length: 300 m
• Ink colour: Black
• Ink side: Ink out (coated side out)
• Core diameter: 1 inch (25.4 mm)
• Melting point: 80°C (176°F)
• Recommended substrates: PP, PE, PET, PVC, synthetic papers, coated papers
• Storage conditions: 5-35°C (41-95°F), 30-80% relative humidity
• Certifications: RoHS, REACH, halogen-free, heavy metal free

Tips

For optimal results, pair the AXR 7+ with a compatible resin ribbon and ensure your printer's heat settings are calibrated for resin media. Store the ribbon in its original packaging in a cool, dry place away from direct sunlight. Always test on your specific substrate before full production runs.
