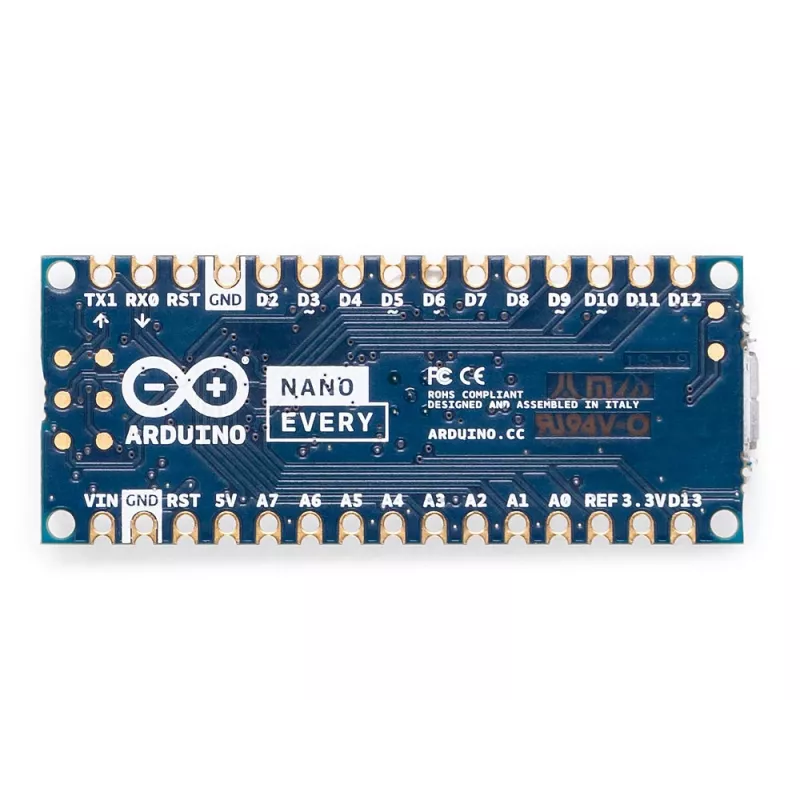

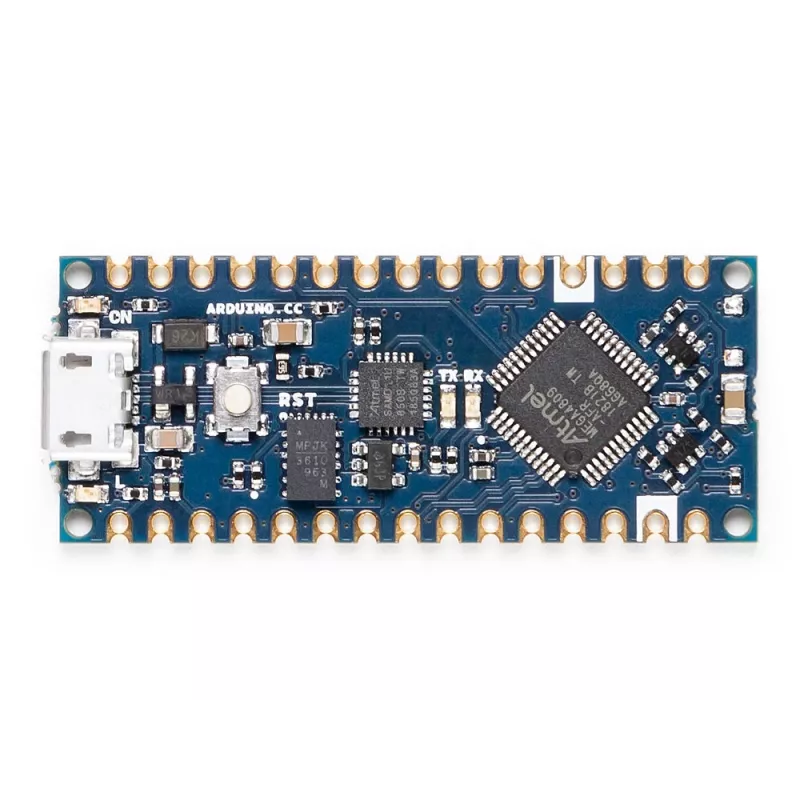

Arduino Nano Every Board – Συσκευασία 6 τεμ. (ABX00028-6P)

Educators running electronics workshops and makers prototyping multi-node projects often need several identical microcontrollers. The Arduino Nano Every pack of 6 provides six boards with the ATmega4809, each in the compact 45 x 18 mm Nano form factor, ready for breadboard work or embedded installations.

Key specifications

• Microcontroller: ATmega4809
• Operating voltage: 5V
• Input voltage (VIN): 7-21V
• Digital I/O pins: 21
• PWM pins: 21
• Analog input pins: 8 (10-bit)
• DC current per I/O pin: 20 mA
• Flash memory: 48 KB
• SRAM: 6 KB
• EEPROM: 256 bytes
• Clock speed: 16 MHz
• USB connector: Micro-USB
• Communication interfaces: UART, SPI, I2C
• USB-to-serial converter: Microchip SAMD11
• Processor architecture: AVR

Why choose it

The Nano Every offers the familiar Nano footprint with a more modern microcontroller. The pack of six is convenient for classrooms, workshops, or projects that require multiple nodes. Each board can be powered via USB or an external VIN source, and the 5V logic level is compatible with a wide range of sensors and modules.

Ideal use cases

• Teaching electronics and programming in classrooms
• Prototyping multi-sensor or multi-actuator systems
• Building small embedded devices with a breadboard-friendly form factor
• Developing projects that need several independent controllers

Good to know

The pack contains six identical Arduino Nano Every boards. The boards are based on the AVR architecture and are programmed via the Arduino IDE. The Micro-USB connector is used for programming and power.
