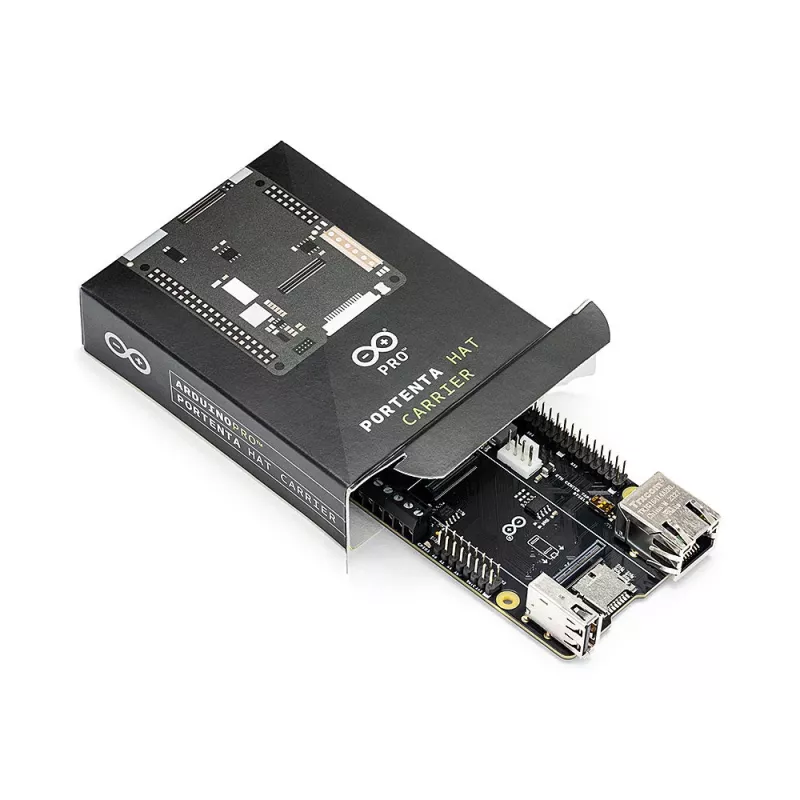

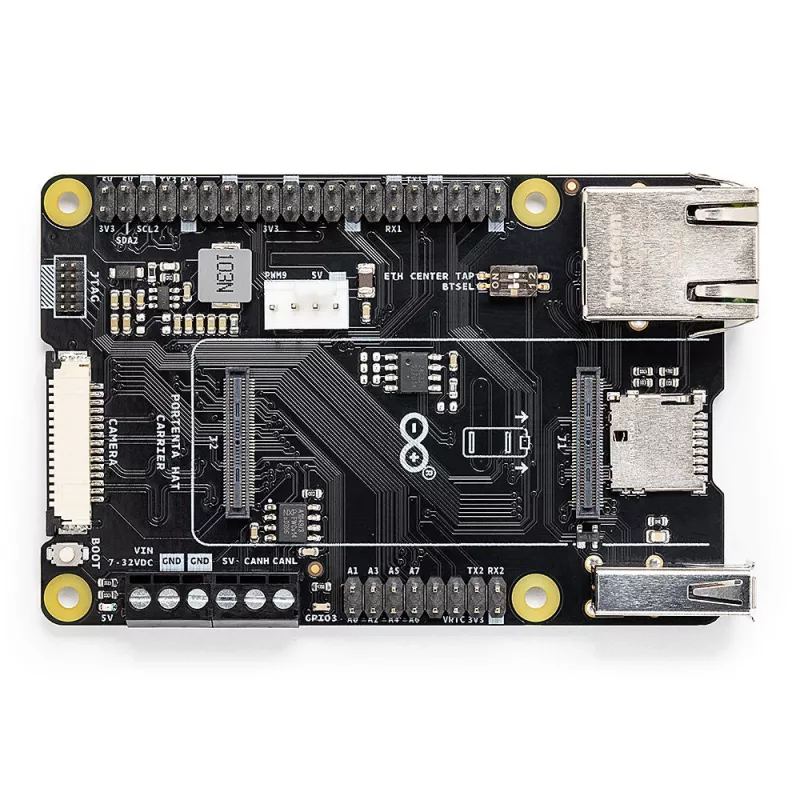

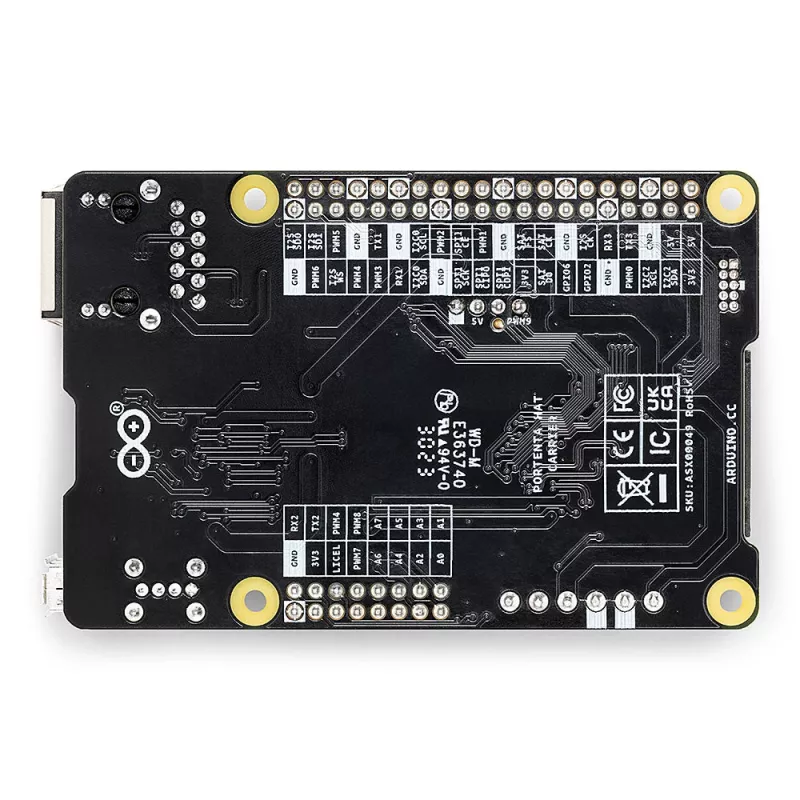

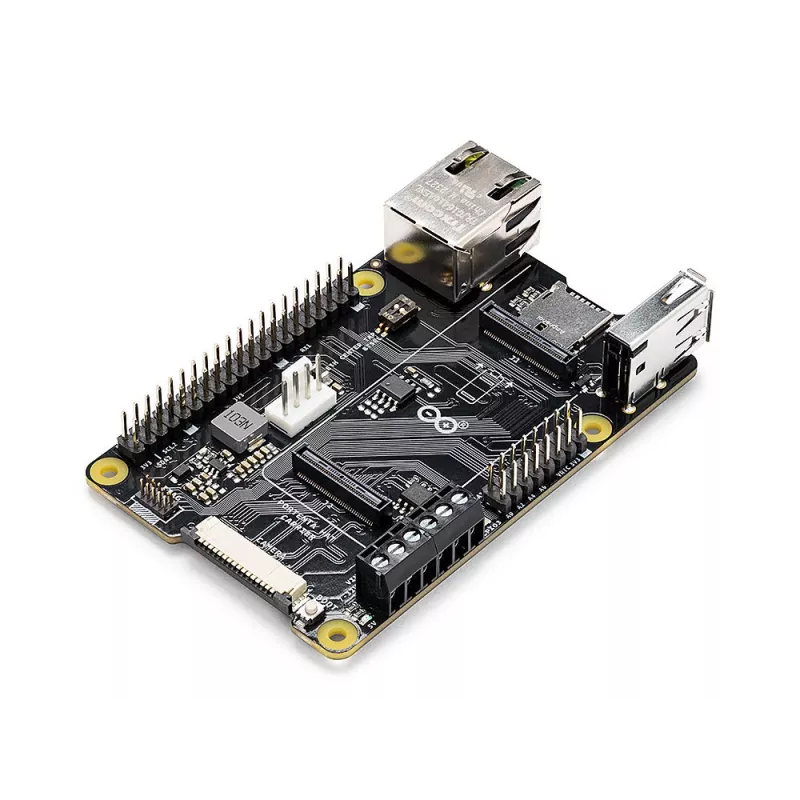

Arduino ASX00049 Hat Carrier για μονάδες Portenta

The Arduino ASX00049 Hat Carrier expands Portenta H7, X8, and C33 modules with Ethernet, USB, display, camera, audio, and battery management, making it a versatile carrier board for industrial and prototyping applications.

Advantages

This carrier board provides a comprehensive set of interfaces, including 10/100 Ethernet, USB-C and USB-A, DSI display, CSI camera, microSD storage, and a 3.5mm audio jack. It supports a wide 6-24V DC input range and includes a Li-Po battery connector with charging circuit, enabling portable and remote deployments. The standard Arduino MKR pinout ensures compatibility with existing shields.

Suitable for

• Industrial IoT gateways and edge devices
• Prototyping with Portenta modules
• Applications requiring Ethernet, camera, or display connectivity
• Battery-powered projects needing onboard charging

Key specifications

• Module compatibility: Arduino Portenta H7, Portenta X8, Portenta C33
• Ethernet: 1x RJ45 (10/100 Mbps)
• USB: 1x USB-C (Host/Device), 1x USB-A (Host)
• Display interface: 1x DSI
• Camera interface: 1x CSI
• Storage: 1x MicroSD card slot
• Audio: 1x 3.5mm audio jack
• Debugging: 1x JTAG connector
• Power input: 5V via USB-C, 6-24V external DC
• Battery: Li-Po connector with charging circuit
• Fan connector: Yes
• GPIO headers: Standard Arduino MKR pinout
• Operating temperature: -40 to 85 °C

Recommendations

Ideal for developers needing a robust carrier board to unlock the full potential of Portenta modules in connected and multimedia projects.
