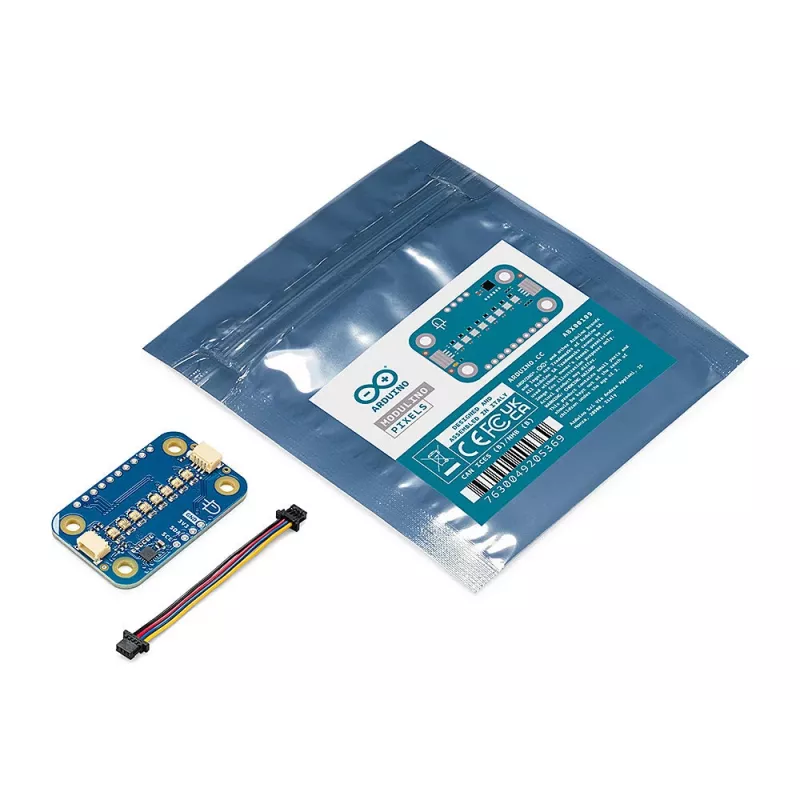

Arduino ABX00109 Modulino Pixels μονάδα οδήγησης διευθυνσιοδοτούμενων RGB LED

Drive WS2812B-compatible addressable RGB LEDs with the Arduino Modulino Pixels module, delivering 24-bit colour depth and smooth animations via a single-wire protocol.

Overview

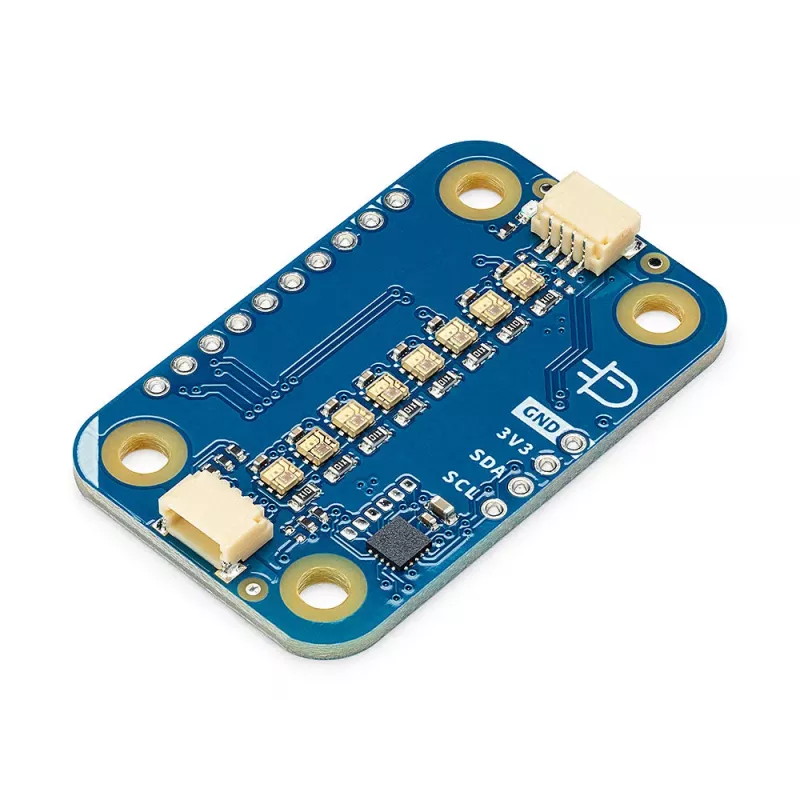

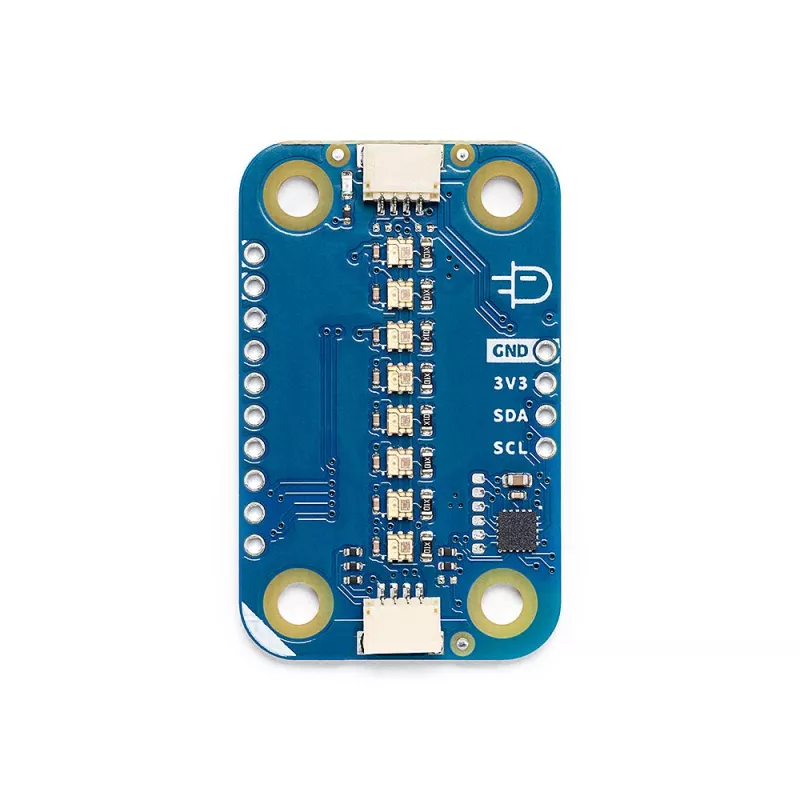

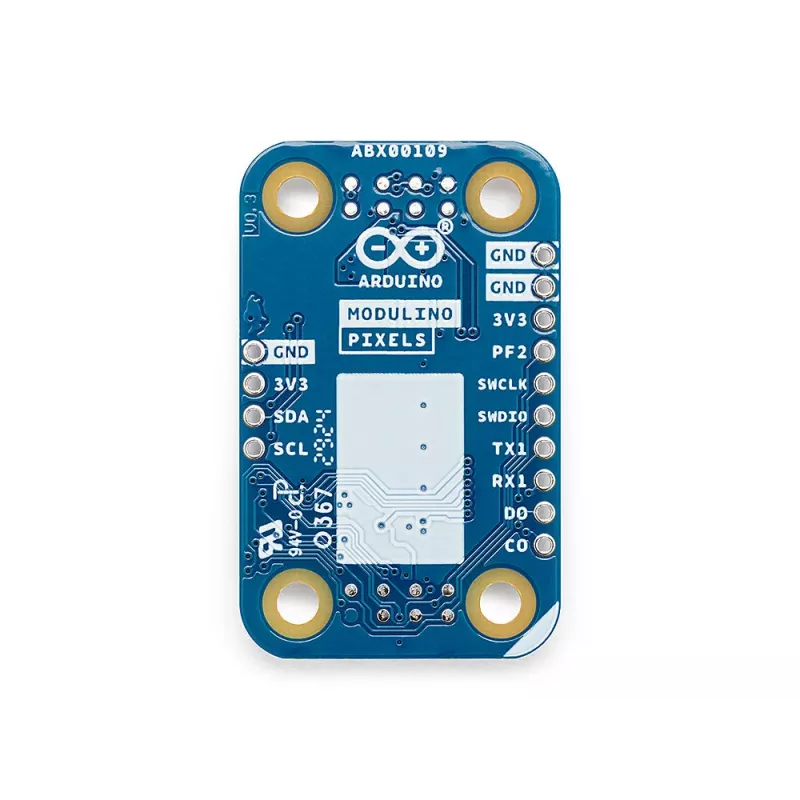

The Arduino Modulino Pixels (ABX00109) is a compact expansion module for the Modulino platform, designed to control addressable RGB LED strips such as NeoPixel. It connects directly to a Modulino baseboard through the standard connector and provides a 3-pin header (Data, VCC, GND) for the LED strip. The module operates at 3.3V logic and is powered via the baseboard, making it ideal for visual indicators, lighting effects, and educational projects.

What stands out

• Supports WS2812B-compatible LEDs (e.g., NeoPixel) for vibrant, individually addressable lighting.
• 24-bit RGB colour depth (8 bits per channel) enables millions of colours.
• High-speed single-wire data transfer ensures smooth animations without flicker.
• Integrated ESD protection safeguards the module during handling.
• Plug-and-play with Arduino Modulino baseboard—no soldering required.

Technical details

• Product type: Modulino expansion module
• Function: Addressable RGB LED driver
• Compatible LED type: WS2812B-compatible (e.g., NeoPixel)
• Interface to host: Modulino standard connector
• Output interface: 3-pin header (Data, VCC, GND)
• Logic voltage: 3.3V
• Power supply: Via Modulino baseboard
• Max number of pixels: Software-defined, typically hundreds
• Control protocol: Single-wire (e.g., WS2812)
• Libraries supported: Adafruit NeoPixel Library compatible
• Application: Visual indicators, lighting effects, educational projects
• Form factor: Compact Modulino module
• Colour depth: 24-bit RGB (8 bits per channel)
• Operating temperature: 0°C to 70°C
• Included components: 1x Modulino Pixels module
• Mounting: Plugs directly into Modulino baseboard
• Data rate: High-speed data transfer for smooth animations
• Power consumption (module only): Low
• ESD protection: Integrated

Our verdict

The Arduino Modulino Pixels module is a straightforward and reliable way to add addressable RGB lighting to your Modulino projects. Its compatibility with the popular NeoPixel ecosystem and integrated protection make it a solid choice for both beginners and experienced makers.
