APC Smart-UPS On-Line SRT μπαταρία για 5/6kVA Extended-Runtime μοντέλο 192V

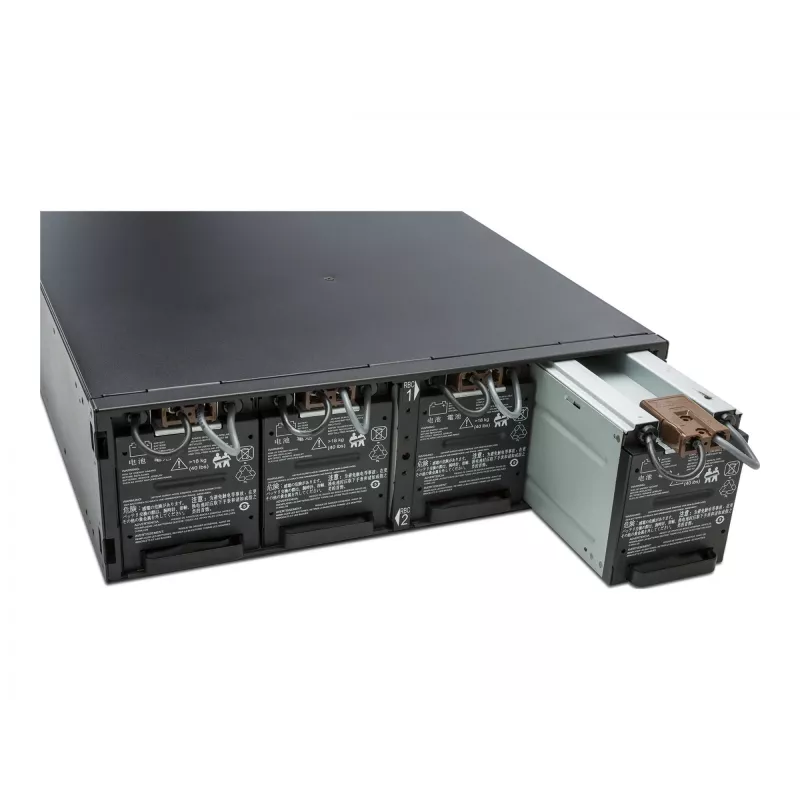

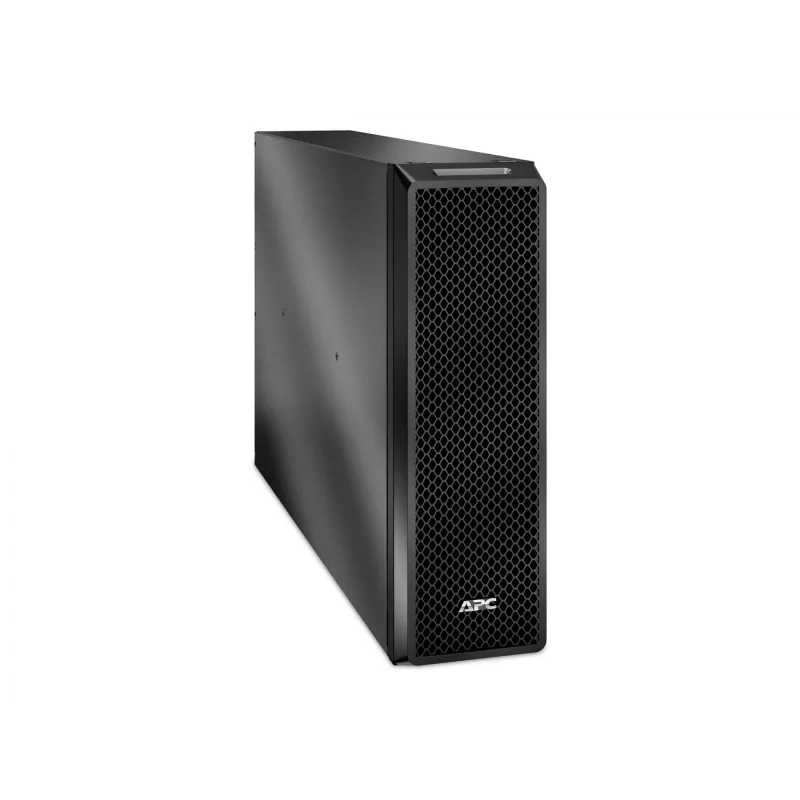

The APC Smart-UPS On-Line SRT 192V battery pack provides extended runtime for SRT on-line UPS systems used in mission-critical applications. This 192V lead‑acid battery pack is compatible with 5 kVA and 6 kVA SRT Smart-UPS extended runtime models and includes embedded monitoring at the cell, module, and cabinet levels to report battery runtime and health. The unit is designed for rackmount installation, measures 130 mm (width) x 683 mm (depth) x 432 mm (height) and weighs 91.0 kg. It is RoHS compliant and supplied with a two-year warranty.

Advantages

The battery pack extends UPS runtime for uninterrupted operation during power outages and supports detailed health monitoring to aid preventive maintenance. Its rackmount form factor and compatibility with specific 5 kVA and 6 kVA SRT models simplify integration into existing infrastructure. The lead‑acid chemistry provides a proven, widely supported energy storage solution with a two-year manufacturer warranty.

Suitable for

• Data center racks and server rooms requiring extended UPS runtime
• Mission-critical IT equipment protected by 5 kVA or 6 kVA APC SRT Smart-UPS
• Telecommunications cabinets and network infrastructure

Key specifications

• Model: SRT192BP (APC Smart-UPS On-Line SRT 192V)
• Battery type: Lead‑acid
• Voltage: 192 V
• Compatibility: 5 kVA / 6 kVA SRT Smart-UPS extended runtime models
• Dimensions (W x D x H): 130 mm x 683 mm x 432 mm
• Weight: 91.0 kg
• Colour: Black
• RoHS compliant
• Warranty: 2 years

How to use

Install the battery pack into a compatible rack enclosure following the UPS manufacturer’s installation guide. Connect the pack to the matching 5 kVA or 6 kVA SRT Smart-UPS extended runtime interface according to the UPS and battery pack cabling instructions. After connection, verify the embedded monitoring reports battery status at cell, module, and cabinet levels through the UPS management interface. Ensure all electrical connections are performed by qualified personnel and that the system is powered down per safety procedures before installation.

Recommendations

Place the battery pack in a controlled environment with adequate ventilation, stable temperature, and limited humidity. Perform regular monitoring of battery health using the embedded diagnostics, and schedule preventive maintenance or replacement in line with observed state-of-health data and the two-year warranty period.
