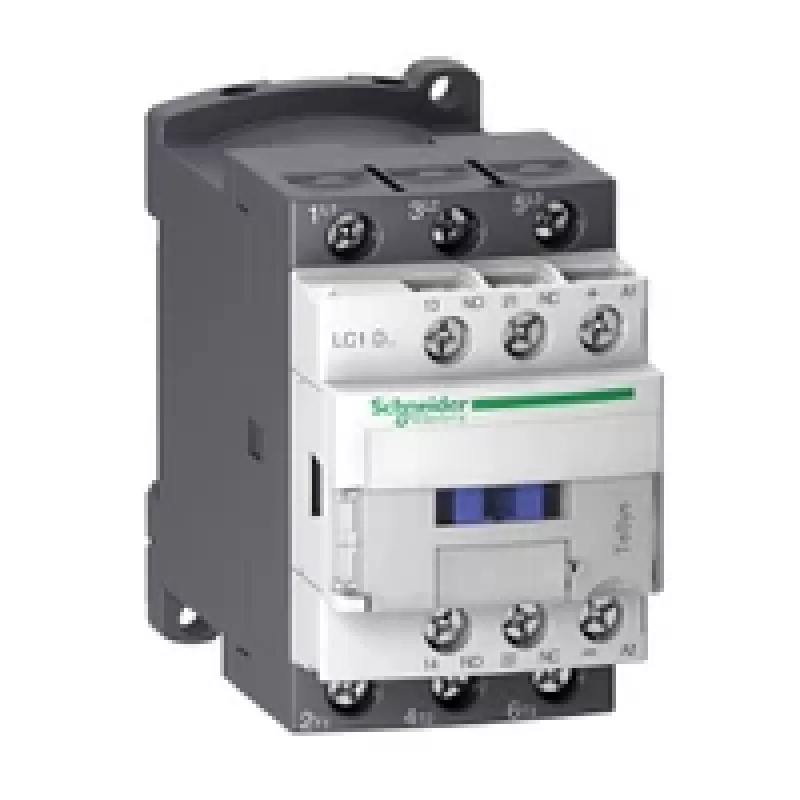

APC Schneider Electric LC1D32BL TeSys D ρελέ ισχύος, 3πολικό, 32A, 24V DC, 1NO+1NC

The APC Schneider Electric LC1D32BL is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a compact 3-pole design and a rated operational current of 32 A in AC-3 category, this contactor is ideal for controlling motors up to 15 kW at 400 V AC. The coil operates on 24 V DC, making it suitable for industrial control systems with DC control circuits. Built to meet international standards including IEC 60947-4-1, UL 508, and CSA C22.2 No 14, it ensures safety and durability in demanding environments.

Advantages

Robust construction with screw clamp terminals for secure wiring. Integrated auxiliary contacts (1 NO + 1 NC) eliminate the need for additional modules in many applications. High electrical and mechanical durability (1.4 million cycles electrical, 15 million cycles mechanical) reduces maintenance costs. Wide operating temperature range (-5 to 60 °C) and IP20 protection make it suitable for industrial enclosures.

Suitable for

• Motor starting and switching in industrial machinery
• Lighting and heating control systems
• HVAC equipment
• Pump and compressor control
• Automation and process control panels

Key specifications

• Product Type: Contactor
• Series: TeSys D
• Number of Poles: 3P
• Rated Operational Current (AC-3): 32 A at ≤60 °C, ≤440 V
• Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 NO + 1 NC
• Motor Power (AC-3, 400 V): 15 kW
• Rated Insulation Voltage (Ui): 690 V (IEC 60947-4-1)
• Rated Operational Voltage (Ue): Up to 690 V AC / 300 V DC
• Mounting Type: Rail / Plate
• Terminal Type: Screw clamp terminals
• IP Protection Level: IP20
• Electrical Durability (AC-3): 1.4 Mcycles
• Mechanical Durability: 15 Mcycles
• Operating Temperature: -5 to 60 °C
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• Certifications: UL, CSA, CCC, EAC, DNV-GL, RINA, BV

Recommendations

For optimal performance, ensure the coil voltage matches your control circuit (24 V DC). Use appropriate overload relays and short-circuit protection devices. The contactor can be mounted on a DIN rail or directly on a plate. Always follow local electrical codes and manufacturer guidelines.
