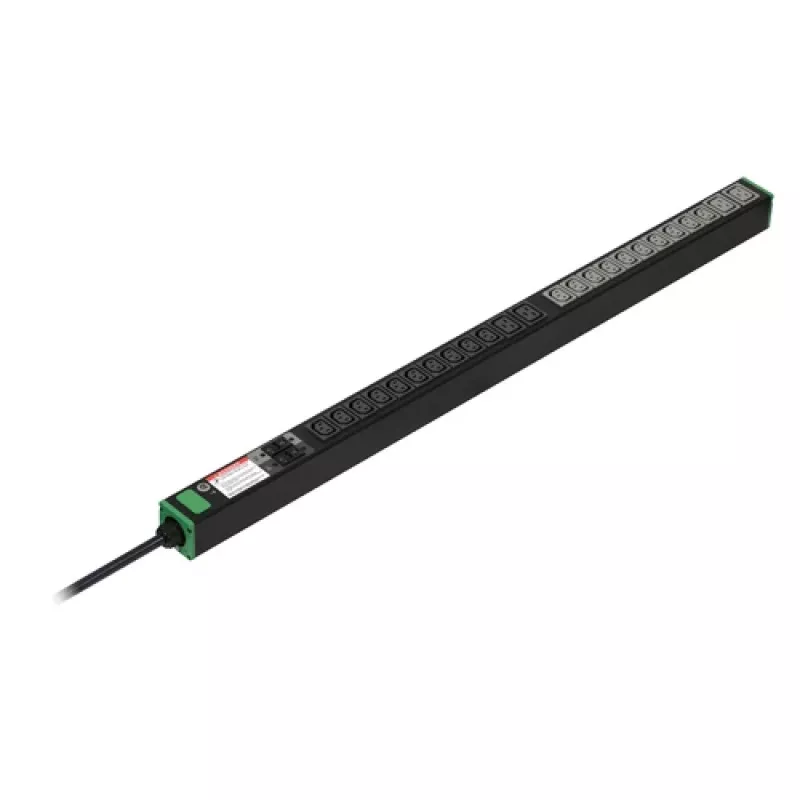

APC Schneider Basic PDU - Μονάδα διανομής ρεύματος (rackmount)

The APC Schneider Basic PDU is a reliable and cost-effective power distribution solution designed for data centers, server rooms, and network cabinets. This 1U rack-mountable unit provides 12 IEC C13 outlets, distributing 230V AC power to connected equipment with a maximum capacity of 3680 VA. Ideal for environments requiring basic power distribution without advanced monitoring or switching capabilities.

Advantages

Simple, unmanaged power distribution with robust construction. The steel chassis ensures durability, while the 2.5-meter input cord offers flexible installation. Horizontal 1U form factor saves valuable rack space. CE and VDE certified for safety and compliance.

Suitable for

• Data centers requiring basic power distribution
• Server rooms with limited monitoring needs
• Network cabinets for IT equipment
• Industrial environments needing reliable power

Key specifications

• PDU Type: Basic Rack PDU
• Form Factor: 1U Rack-mountable
• Input Voltage: 230 V AC
• Input Current: 16 A
• Input Connector: IEC 309 16A 2P+E
• Output Voltage: 230 V AC
• Output Connectors: 12 x IEC 60320 C13
• Max Total Current Draw: 16 A
• Power Capacity: 3680 VA
• Cord Length: 2.5 meters
• Mounting Orientation: Horizontal
• Phase: Single Phase
• Overload Protection: No
• Operating Temperature: 0 - 45 °C
• Operating Humidity: 0 - 95% (non-condensing)
• Color: Black
• Material: Steel chassis
• Management: Unmanaged
• Certifications: CE, EN 55022 Class A, EN 55024, IEC 60950, VDE
• Included Accessories: Installation guide, Rack mounting brackets

Recommendations

For basic power distribution needs, the APC Schneider Basic PDU offers a straightforward solution with high build quality. Ensure your rack has 1U of horizontal space and that your input power source matches the IEC 309 16A plug.
