APC EPDU Καλώδιο τροφοδοσίας, Schuko σε C20, 0,5 m

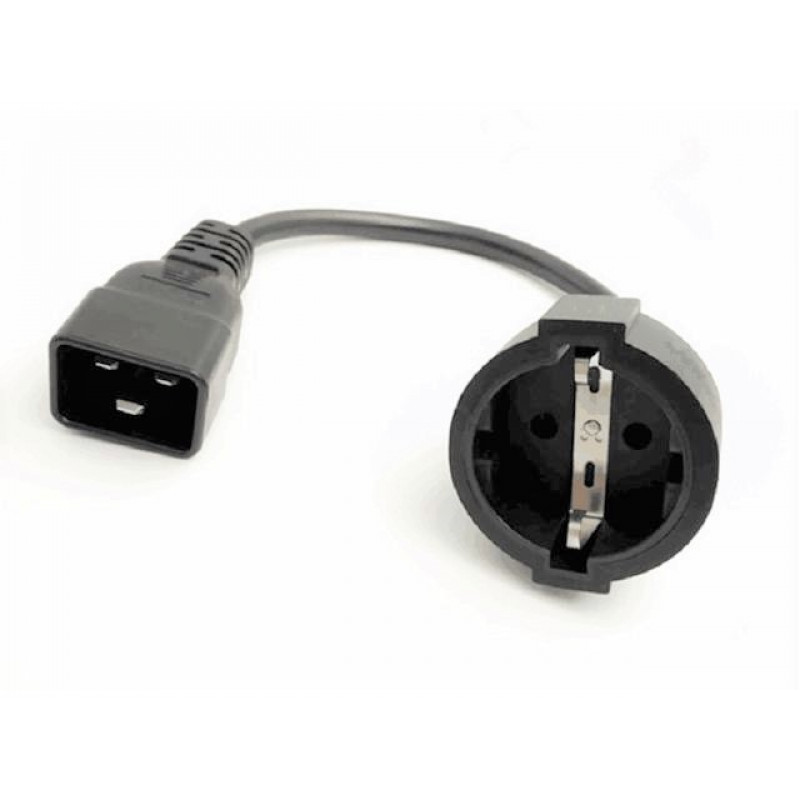

In a busy server room, a technician needs to connect a high-power PDU to a standard European wall outlet. The APC EPDU-PCC0B power cord makes that connection immediate and secure. With a Schuko plug on one end and an IEC C20 connector on the other, it links equipment with a C20 inlet—such as rack PDUs and UPS systems—to a Schuko socket. The 0.5-metre length keeps cable runs short and tidy, reducing clutter behind racks.

Key specifications

• Length: 0.5 m
• Connector 1: CEE 7/7 (Schuko) male
• Connector 2: IEC 60320 C20 female
• Rated current: 16 A
• Rated voltage: 250 V
• Conductor cross-section: 1.5 mm²
• Cable type: H05VV-F
• Jacket material: PVC
• Colour: Black
• Certifications: CE, RoHS, REACH

Why choose it

This cord is built to handle the power demands of data centre equipment. The 1.5 mm² conductors and robust PVC jacket ensure reliable performance and durability. It complies with European safety and environmental standards, giving you confidence in every connection.

Ideal use cases

• Connecting a rack PDU with a C20 inlet to a Schuko wall outlet
• Powering a UPS that requires a C20 input
• Short, neat cable runs in server racks and network cabinets

Good to know

The cord is rated for operation from -5 °C to 45 °C and can be stored from -25 °C to 65 °C. Insulation resistance exceeds 20 MΩ, and dielectric strength is 2000 V AC for one minute. It is a complete power cord kit, ready to use out of the box.
