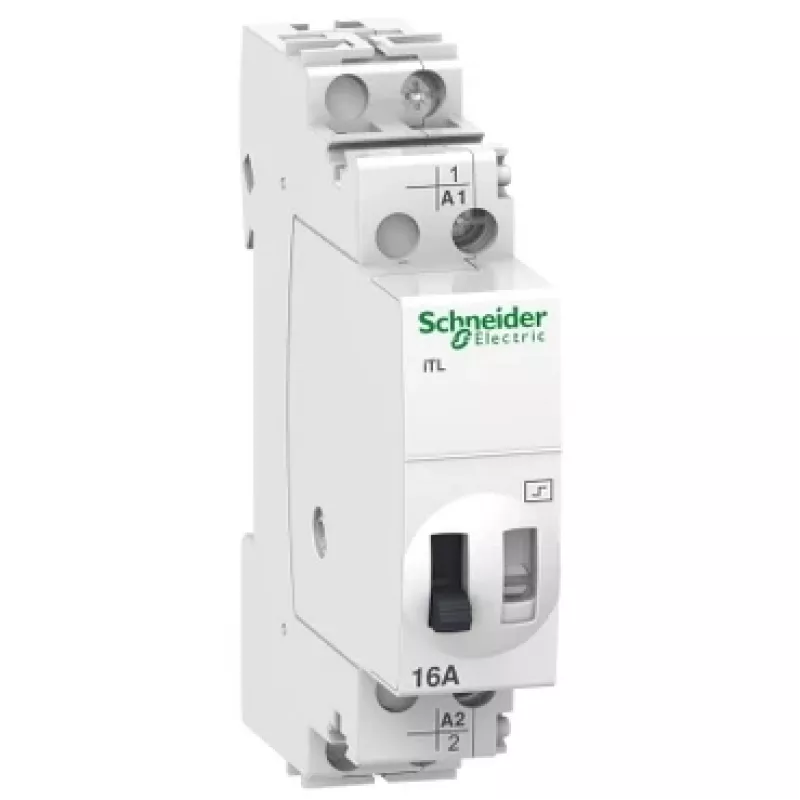

APC Acti9 iTL Ρελέ παλμού 1P 16A 12V AC A9C30011

The APC Acti9 iTL A9C30011 is a high-quality impulse relay designed for remote and manual control of lighting and electrical loads. With a single-pole normally open contact rated at 16A and a control voltage of 12V AC, this relay is ideal for applications requiring reliable switching in commercial and industrial installations. It features DIN rail mounting, compact 2-module width, and robust construction for long service life.

Advantages

Reliable remote switching with manual override, compact design saves space on DIN rail, high electrical and mechanical durability for demanding environments, and compliance with international standards.

Suitable for

• Lighting control in commercial buildings
• Industrial automation systems
• Remote switching of electrical loads
• Integration with building management systems

Key specifications

• Product Type: Impulse Relay
• Series: Acti9 iTL
• Number of Poles: 1P
• Contact Configuration: 1 NO (Normally Open)
• Rated Operational Current: 16 A
• Control Circuit Voltage: 12 V AC
• Control Circuit Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Width in 9mm Modules: 2 modules
• Electrical Durability (AC-21A): 200,000 cycles
• Mechanical Durability: 1,000,000 cycles
• Operating Temperature: -20 to 50 °C
• Storage Temperature: -40 to 70 °C
• IP Degree of Protection (Front Face): IP40
• IP Degree of Protection (Terminals): IP20
• Standards: IEC 60669-1, IEC 60947-5-1
• Connection Type: Screw Clamp Terminals
• Overvoltage Category: III
• Local Signalling: ON/OFF indicator
• Control Type: Remote and manual control

Recommendations

For optimal performance, use with compatible Acti9 accessories and ensure proper installation by a qualified electrician. Verify load compatibility and control voltage before installation.
