Αντλία νερού Gardena 9032-20

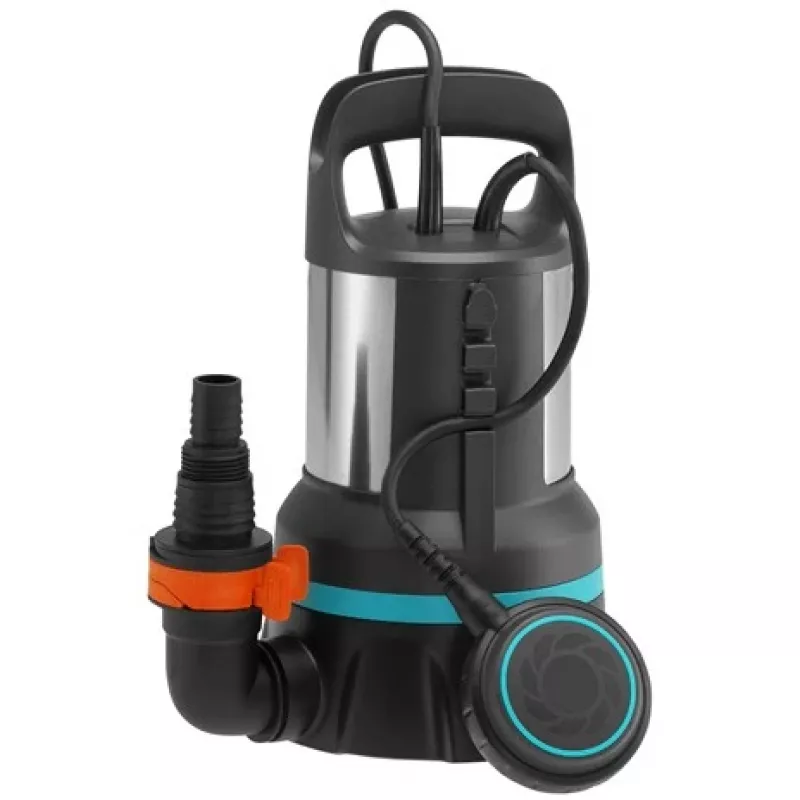

The GARDENA Water Pump 9032-20 is a compact submersible clear water pump designed for efficient drainage tasks. The pump provides 450 W of power, a maximum flow rate of up to 11,000 litres per hour and a maximum delivery head of 7 m (0.7 bar). With an IPX8 rating for continuous submersion, a stainless steel cover and a ceramic-coated shaft with triple sealing and oil chamber, the unit is built for robust, long-lasting operation. The pump supports quick hose connection options (25 mm / 1" and 38 mm / 1 1/2") and a G1" thread for additional fittings.

Advantages

The float switch enables automatic on/off control at three adjustable heights, while inserting the switch into the housing sets the pump to continuous manual operation. Stainless steel components and a ceramic-coated shaft with triple sealing increase durability and protect the motor against leakage. The pump’s 450 W motor achieves high efficiency with low energy consumption and a flat suction down to approximately 2 mm. A practical handle and a one-click hose connection system make handling, transport and installation straightforward.

Suitable for

• Draining flooded cellars and basements
• Emptying water from laundry rooms and utility areas
• Filling or emptying water barrels and pools
• Groundwater and general drainage tasks with clear or slightly contaminated water

Key specifications

• Power: 450 W
• Maximum flow rate: 11,000 l/h
• Maximum delivery head: 7 m (0.7 bar)
• Suction depth: down to approx. 2 mm (flat suction)
• Protection rating: IPX8 (suitable for continuous submersion)
• Connection diameters: 25 mm (1"), 38 mm (1 1/2"), compatible with G1" thread
• Materials: stainless steel cover, ceramic-coated shaft, triple sealing with oil chamber
• Dimensions (W×D×H): 240 × 176 × 315 mm
• Model / MPN: 09032-20, EAN: 4078500053266

How to use

Place the pump in the water so it sits on a stable surface. Select automatic or continuous manual mode: for automatic operation attach the float switch to the desired height on the pump housing (three positions available); for continuous manual operation insert the switch into the housing. Connect the hose using the one-click connection to the appropriate diameter (25 mm or 38 mm) or use the G1" thread for alternative fittings. Ensure the power cable and connections remain dry and intact, then switch on the pump. Monitor operation until the required water level is reached or the pump switches off automatically.

Recommendations

For long service life, avoid pumping heavily contaminated water or solids that exceed the pump’s specifications. After use, clean the pump, check seals and connections, and store it in a dry place. Register the product with GARDENA to benefit from the extended 5-year warranty where applicable.
