Ανοιχτό πλαίσιο rack 19 ιντσών 12U CAYMON OPR512A/B μαύρο

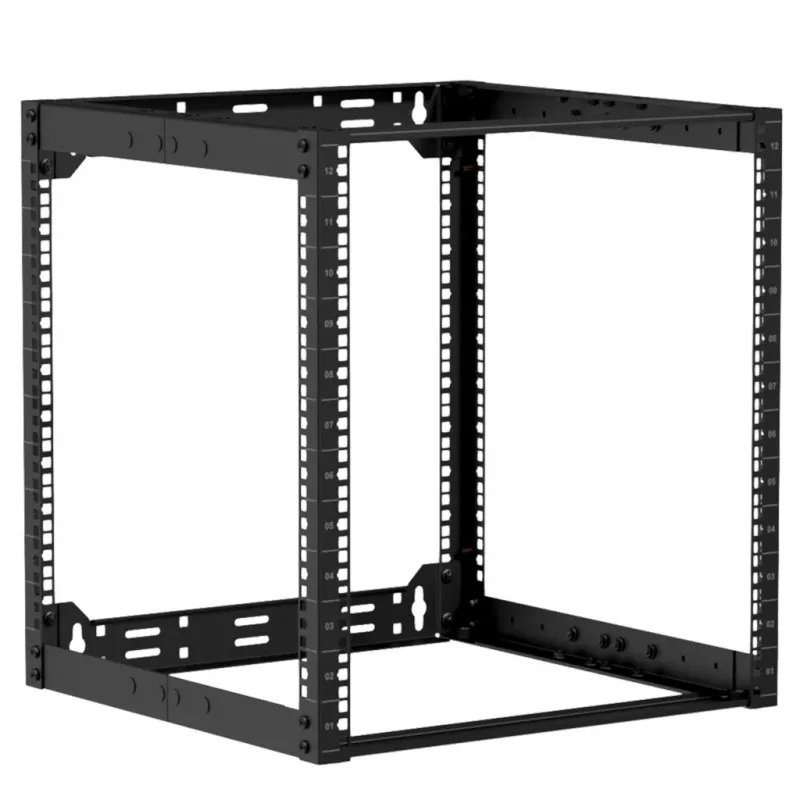

The CAYMON OPR512A/B is a professional 19-inch open rack frame designed for floor-standing installation of servers, network equipment, and audio/video gear. With 12U of rack space and a robust steel construction, this flat-pack frame offers a static load capacity of 100 kg, making it suitable for a wide range of applications. The open frame design ensures maximum airflow for efficient cooling, while the powder-coated finish in black (RAL9004) provides durability and a sleek appearance.

Advantages

Easy self-assembly with included mounting hardware and adjustable feet. The 2-post design with square holes (M6) allows flexible equipment mounting. Compact dimensions (600x520x400 mm) save floor space while accommodating standard 19-inch devices.

Suitable for

• Server rooms and data centers
• Network cabinets for switches and patch panels
• Audio/video equipment racks
• Industrial control systems

Key specifications

• Rack Type: Open Rack Frame
• Rack Units: 12U
• Width: 19 inch
• Material: Steel
• Color: Black (RAL9004)
• Construction: Flat-pack (Self-assembly)
• Mounting Type: Floor Standing
• Static Load Capacity: 100 kg
• Number of Posts: 2-Post
• Mounting Profile: Square Holes (M6)
• Standard Compliance: EIA-310-D
• Finish: Powder Coated
• Usable Depth: 360 mm
• Overall Height: 600 mm
• Overall Width: 520 mm
• Overall Depth: 400 mm
• Included Accessories: Mounting hardware, adjustable feet
• Ventilation: Open frame for maximum airflow

Recommendations

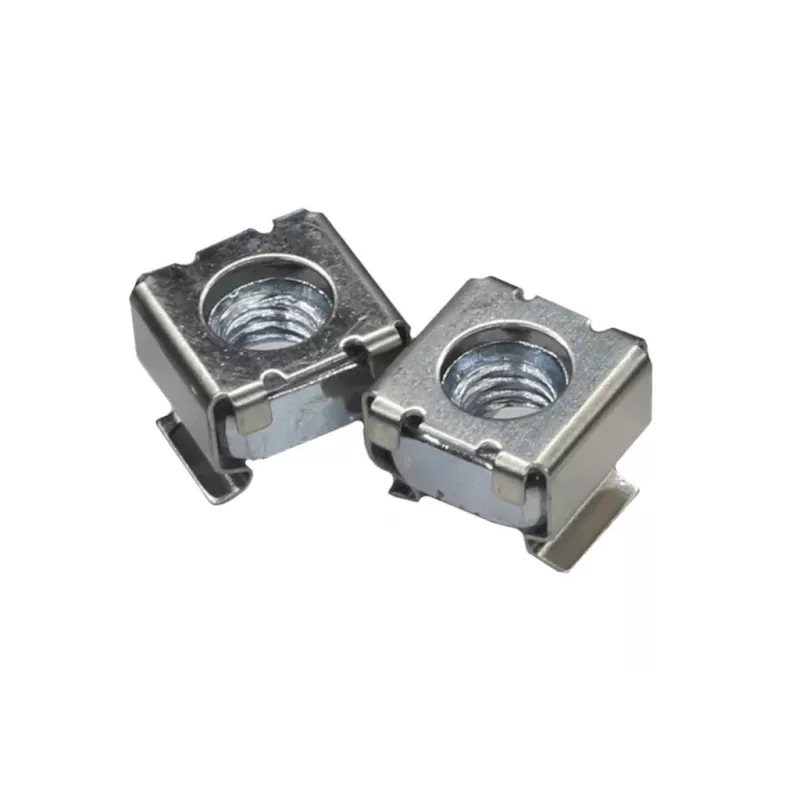

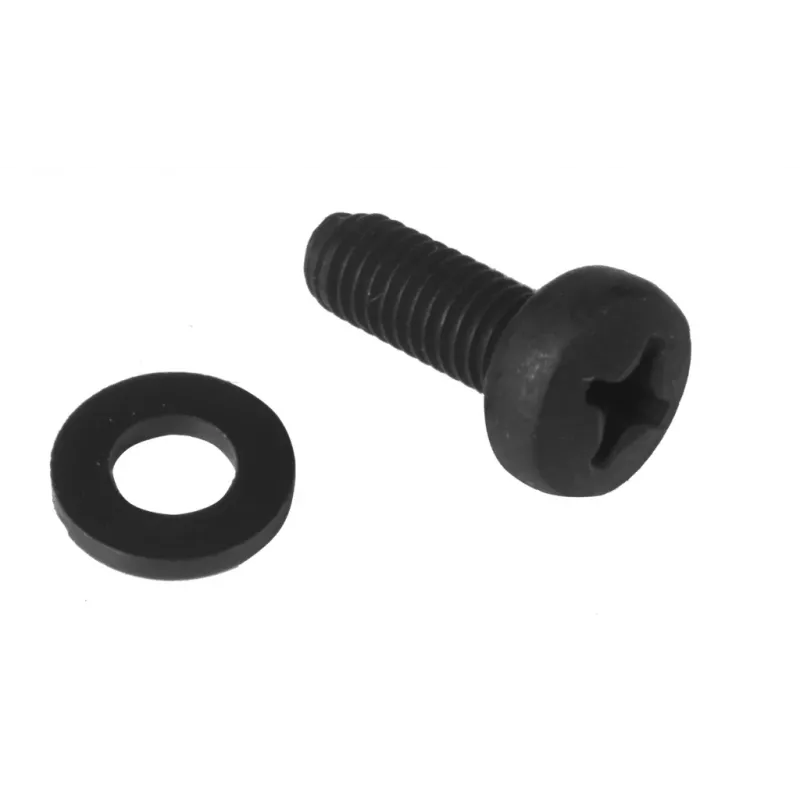

For optimal stability, ensure the rack is placed on a level surface and all adjustable feet are properly secured. Use M6 cage nuts and screws (not included) for mounting equipment.
