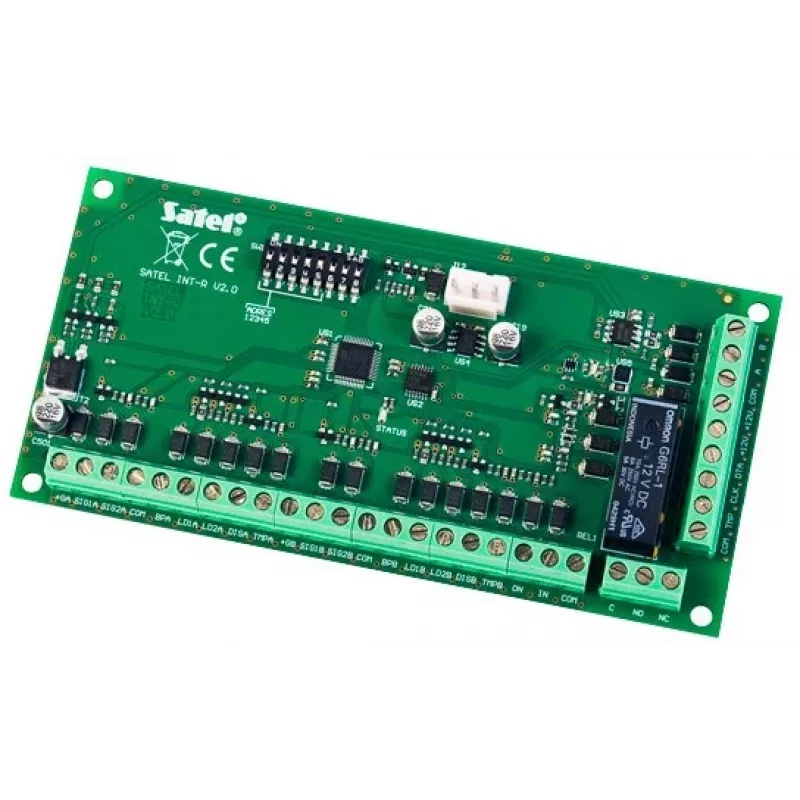

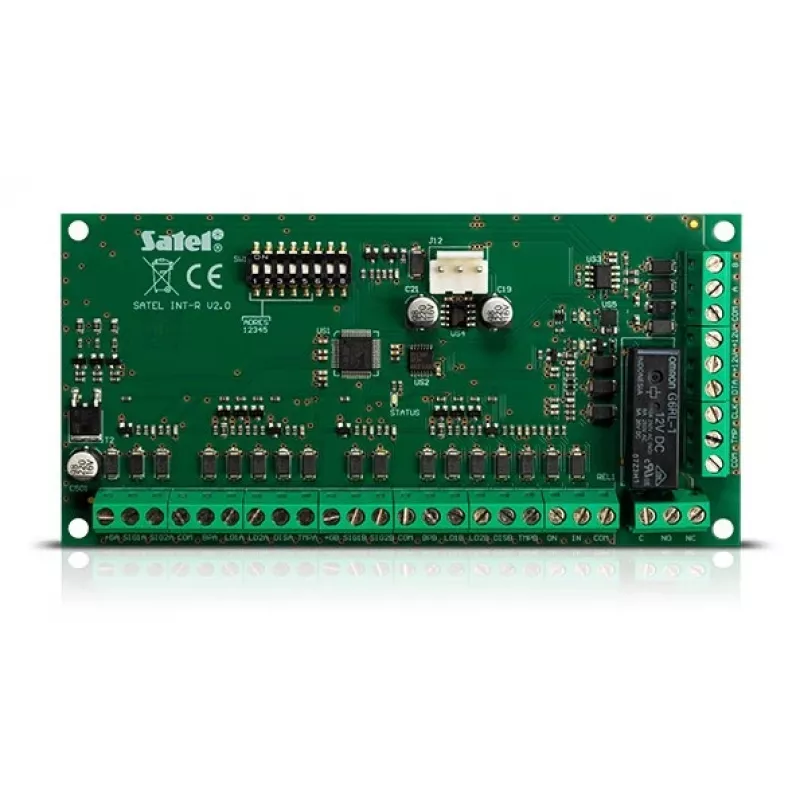

Αναγνώστης μαγνητικών καρτών Satel INT-R Πράσινο

The Satel INT-R Green is a compact magnetic card reader designed for access control systems. Intended as an extension module for INTEGRA control panels, it enables connection of proximity card readers and iButton chip readers to manage access and to arm or disarm partitions. The reader combines a low power consumption of 150 mA with a slim form factor (140 mm × 68 mm) and a lightweight construction of 80 g, allowing straightforward installation in both commercial and residential environments.

Advantages

The INT-R Green offers reliable, low-power operation suitable for continuous use and integration with compatible INTEGRA and CA-64 alarm control panels. Its compact dimensions and light weight make it easy to mount in constrained spaces. The unit supports both proximity card and iButton interfaces, which provides flexibility when setting up or expanding an access control system. Build quality is intended for long-term operation under normal environmental conditions.

Suitable for

• Access control expansion on INTEGRA and CA-64 alarm systems
• Installation where compact, low-profile card readers are needed
• Locations requiring both proximity card and iButton compatibility
• Small offices, utility rooms, service entrances and residential entrances

Key specifications

• Power consumption: 150 mA
• Dimensions (W × H): 140 mm × 68 mm
• Weight: 80 g
• Supported reader types: magnetic/proximity card and iButton chip
• Compatibility: interfaces with INTEGRA and CA-64 control panels

How to use

Mount the INT-R Green at the desired access point and connect it to a compatible INTEGRA or CA-64 control panel according to the panel manufacturer’s wiring diagram. After wiring power and data connections, configure the control panel to recognise the attached reader type (proximity card or iButton). Register authorized cards or iButton keys in the alarm/control panel database and verify that arming/disarming and access events are reported correctly by the system.

Recommendations

Install the reader in a sheltered location away from direct water exposure and extreme temperatures. Use appropriate cabling and follow grounding and EM interference guidelines provided by the control panel manufacturer. Regularly test registered credentials and the connection to the control panel to ensure reliable access control and partition arming/disarming.
