Αναγνώστης 스마트 καρτών ACS ACR1281S-C1 DualBoost II

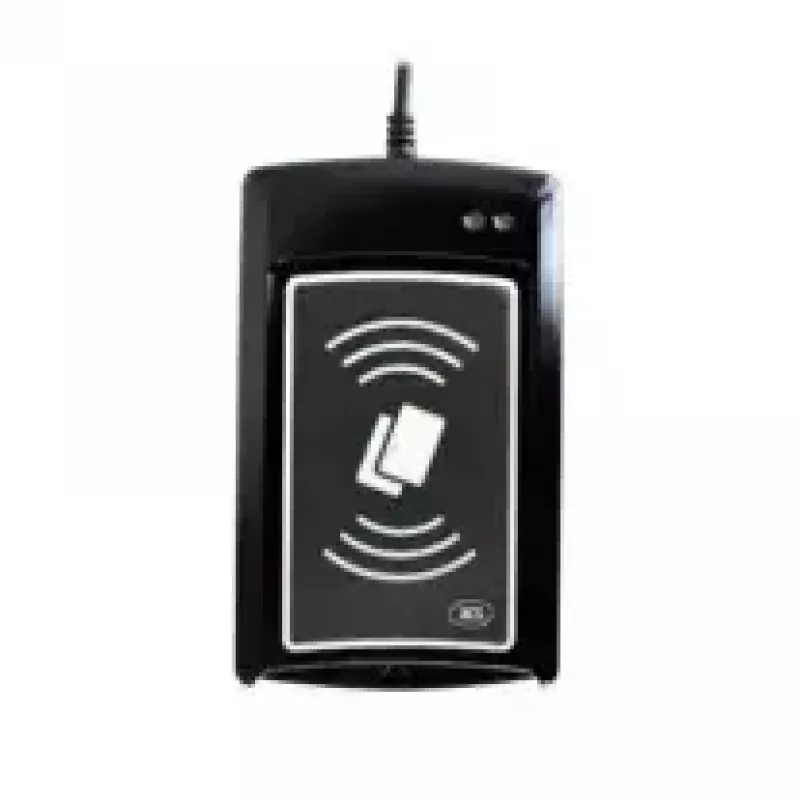

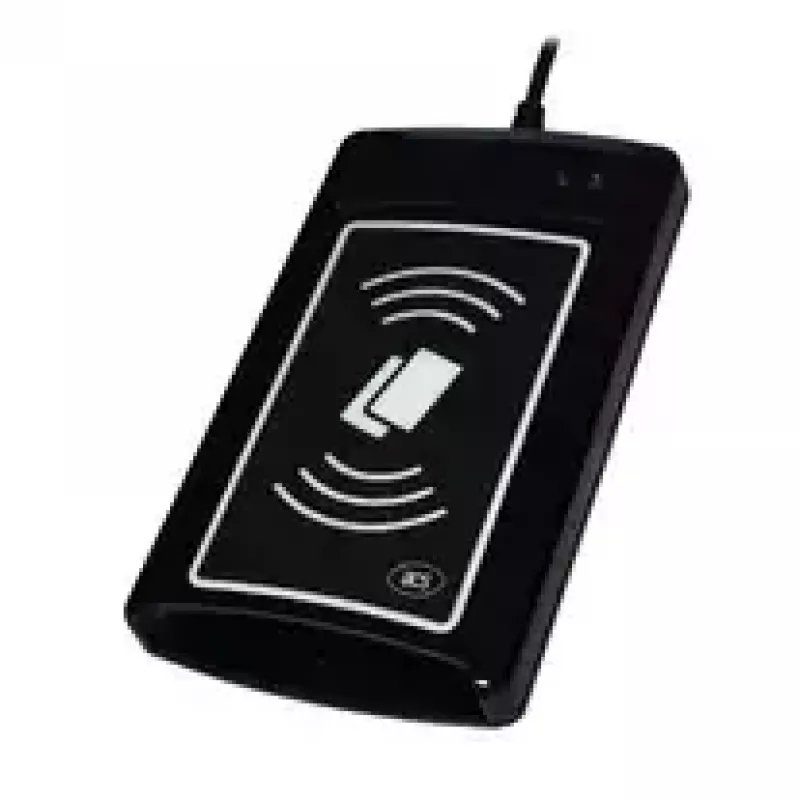

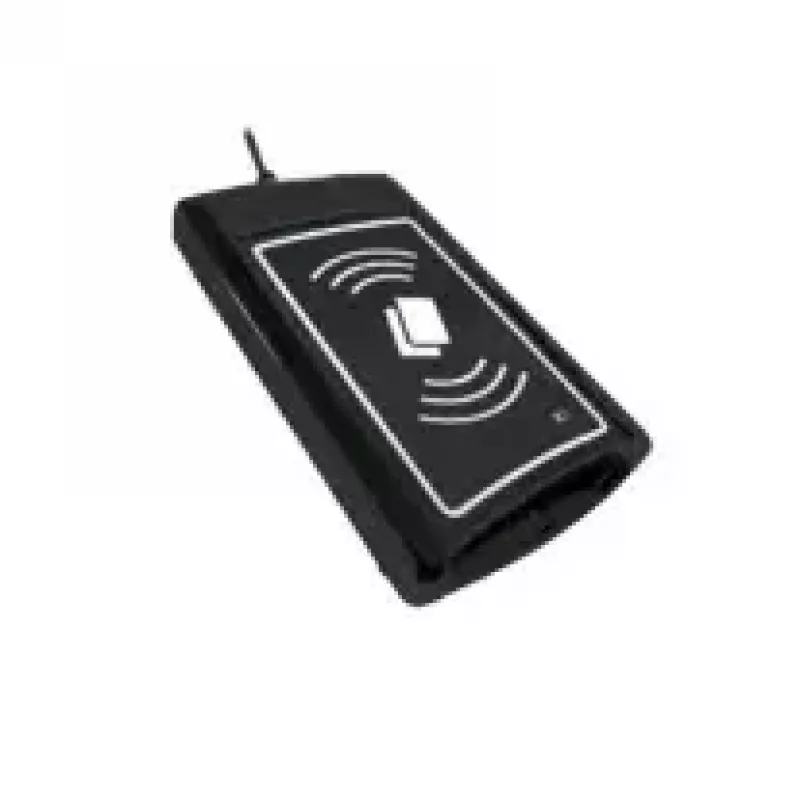

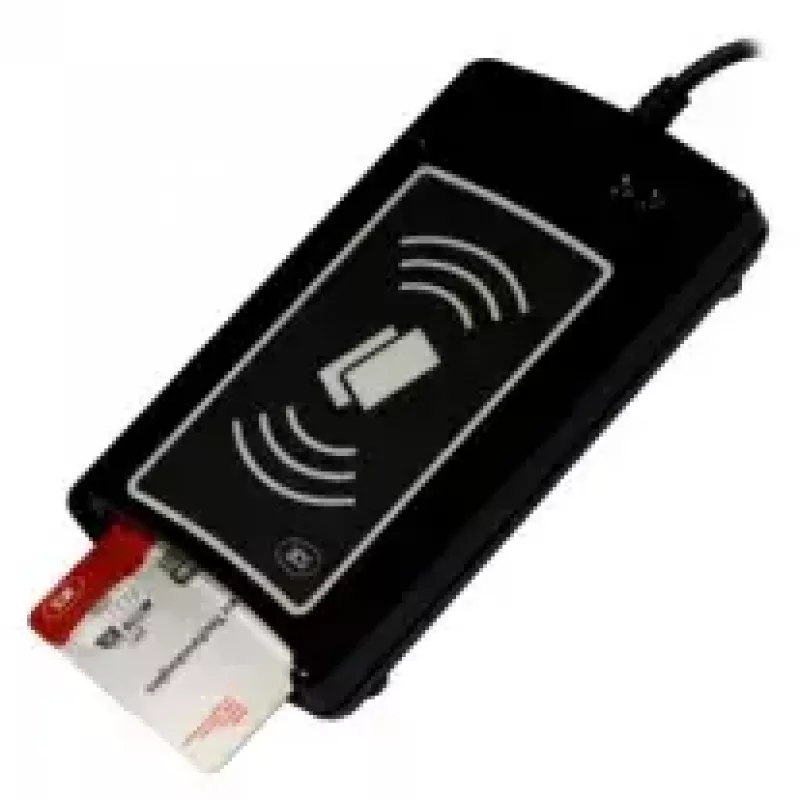

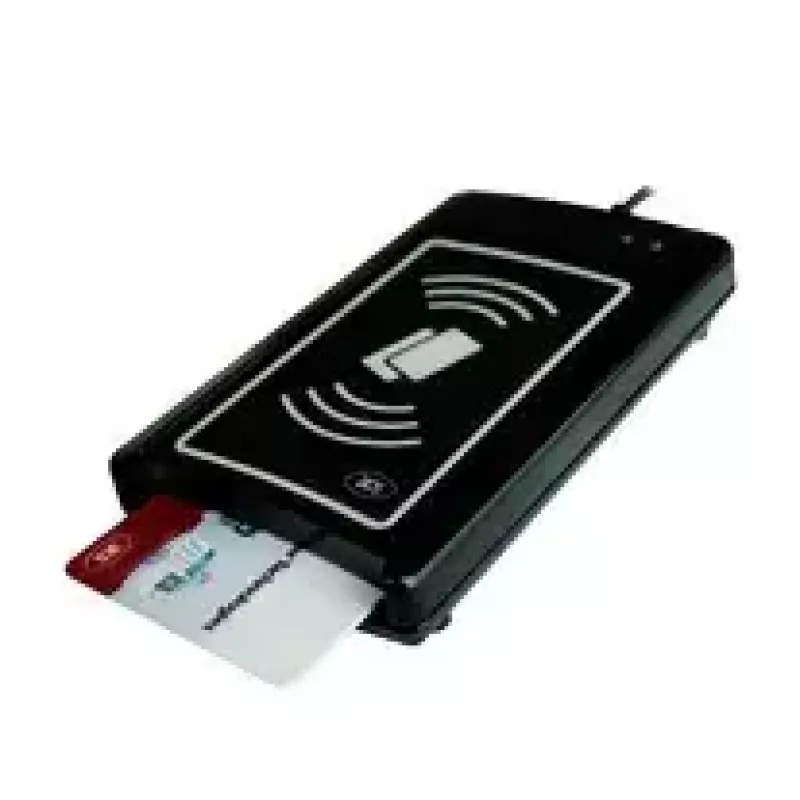

The Smart Card Reader ACS ACR1281S-C1 DualBoost II is a dual-interface device that supports contact and contactless smart cards compliant with ISO 7816 and ISO 14443 standards. Designed for integration of contact and contactless applications into a single reader and single card, the ACR1281S-C1 is suitable for secure payment processing, identity verification and access control. The reader connects via USB and RS-232 and is supplied with a 1.5 m cable; its compact black housing and 150 g weight make it convenient for desktop and portable installations.

Advantages

The ACR1281S-C1 offers plug-and-play operation without requiring driver installation and includes a built-in SAM slot for enhanced security in both contact and contactless workflows. It supports high-speed contactless communication up to 848 kbps, extended APDU commands, contact memory cards and USB firmware upgrades, providing a flexible and cost-effective solution for multi-application smart card use.

Suitable for

• Secure payment terminals for banking and e-commerce transactions
• Access control and contactless identity verification
• Integration of combined contact and contactless card applications
• Desktop or portable smart card deployments using USB or RS-232 interfaces

Key specifications

• Standards: ISO 7816 (contact), ISO 14443 (contactless)
• Interfaces: USB and RS-232
• Contactless max speed: 848 kbps
• Features: built-in SAM slot, extended APDU support, contact memory card support, USB firmware upgradability
• Dimensions & weight: compact design, weight 0.15 kg
• Colour: Black
• Manufacturer part number (MPN): ACR1281S-C1ACSA
• EAN: 5704174173656

How to use

Connect the ACR1281S-C1 to a host via the supplied USB or RS-232 cable. The device operates in plug-and-play mode and does not require separate driver installation on supported platforms. Insert or present the contact or contactless smart card as required by your application; secure elements can be managed through the built-in SAM slot. Use the host application to send APDU commands for transactions, authentication or data access. Firmware updates can be applied over USB when provided by the vendor.

Recommendations

The reader is intended for controlled environments; install it on a stable surface and avoid exposure to extreme temperatures or moisture. For secure payment and access applications, follow your organisation's security policies for SAM management, firmware updates and cable routing. Use the RS-232 interface where legacy serial connectivity is required and USB for modern host systems.
