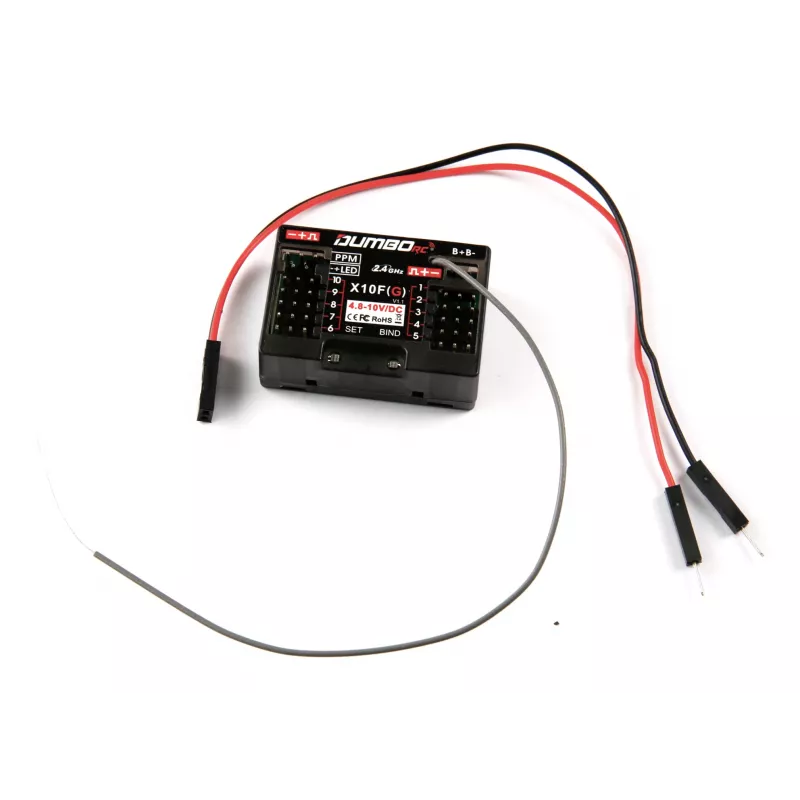

Amewi X10FG δέκτης DDF-350 10 καναλιών (28386)

Finding a reliable receiver that pairs seamlessly with your Amewi DDF-350 transmitter can be a challenge, especially when you need multiple channels for complex RC models. The Amewi X10FG 10-Channel DDF-350 Receiver (28386) solves this by offering a dedicated 2.4 GHz receiver with 10 PWM channels, ensuring stable control for aircraft, helicopters, cars, and boats.

Who is it for

This receiver is for hobbyists and RC enthusiasts who own an Amewi DDF-350 transmitter and need a compatible receiver for their models. It suits both beginners and advanced users who require up to 10 channels for functions like flaps, retracts, lights, or auxiliary controls.

Main features

• 10 channels for versatile control of multiple functions
• 2.4 GHz frequency band for reliable, interference-free operation
• Compatible with Amewi DDF-350 transmitters
• Integrated bind button for quick and easy pairing
• Failsafe function to maintain safety if signal is lost
• Standard servo connectors (JR/Futaba compatible) for wide compatibility
• Compact and lightweight design: 35 x 20 x 13 mm, 10 g

Specifications

• Number of Channels: 10
• Frequency Band: 2.4 GHz
• Radio Protocol: Amewi DDF-350
• Operating Voltage: 4.8V - 8.4V DC
• Output Signal: PWM (Pulse Width Modulation)
• Antenna Type: Single Wire Antenna
• Failsafe Function: Yes
• Binding Method: Integrated Bind Button
• Connector Type: Standard Servo (JR/Futaba compatible)
• Housing Material: Durable ABS Plastic
• Weight: 10 g
• Dimensions (L x W x H): 35 x 20 x 13 mm

Tips

Before binding, ensure your transmitter is set to the correct protocol for the DDF-350. Mount the receiver away from high-current wires and metal parts to maximize signal reception. After binding, test the failsafe by turning off the transmitter while the model is powered and verifying that servos move to preset positions.
