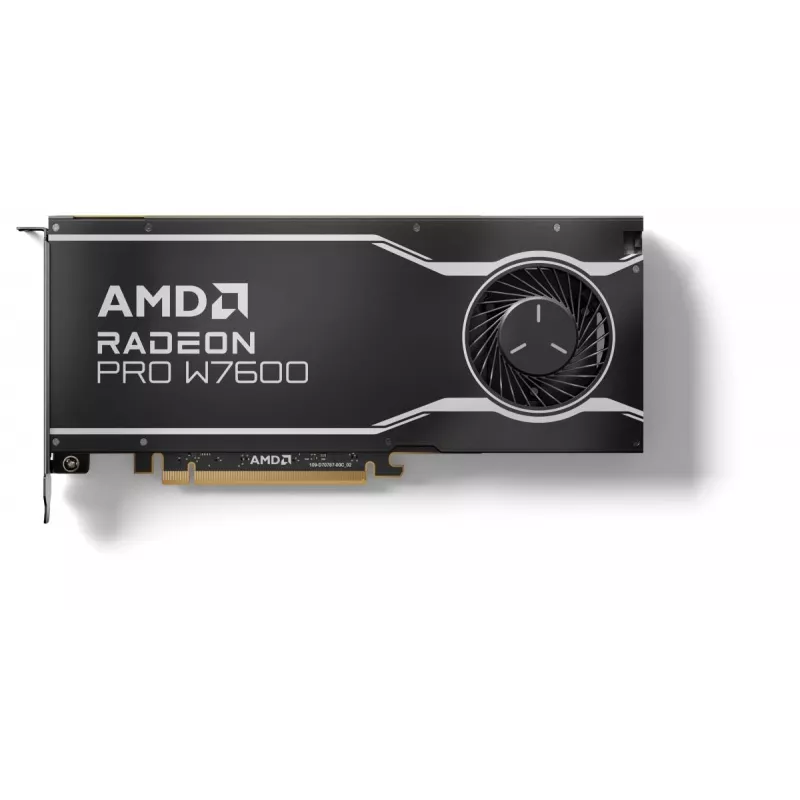

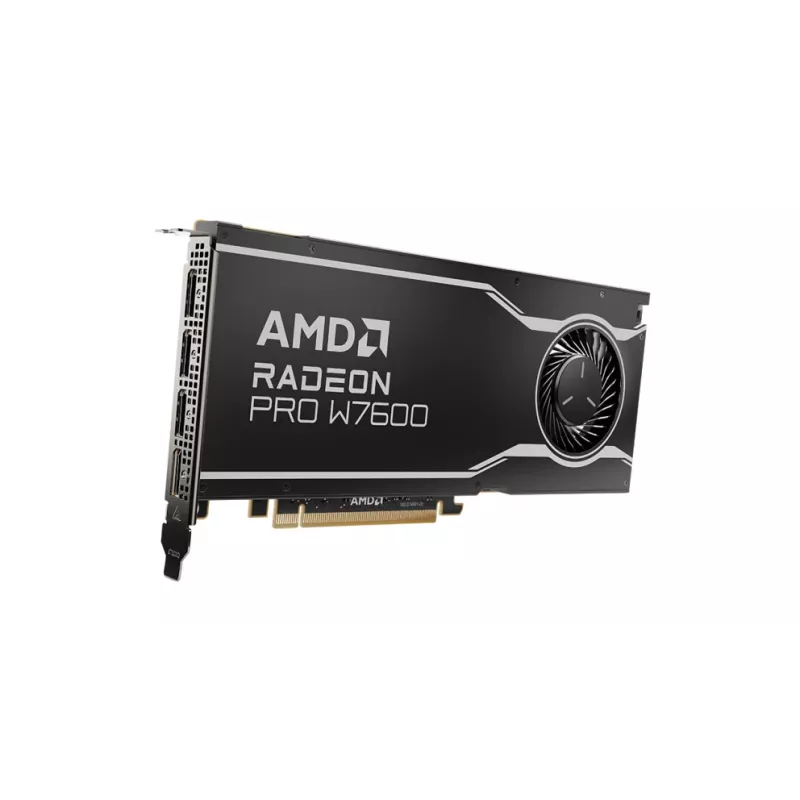

AMD Radeon Pro W7600 8GB GDDR6 PCIe 4.0 4xDP Retail

The AMD Radeon Pro W7600 8 GB GDDR6 is a professional graphics card designed for workstation environments. It features the Radeon Pro W7600 GPU with 8 GB of GDDR6 memory on a 128-bit memory bus, supporting high-resolution displays up to 7680 x 4320 pixels. The card is compatible with DirectX 12 Ultimate and OpenGL 4.6, and connects via a PCI Express x8 4.0 interface. An active cooling solution with a single fan provides temperature control during sustained workloads.

Advantages

The Radeon Pro W7600 delivers a balanced combination of memory capacity and bandwidth for professional visualization, CAD and content creation tasks. Support for modern graphics APIs ensures compatibility with current software ecosystems. The 8 GB GDDR6 memory and 128-bit bus provide responsive viewport performance and handling of moderate datasets. The PCI Express 4.0 x8 interface enables fast data transfer between the card and the host system. The single-fan active cooler maintains operating temperatures under continuous load while occupying a standard workstation slot profile.

Suitable for

• CAD and 3D modelling in professional applications
• 2D/3D content creation and rendering workflows with moderate dataset sizes
• High-resolution display setups up to 8K (7680 x 4320) for visualization and review
• Scientific visualization and engineering simulations that require stable workstation GPUs
• Software that uses DirectX 12 Ultimate or OpenGL 4.6

Key specifications

• Graphics processor: Radeon Pro W7600
• Discrete graphics card memory: 8 GB
• Graphics card memory type: GDDR6
• Memory bus: 128 bit
• Interface type: PCI Express x8 4.0
• Maximum resolution: 7680 x 4320 pixels
• Supported APIs: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: active, single fan

How to use

Install the Radeon Pro W7600 into an available PCI Express x8 or x16 slot on a compatible motherboard that supports PCIe 4.0 for optimal throughput. Secure the card in the chassis, connect any required auxiliary power if present on your specific board configuration, and attach display cables to compatible outputs to reach desired resolutions. Install the latest AMD Radeon Pro drivers from the AMD website or your system integrator to ensure API and application compatibility. After driver installation, configure display settings and application-specific GPU preferences through the driver control panel or the target software.

Recommendations

For sustained professional workloads, ensure adequate airflow in the workstation chassis and maintain up-to-date drivers. Use PCIe 4.0 host support when possible to take full advantage of the interface bandwidth. When working with very large datasets or memory-intensive renders, consider workstation configurations with higher GPU memory capacity or multi-GPU setups as appropriate for your applications.
