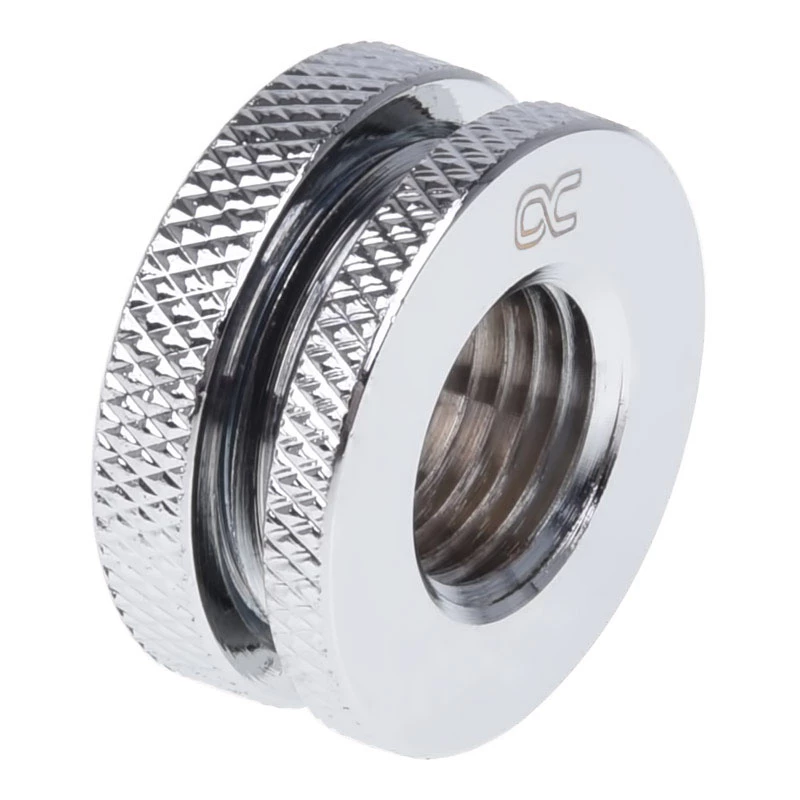

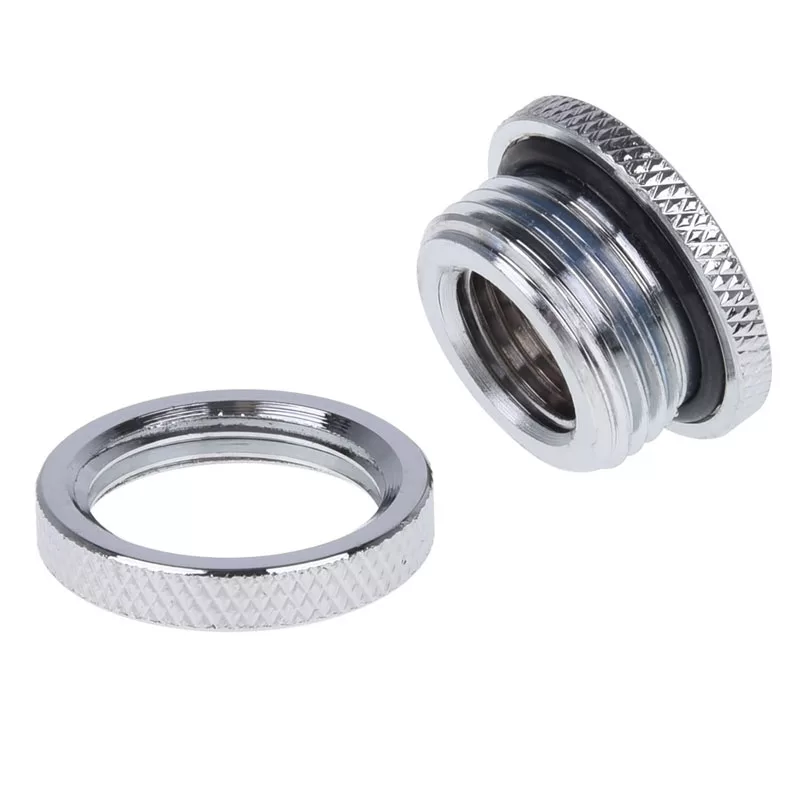

Alphacool HF Bulkhead Fitting, Short Version, G1/4 - Chrome

The Alphacool HF Bulkhead Fitting, short version, G1/4 - Chrome is a high-quality bulkhead fitting designed for professional PC water cooling systems. It allows for a clean and secure pass-through of coolant lines through case panels or reservoirs, ensuring a leak-proof connection. Manufactured from brass with a chrome finish, this fitting combines durability with an attractive appearance.

Advantages

This bulkhead fitting offers a reliable and space-saving solution for routing tubing through case walls. The short version is ideal for thin panels, and the included O-rings ensure a tight seal. The high-flow design minimizes restriction, maintaining optimal coolant circulation.

Suitable for

• PC water cooling systems requiring panel pass-through connections
• Custom loop builders needing a secure bulkhead fitting for case walls or reservoirs
• Applications where a short fitting is needed due to limited space

Key specifications

• Fitting Type: Bulkhead Fitting
• Thread Size: G1/4"
• Material: Brass
• Finish: Chrome
• Version: Short
• Overall Length: 18 mm
• Max Outer Diameter: 20 mm
• Panel Thread Length: 5 mm
• Recommended Panel Cut-out Diameter: 16 mm
• Compatibility: PC Water Cooling Systems
• Application: Panel Pass-through / Case Wall Connection
• Seal Type: O-ring (included)
• Number of Ports: 2
• Installation Method: Screw-on Nut
• High Flow Design: Yes
• Weight: 20 g

Recommendations

For optimal performance, ensure the panel cut-out diameter is precisely 16 mm. Use with compatible G1/4 threaded fittings and tubing. The included O-rings provide a reliable seal; no additional sealant is required.
