Alphacool Core Distro Plate 360 Αριστερά VPP/D5 15476

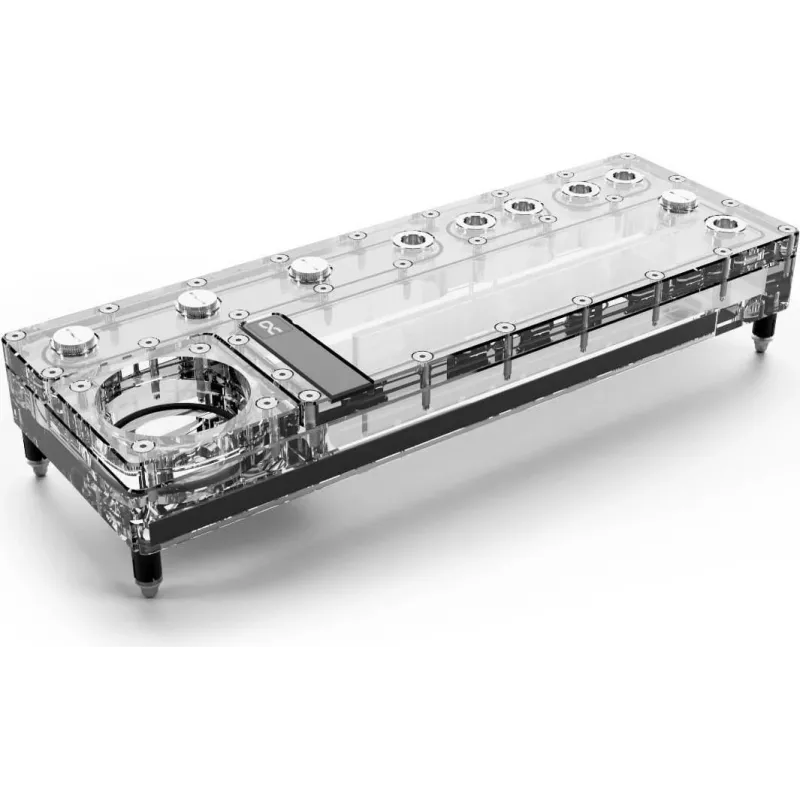

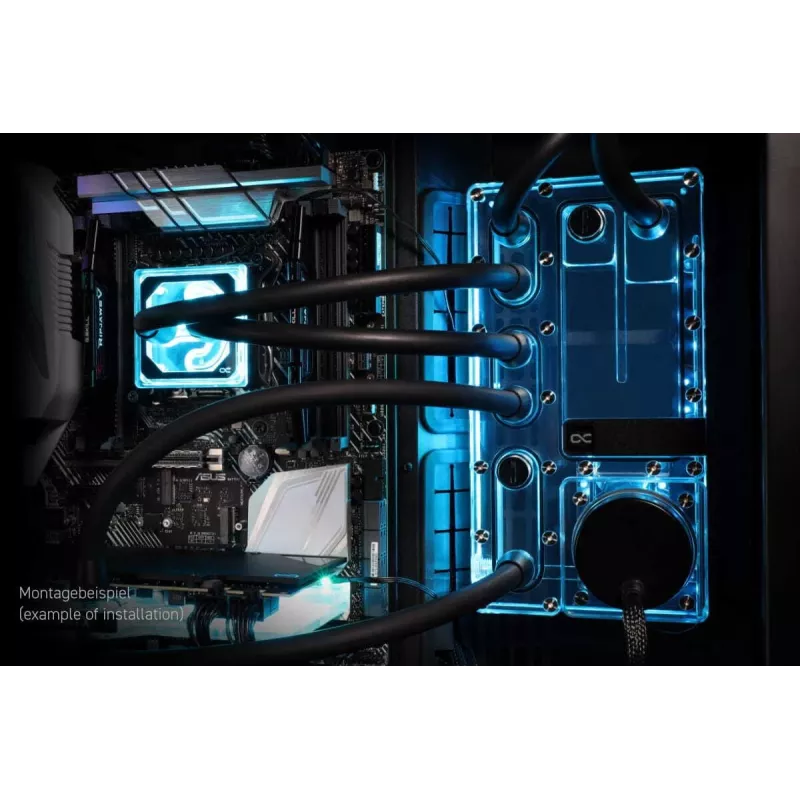

Custom water cooling builds often struggle with clean tube routing and pump placement. The Alphacool Core Distro Plate 360 Left VPP/D5 solves this by integrating a reservoir, pump top, and distribution channels into a single acrylic unit that mounts directly onto a 360mm radiator.

Who is it for

PC enthusiasts and modders building a custom loop with a 360mm radiator who want a tidy, professional layout and support for a D5 or VPP pump.

Main features

• Direct mounting to 360mm radiator mounting holes (M3)
• Integrated pump top for 1x D5 or Alphacool VPP pump (pump not included)
• 12 G1/4" ports for flexible loop routing

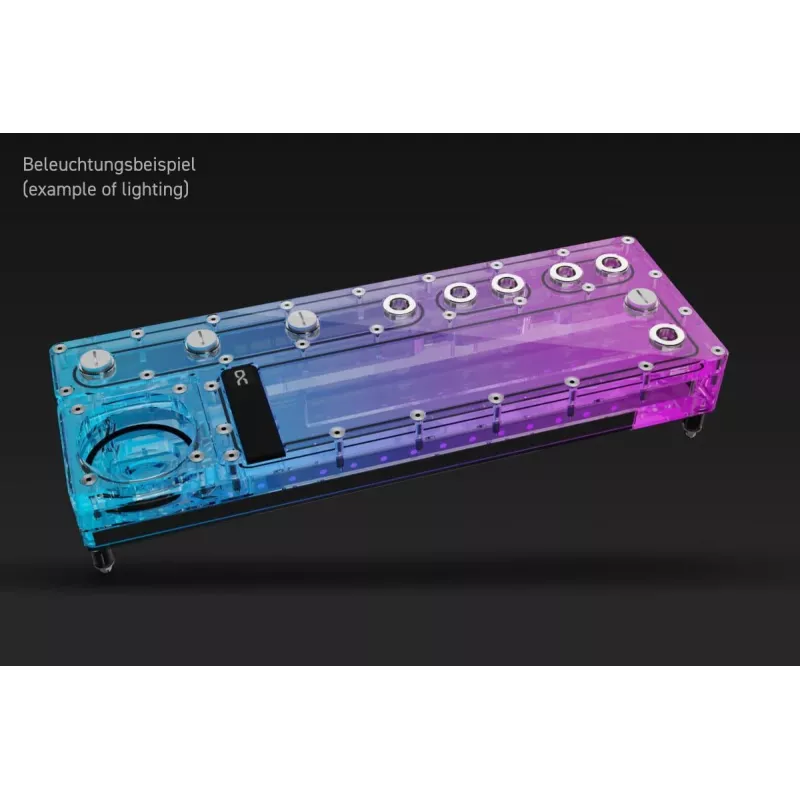

• Digital RGB lighting with 3-pin JST connector and 50 cm cable
• Modular 'Links' system for expandability
• Approx. 200 ml reservoir capacity

Specifications

• Material: Acrylic (PMMA), POM
• Max operating temperature: 60°C
• Max operating pressure: 0.8 bar
• Color: Transparent
• Series: Alphacool Core

Tips

Ensure your pump is compatible with D5 or VPP mounting. Plan your loop order to make the most of the 12 ports.
