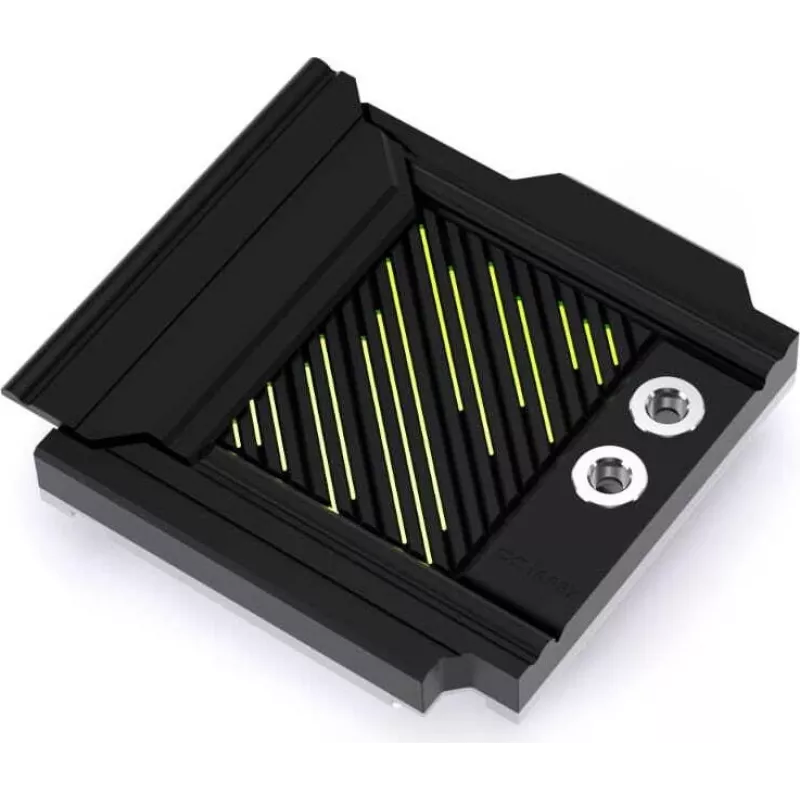

Alphacool Apex Monoblock MAG X870 TOMAHAWK WIFI (14685)

Fine micro-channel cooling meets full-cover design in the Alphacool Apex Monoblock for MSI MAG X870 TOMAHAWK WIFI. This nickel-plated copper block cools CPU and VRM simultaneously, with a low-restriction flow path and digital aRGB illumination.

Overview

The Alphacool Apex Monoblock MAG X870 TOMAHAWK WIFI is a premium full-cover water block engineered specifically for the MSI MAG X870 TOMAHAWK WIFI motherboard. It replaces the stock heatsinks and provides direct liquid cooling to both the CPU and the voltage regulator modules (VRM), ensuring stable performance under heavy loads. The base plate is crafted from nickel-plated copper, offering excellent thermal conductivity and corrosion resistance. The top is made from durable acetal (POM), which is lightweight and resistant to common coolants.

What stands out

• Fine micro-channel structure over the CPU area maximizes heat transfer from the processor.
• Integrated digital RGB lighting with a standard 3-pin JST connector for motherboard sync.
• Four G1/4" ports provide flexible loop routing options.
• Optimized flow path reduces restriction, allowing use with lower-flow pumps.
• Full-cover design cools both CPU and VRM, eliminating the need for separate heatsinks.

Technical details

• Compatible motherboard: MSI MAG X870 TOMAHAWK WIFI
• Cooling zones: CPU and VRM (voltage regulator modules)
• Base plate material: nickel-plated copper
• Top material: acetal (POM)
• Illumination: digital RGB (aRGB), 3-pin JST (5V)
• Number of G1/4" ports: 4
• Mounting thread size: M3
• Included accessories: mounting material, thermal paste, thermal pads
• Fittings not included

Our verdict

A high-performance monoblock that combines precise engineering with sleek aesthetics, ideal for enthusiasts building a custom loop on the MSI MAG X870 TOMAHAWK WIFI.
