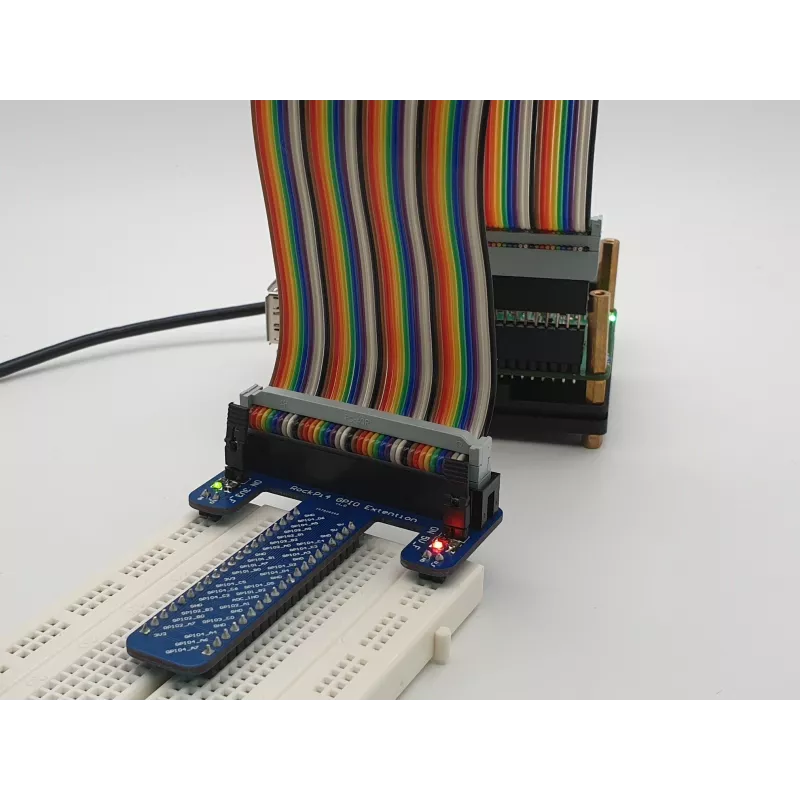

ALLNET Rock Pi 4 Solderless Breakout Kit (RockPi_SBKit)

The ALLNET Rock Pi 4 Solderless Breakout Kit (RockPi_SBKit) provides a convenient, plug-and-play solution for prototyping and development with the Radxa Rock Pi 4 single-board computer. This kit eliminates the need for soldering, making it ideal for makers, hobbyists, and engineers who want to quickly access all GPIO, I2C, SPI, UART, 3.3V, 5V, and GND pins.

Advantages

Simplifies wiring and reduces soldering risk. The solderless design allows for easy reuse and rapid prototyping. Clearly marked PCB pins ensure error-free connections.

Suitable for

• Prototyping and development projects
• Education and learning electronics
• Quick testing of Rock Pi 4 GPIO functions

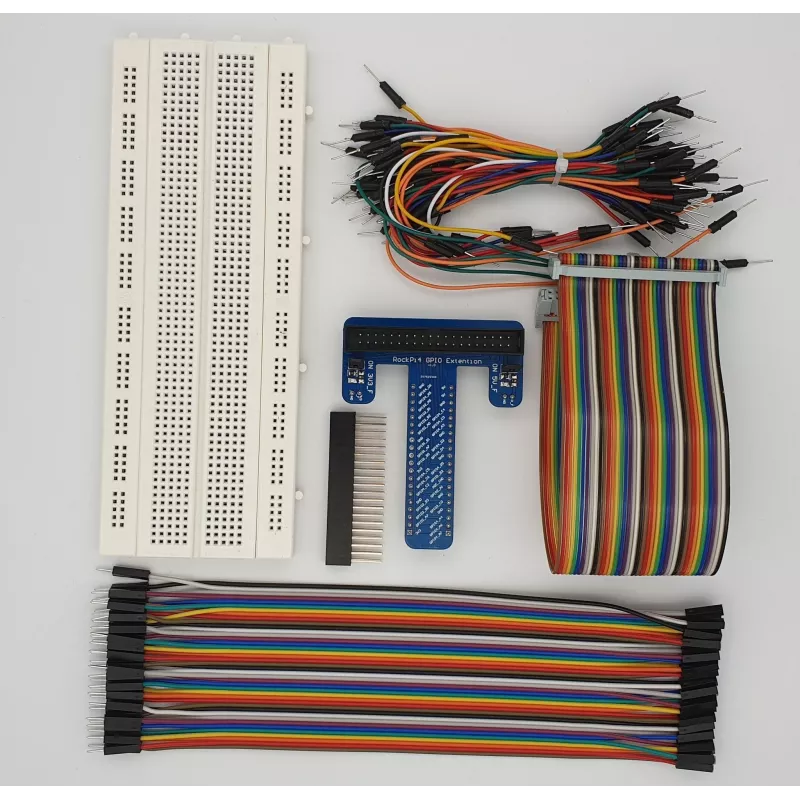

Key specifications

• Product Type: Solderless Breakout Kit
• Compatibility: Radxa Rock Pi 4 (Model A, B, C, SE, Plus)
• Connection Method: Solderless
• GPIO Interface: 40-pin standard header
• Breakout Pins: All GPIO, I2C, SPI, UART, 3.3V, 5V, GND
• Included Cable: 40-pin ribbon cable, approx. 20 cm
• Included Header: 40-pin male header (for breadboard)
• Input Connector: 40-pin female header (for Rock Pi 4)
• Output Connector: 40-pin male header (for ribbon cable)
• Material: FR-4 PCB
• Power Source: Powered by Rock Pi 4 GPIO
• Mounting: Direct attachment to Rock Pi 4 GPIO

Recommendations

This breakout kit is perfect for anyone looking to experiment with the Rock Pi 4 without soldering. It is reusable and simplifies the development process.
