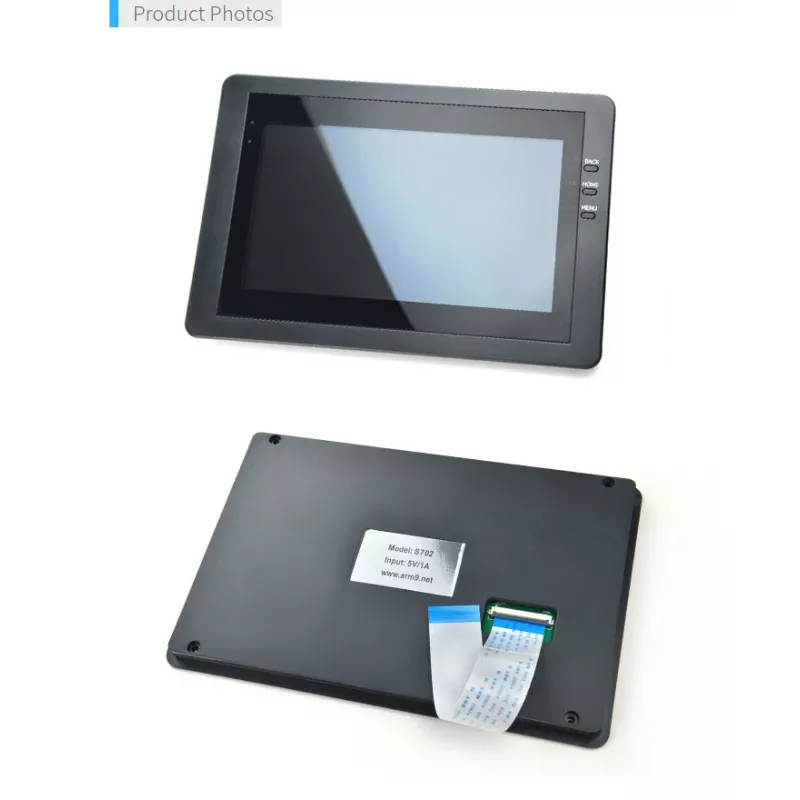

ALLNET FriendlyARM οθόνη αφής χωρητική 7 ιντσών (S702) - οθόνη IPS 1024x600

The ALLNET FriendlyARM S702 is a 7-inch capacitive touch LCD display designed for use with FriendlyARM NanoPi and NanoPC series single-board computers. Featuring an IPS panel with 1024x600 resolution and 5-point multi-touch, this display offers vibrant colors and wide viewing angles, making it ideal for embedded projects, IoT applications, and interactive kiosks.

Advantages

High-quality IPS LCD with 16.7 million colors and 350 cd/m² brightness ensures clear visibility even in well-lit environments. The capacitive touch screen supports 5 simultaneous touch points for intuitive interaction. With a 40-pin RGB interface, it integrates seamlessly with compatible SBCs without additional drivers.

Suitable for

• Embedded systems and prototyping
• IoT control panels and dashboards
• Portable media players and digital signage
• Educational and hobbyist projects

Key specifications

• Display Size: 7 inch (17.8 cm) diagonal
• Resolution: 1024 x 600 pixels
• Display Technology: IPS LCD
• Touch Technology: Capacitive Multi-touch (5-point)
• Interface: 24-bit RGB via 40-pin FPC
• Brightness: 350 cd/m²
• Contrast Ratio: 800:1
• Viewing Angle: 170° / 170° (H/V)
• Aspect Ratio: 16:9
• Color Depth: 16.7 Million Colors
• Active Display Area: 153.6 x 86.4 mm
• Operating Voltage: 5V DC

Recommendations

For optimal performance, pair the S702 with a compatible FriendlyARM NanoPi or NanoPC board. Ensure a stable 5V power supply is used. The display is plug-and-play with most supported SBCs.
