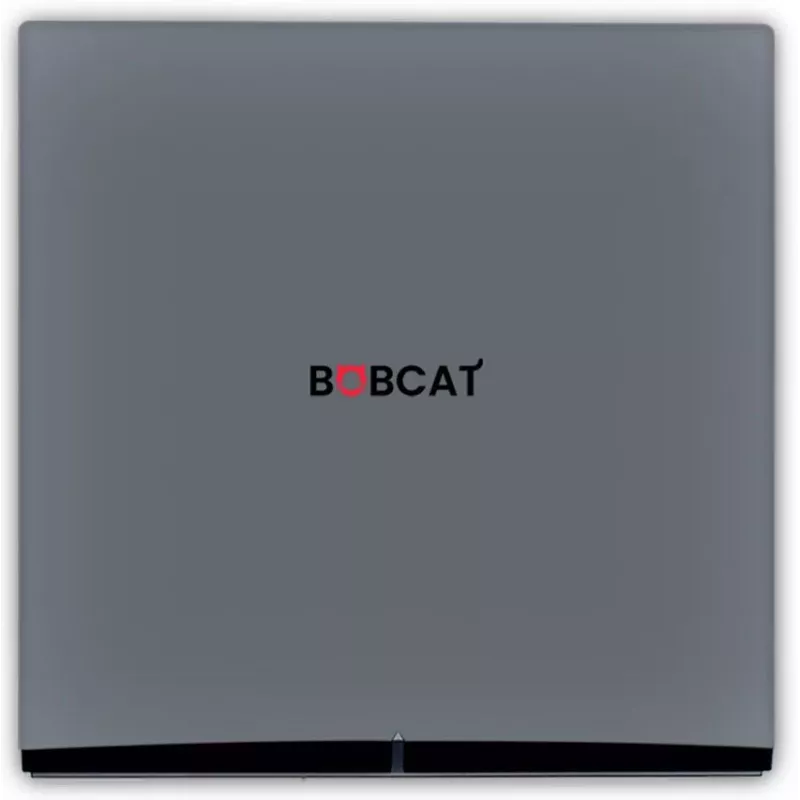

ALLNET Bobcat Miner 300 EU868 Helium Network HNT-Miner (BC0001)

The ALLNET Bobcat Miner 300 (BC0001) is a dedicated Helium LongFi hotspot miner designed for the EU868 frequency band. It enables users to participate in the Helium decentralized wireless network, earning HNT tokens by providing coverage and validating transactions. This indoor gateway combines a powerful Rockchip RK3566 processor with 4GB DDR4 RAM and 64GB eMMC storage, ensuring reliable and efficient mining operations.

Advantages

Optimized for the Helium network with pre-installed Bobcat OS, the miner offers plug-and-play setup and low power consumption of approximately 5W. Its integrated 4 dBi antenna and support for Wi-Fi, Ethernet, and Bluetooth provide flexible connectivity options. The device features a security chip (ATECC608A) for enhanced cryptographic operations.

Suitable for

• Individuals and businesses looking to mine HNT cryptocurrency
• Deploying Helium network coverage in indoor environments
• IoT applications leveraging LoRaWAN and Helium LongFi protocols

Key specifications

• Frequency Band: EU868 (863-870 MHz)
• Processor: Rockchip RK3566 Quad-Core Cortex-A55 @ 1.8 GHz
• RAM: 4GB DDR4
• Storage: 64GB eMMC
• Antenna Gain: 4 dBi (included)
• Antenna Connector: RP-SMA Female
• Network: Gigabit Ethernet, Wi-Fi 802.11ac (2.4/5 GHz), Bluetooth 5.0
• Power Supply: DC 12V/1.5A
• Power Consumption: ~5W
• Operating Temperature: -20°C to 55°C
• Enclosure: Indoor
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, place the miner near a window and away from obstructions. Ensure a stable internet connection via Ethernet. The device is compatible with the Helium app for setup and monitoring.
