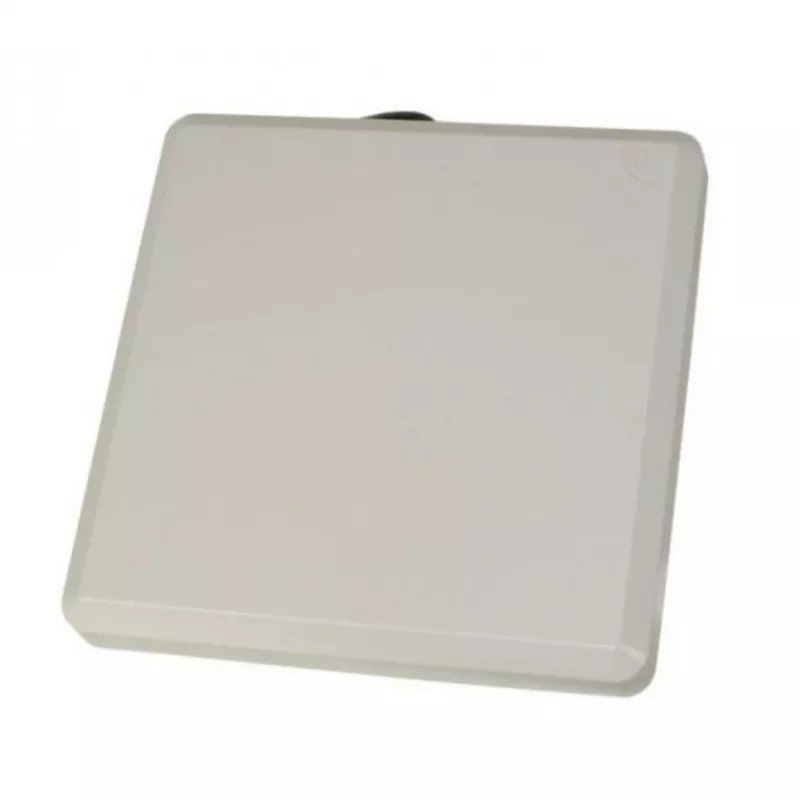

ALLNET ALL19012 2,4 GHz 14 dBi επίπεδη εξωτερική κεραία Patch N-Typ

The ALLNET ALL19012 is a high-performance directional flat patch antenna designed for outdoor 2.4 GHz WLAN applications. With a gain of 14 dBi and a robust UV-resistant ABS housing, it ensures reliable long-range connectivity for IEEE 802.11b/g/n networks.

Advantages

High gain of 14 dBi extends signal range and improves link quality. Directional flat patch design focuses energy in a 30° beamwidth, reducing interference. Weatherproof construction with wind load resistance up to 210 km/h ensures durability in harsh outdoor environments.

Suitable for

• Point-to-point and point-to-multipoint outdoor wireless links
• Wi-Fi coverage extension for campuses, warehouses, and industrial sites
• Bridge connections between buildings

Key specifications

• Frequency Range: 2.4 - 2.5 GHz
• Gain: 14 dBi
• Polarization: Linear (Vertical or Horizontal)
• Horizontal Beamwidth: 30°
• Vertical Beamwidth: 30°
• VSWR: < 1.5
• Impedance: 50 Ohm
• Connector: N-Type Female
• Front-to-Back Ratio: >25 dB
• DC Ground Protection: Yes
• Operating Temperature: -40°C to +80°C
• Wind Load Resistance: Up to 210 km/h
• Material: UV-resistant ABS
• Mounting: Pole/Wall mount bracket included

Recommendations

For optimal performance, pair with a compatible 2.4 GHz access point or radio. Ensure proper alignment for maximum signal strength.
