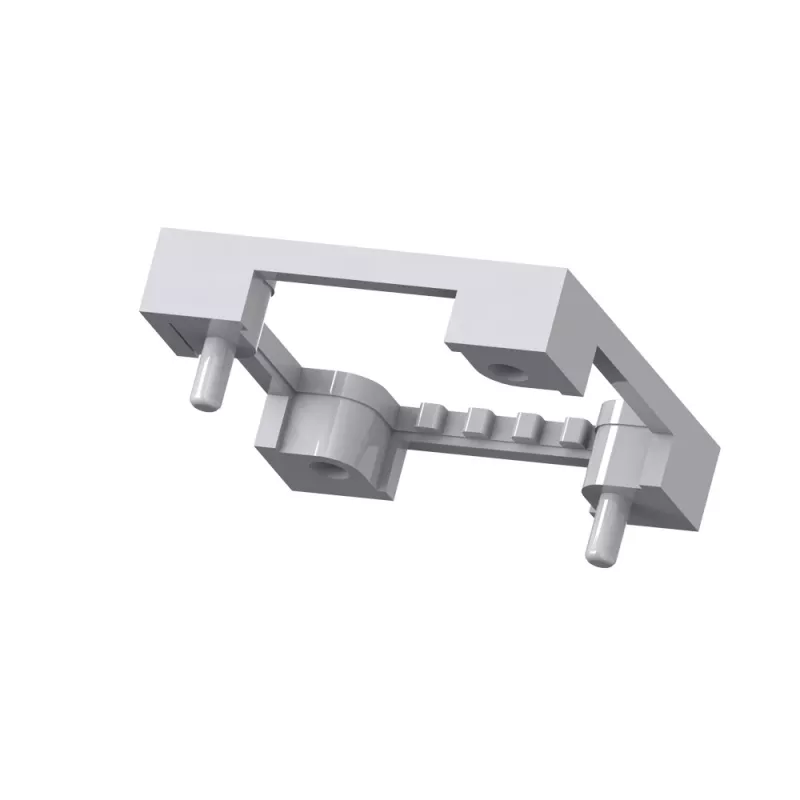

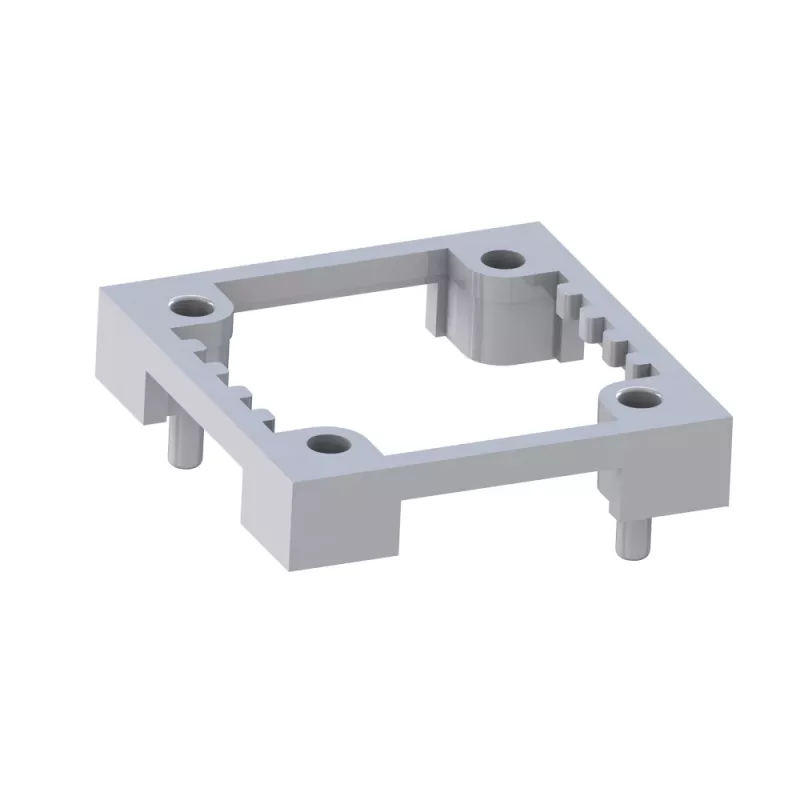

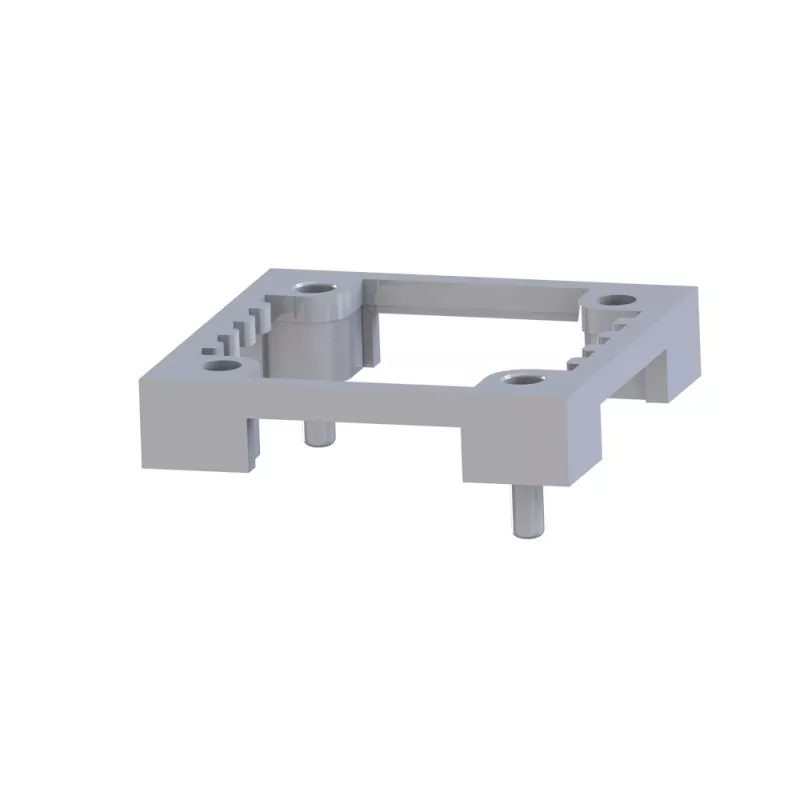

ALLNET ALL-BRICK-0307 Intermediate Bridge για πλακέτες ανάπτυξης

The ALLNET ALL-BRICK-0307 Intermediate Bridge is a passive interconnect module designed for the ALL-BRICK system. It enables series connection of two ALL-BRICK modules via standard 2x10 pin headers, providing a straight-through 1:1 pin mapping. Ideal for prototyping, development board expansion, and educational projects.

Advantages

Easy plug-and-play module interconnection without soldering. Passive design ensures no signal interference. Compatible with all ALL-BRICK modules for flexible system building.

Suitable for

• Connecting two ALL-BRICK modules in series
• Prototyping and development board expansion
• Educational projects and experiments

Key specifications

• Product Type: Module Interconnect Bridge
• System Compatibility: ALLNET ALL-BRICK System
• Connector Interface: ALL-BRICK Standard 2x10 Pin Header
• Connector Gender: Male-to-Female
• Number of Pins: 20 pins per interface
• Pin Configuration: Straight-through (1:1 mapping)
• Function: Connects two ALL-BRICK modules in series
• Electrical Nature: Passive Component
• Mounting Type: Direct module-to-module plug-in
• Material: FR4 PCB, Plastic Headers
• RoHS Compliance: Yes
• Manufacturer Series: ALL-BRICK

Recommendations

Use this bridge to expand your ALL-BRICK system by stacking modules. Ensure proper alignment of pin headers to avoid damage.
