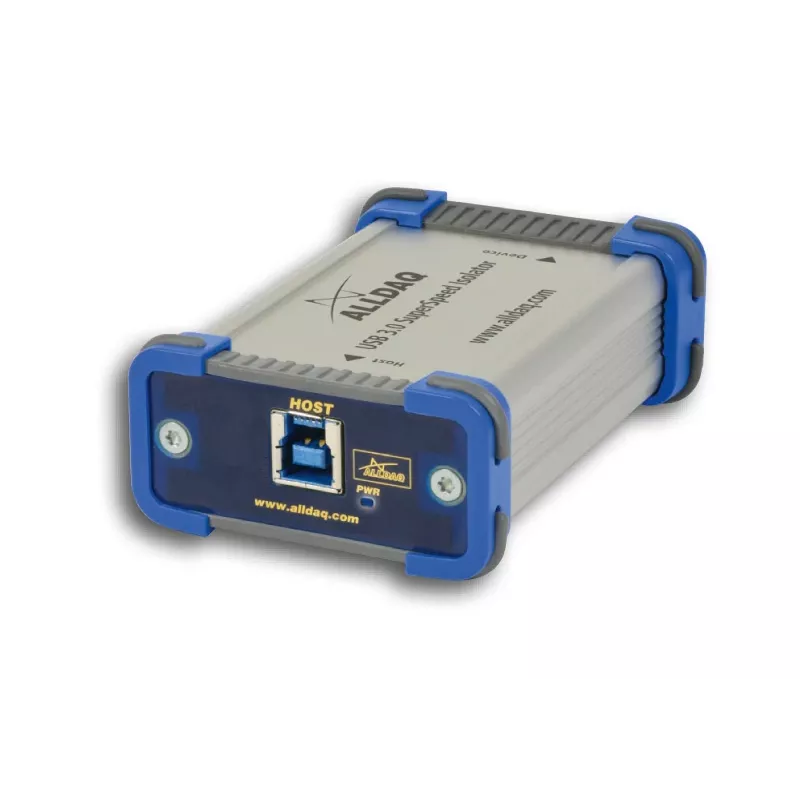

ALLNET ADQ-USB 3.0-ISO-W USB 3.0 SuperSpeed Απομονωτής έως 1 kV

The ALLNET ADQ-USB 3.0-ISO-W is a high-performance USB 3.0 SuperSpeed isolator providing galvanic isolation up to 1000V DC. It effectively eliminates ground loops and protects connected equipment from voltage spikes, making it ideal for industrial, medical, and laboratory environments where signal integrity and safety are critical.

Advantages

This isolator ensures reliable data transmission at speeds up to 5 Gbps while providing robust protection against ground loops and ESD. Its metal housing offers durability and effective shielding. Plug-and-play installation with no drivers required makes it easy to integrate into any system.

Suitable for

• Industrial automation and control systems
• Medical devices requiring patient isolation
• Laboratory measurement and data acquisition
• Secure data transfer between isolated networks

Key specifications

• USB Standard: USB 3.0 SuperSpeed (backward compatible with USB 2.0/1.1)
• Isolation Voltage: 1000V DC
• Data Transfer Rate: Up to 5 Gbps

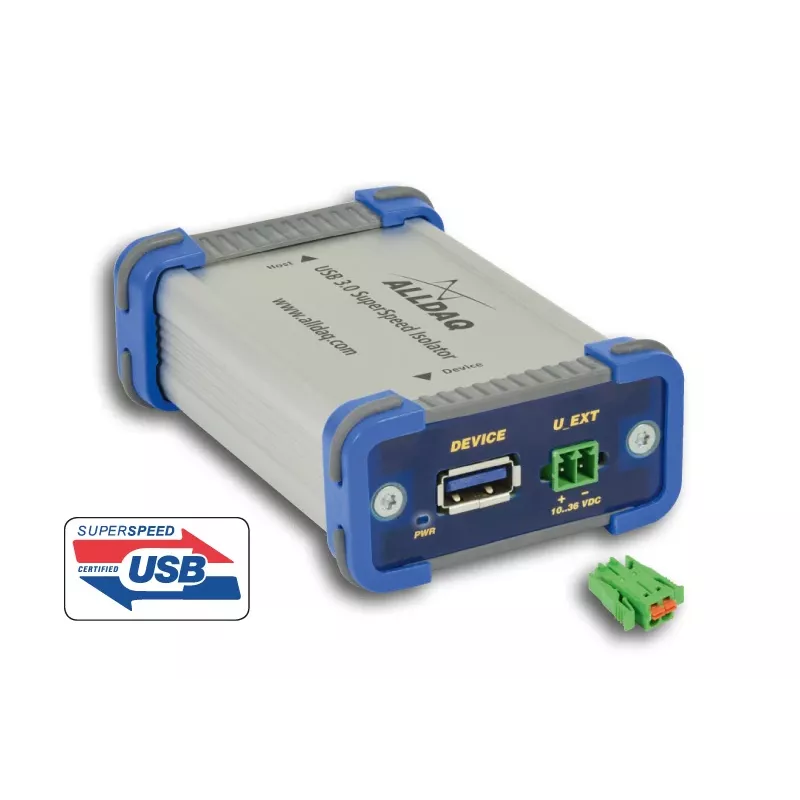

• Upstream Port: 1x USB 3.0 Type B
• Downstream Port: 1x USB 3.0 Type A

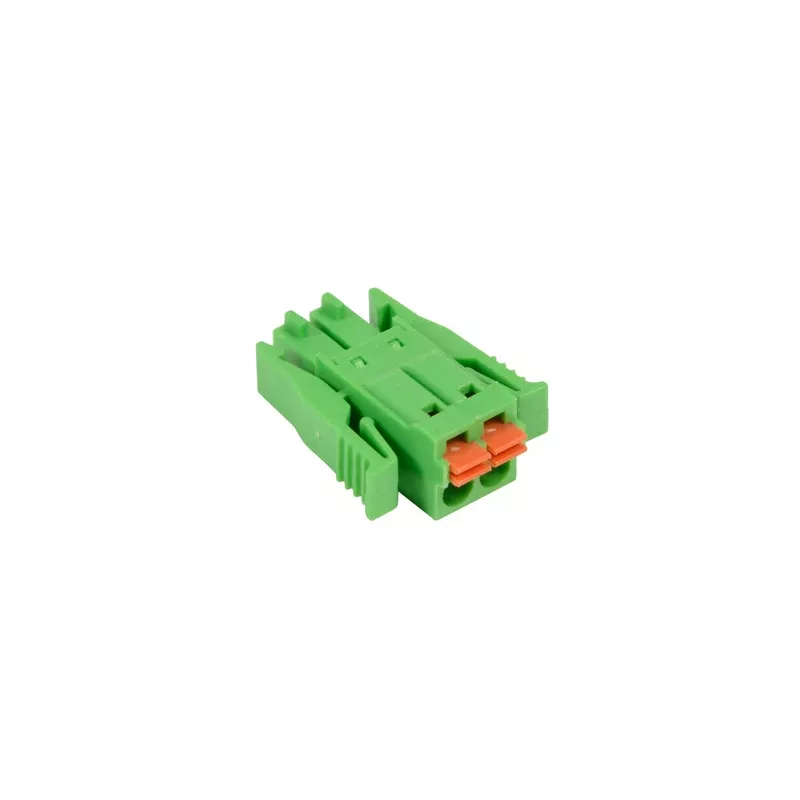

• Power Supply: External 5V DC (adapter not included)
• ESD Protection: ±15kV Air, ±8kV Contact
• Housing Material: Aluminum
• LED Indicators: Power, USB Link/Activity
• Operating Temperature: 0°C to 70°C
• Certifications: CE, FCC, RoHS

Recommendations

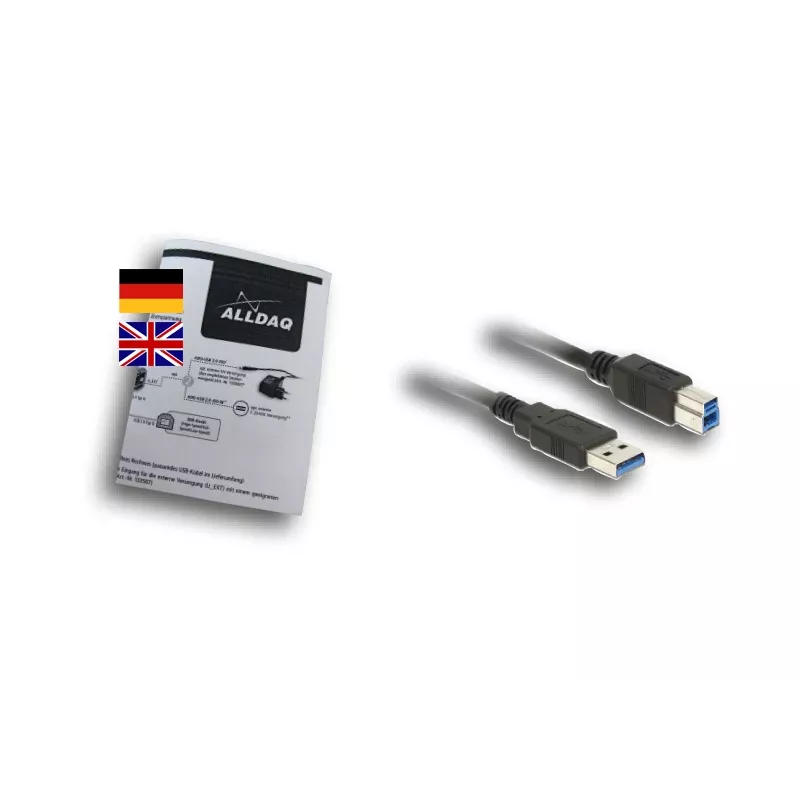

For optimal performance, use a high-quality USB 3.0 cable and a stable 5V DC power supply. Ensure the isolator is placed in a well-ventilated area to maintain operating temperature within specified limits.
