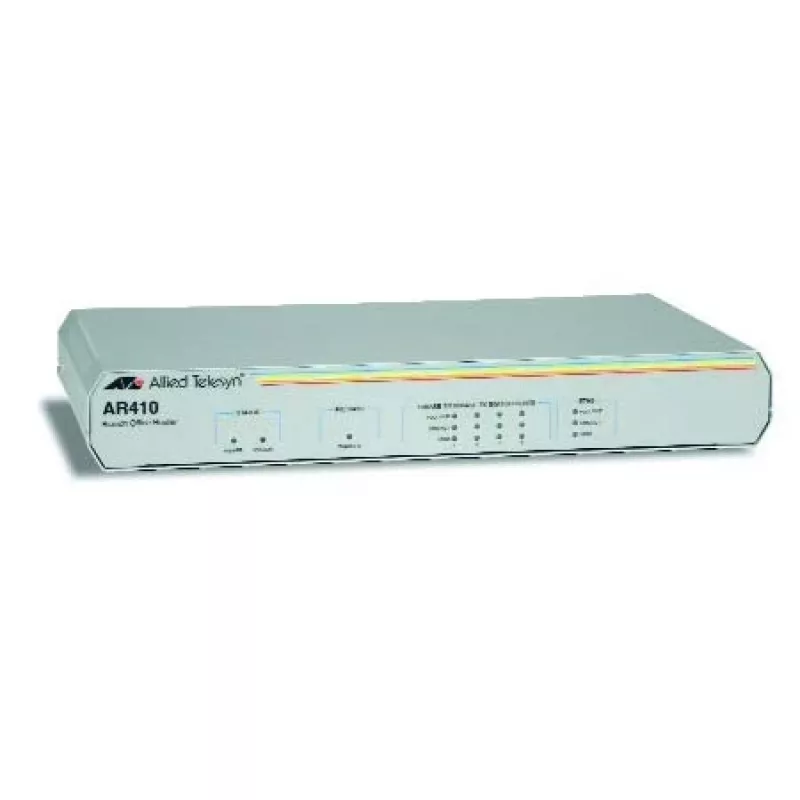

Allied Telesis AT-AR410 αρθρωτός δρομολογητής Branch-Office ενσύρματος δρομολογητής

Wirespeed E1/T1 IPsec VPN Operation
With full Layer 3 multi-protocol routing combined with wirespeed VLAN switching in one compact unit, the AT-AR410 Series re-defines business-class routing. The AT-AR410 Series supports an extensive range of network services using simple modular plug in cards. Offering unprecedented flexibility and performance in such a compact unit, the AT-AR410 Series is particularly suited to T1/E1 applications where
even the most data-intensive VPN operation is supported at full E1/T1 speeds.The AT-AR410 Series is designed for the Small to Medium
Enterprise (SME) and the branch office where multiple workgroups will benefit from VLAN separation together with high performance VPN
tunnel operation for connection to remote offices and teleworkers, across the Internet. Businesses can also enjoy the cost advantages of Frame Relay networking at wirespeed E1/T1 rates.

Unique VLAN Operation With Integral 4 X 10/100MBPS Switch
Unique for a product in this price bracket, the AT-AR410 Series routers support port-based and 802.1q tagged VLAN operations across
their 4 x 10/100Mbs switch ports.This capability offers a potent combination of wirespeed L2 switching between VLANs as well as high
performance L3 routing between VLANs in one highly cost-effective unit. By supporting Layer 3 routing between VLANs at a sustained rate of 8,500 PPS for 64 byte packets, the AT-AR410 Series is a price breakthrough for small offices that have previously found the benefits of VLAN routing to be cost prohibitive.

Key Features
- Port Interface Card (PIC) bay supporting a range of LAN/WAN interfaces.
- High-performance IPsec DES & 3DES VPN.
- Stateful Inspection Firewall.
- 10/100Mbps Ethernet LAN/WAN port Integral 4 x 10/100Mbps full duplex
Ethernet switch.
- Port-based VLAN operation on 4 switch ports.
- 8Mb Flash for storage of two software releases.
- OSPF.
- CLI & SNMPv3 management.
- Web GUI.

Allied Telesis AT-AR410 Modular Branch Office Router. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE..., Data transfer rate: 100 Mbit/s. Routing protocols: OSPF, Management protocols: SNMP / SNMPv2c / SNMPv3, DHCP, Supported network protocols: IP, IPX/SPX, Appletalk, IPX/SPX Spoofing, PPPoE, STP, RSTP. Firewall security: Network address translation (NAT) firewall, Port Address Translation (PAT) firewall, IP, Authentication method: RADIUS, TACACS+, CHAP, PAP. Flash memory: 8 MB, Internal memory: 16 MB, Mean time between failures (MTBF): 50000 h. Power consumption (typical): 10 W
