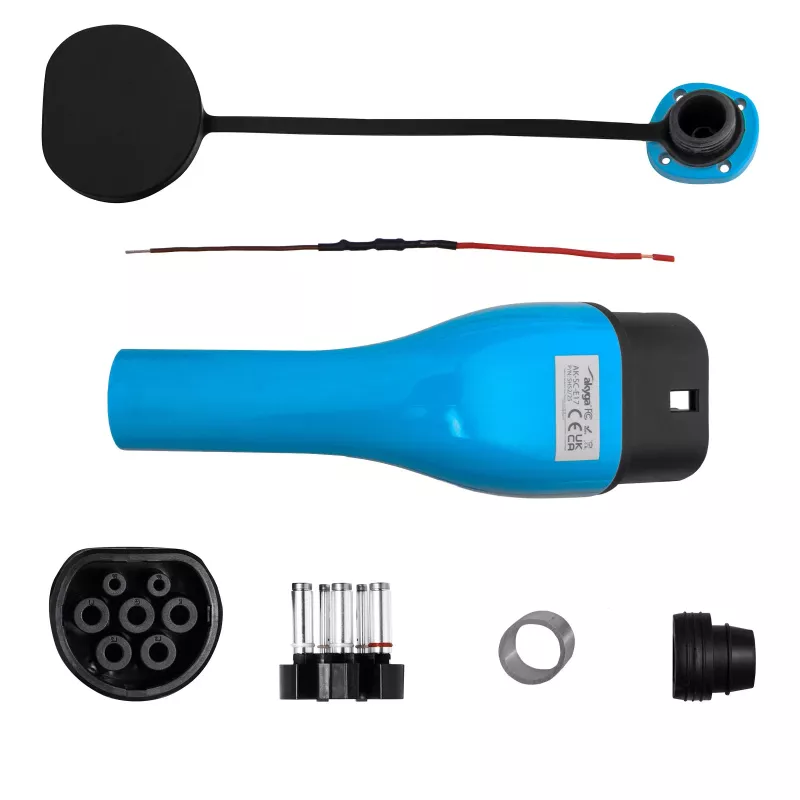

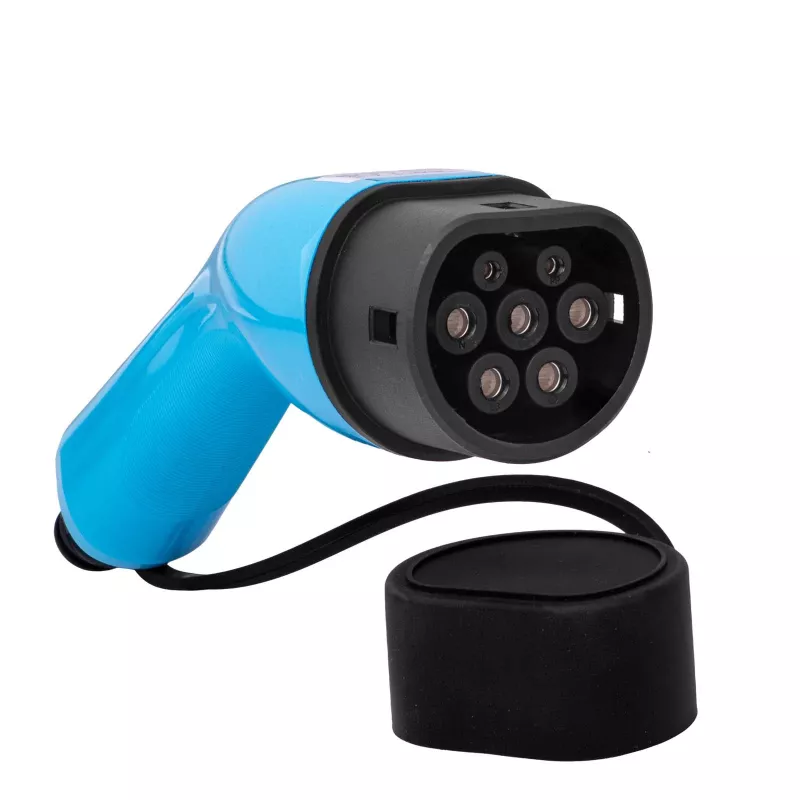

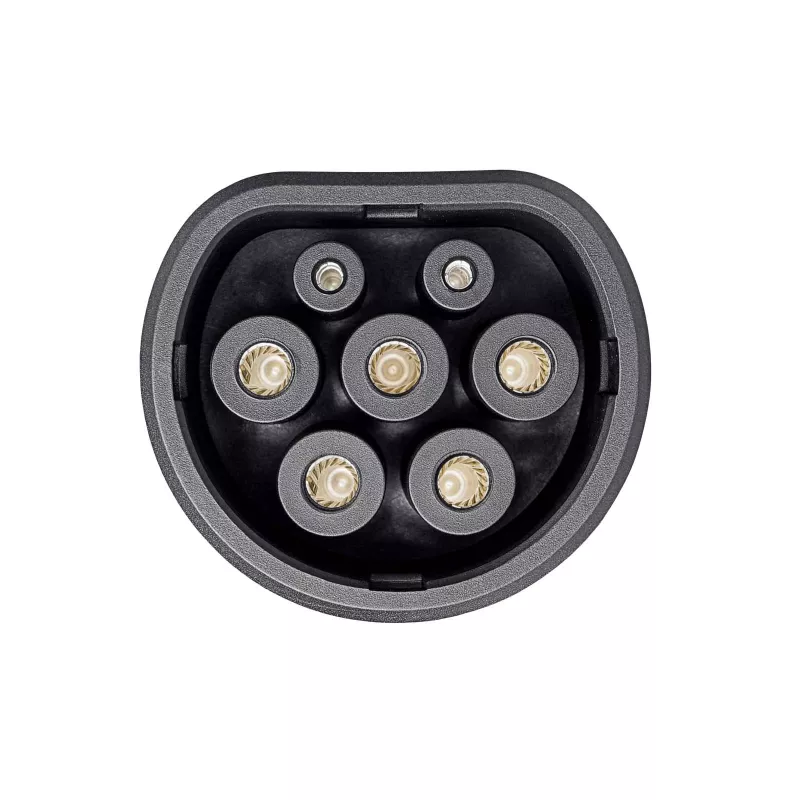

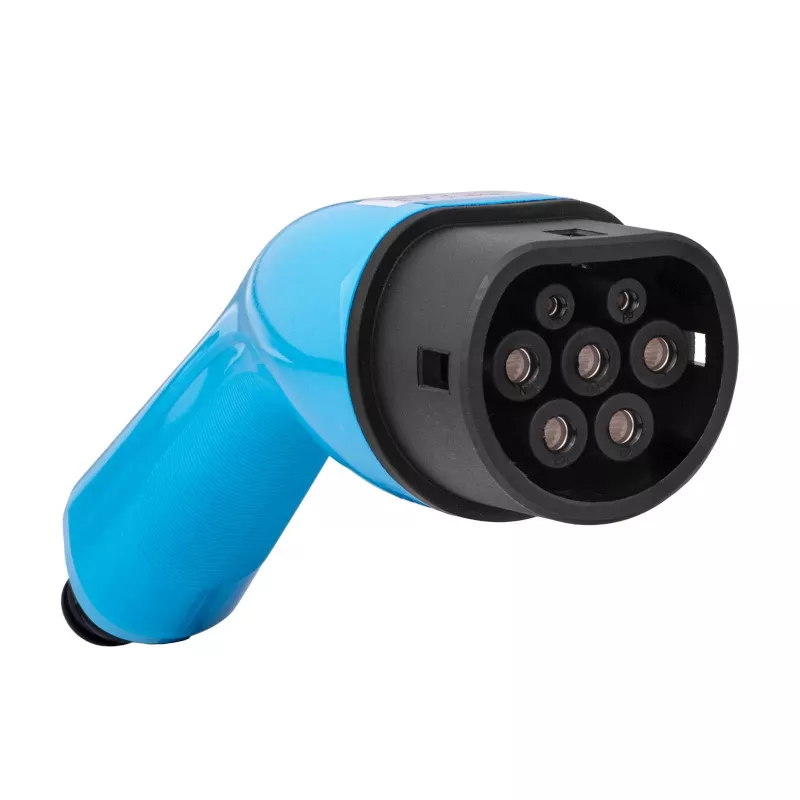

Akyga AK-SC-E17 Type 2 EV Charging Connector, 3-Phase, 32 A, Female, Blue

The Akyga AK-SC-E17 is a Type 2 EV charging connector with a female contact configuration, designed for 3-phase charging at up to 32 A. It features silver-plated contacts and comes with a 220 Ω resistor.

Key features

• Type 2 (IEC 62196-2) female connector
• 3-phase charging capability
• Maximum current: 32 A
• Silver-plated contacts
• Includes 220 Ω resistor

Specifications

• Brand: Akyga
• MPN: AK-SC-E17
• Product type: EV charging connector (Type 2, female)
• Connector 1: Type 2 (IEC 62196-2) female
• Technical features: 3-phase
• Maximum current: 32 A
• Connector contacts plating: Silver
• Product colour: Blue
• Depth: 220 mm
• Width: 95 mm
• Height: 75 mm
• Weight: 419 g
• Quantity per pack: 1 piece
• Included Accessories: 220 Ω resistor
