Akasa KS7 Intel LGA 1200/115X Low Profile Ψύκτρα CPU 16mm Ύψος Βίδες και Backplate

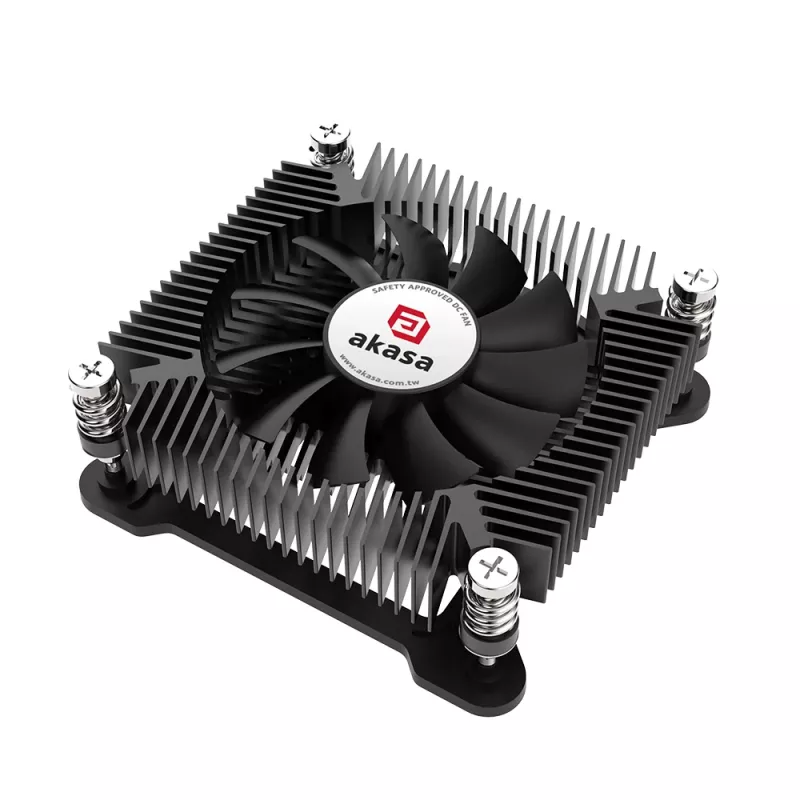

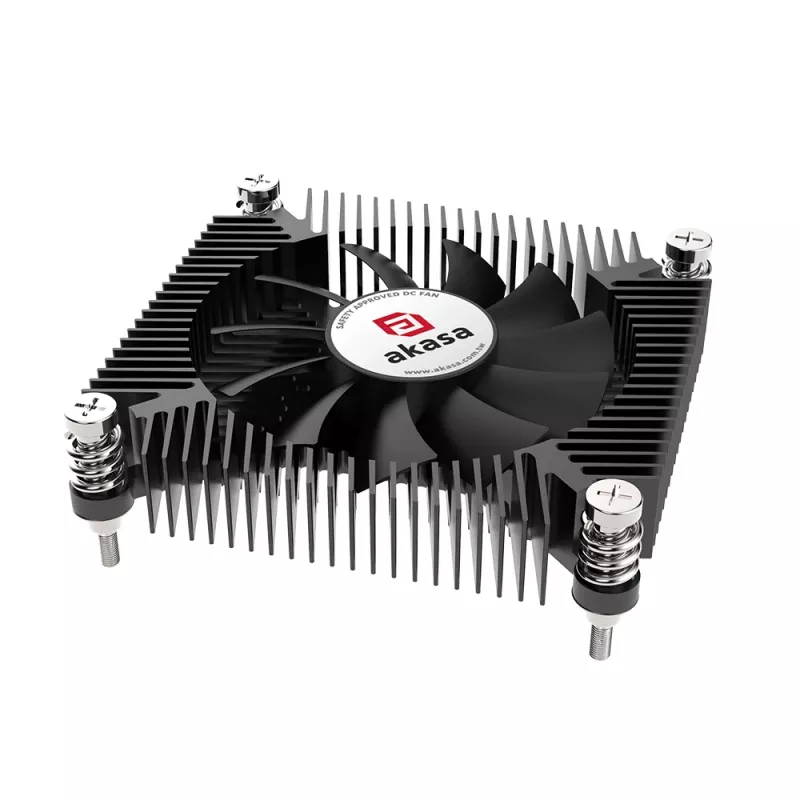

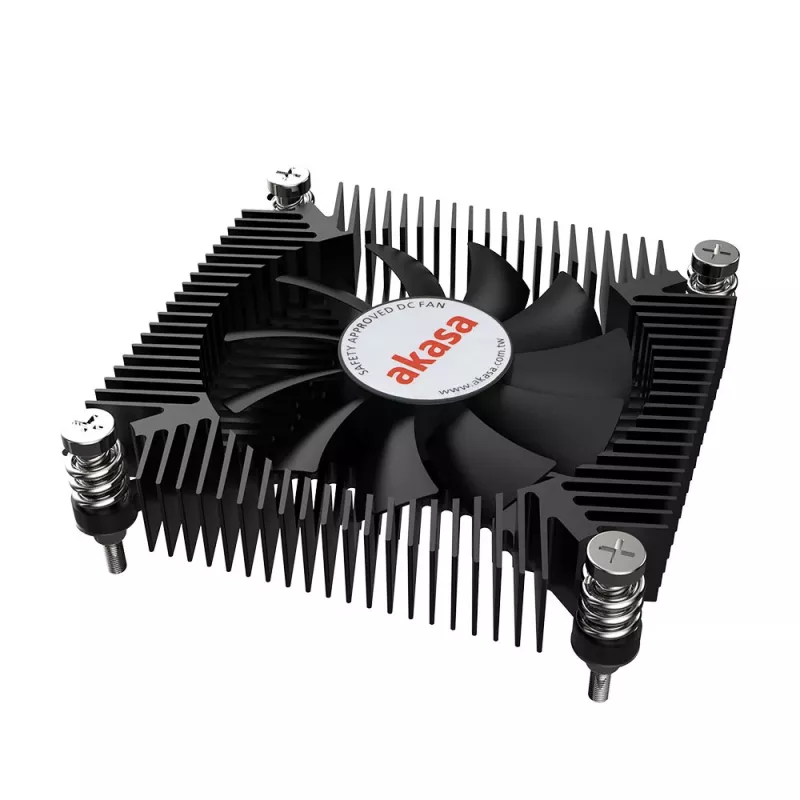

The Akasa KS7 is a low profile CPU cooler designed for Intel LGA 1200/115X sockets, offering efficient cooling in space-constrained environments. With a height of only 29.5 mm, it is ideal for slim HTPC, mini-ITX, and small form factor builds. The cooler features a 92 mm PWM fan with Hydro Dynamic Bearing, ensuring quiet operation and long lifespan. Pre-applied thermal paste and a push-pin mounting system simplify installation.

Advantages

Ultra-low profile design (29.5 mm) fits in compact cases. PWM fan control allows for optimal balance between cooling performance and noise. Hydro Dynamic Bearing reduces friction and extends fan life. Pre-applied thermal paste ensures easy and effective heat transfer.

Suitable for

• Small form factor (SFF) PCs
• HTPC and media center builds
• Office and home theater systems
• Intel LGA 1200/115X socket motherboards

Key specifications

• Socket Compatibility: Intel LGA1200, LGA1156, LGA1155, LGA1151, LGA1150
• Cooler Type: Low Profile Air Cooler
• Heatsink Material: Aluminium Fins with Copper Core
• Fan Dimensions: 92 x 92 x 15 mm
• Fan Speed: 600 - 2500 RPM (PWM Controlled)
• Max Airflow: 45.6 CFM
• Max Static Pressure: 2.37 mm H2O
• Noise Level: 17.0 - 29.8 dB(A)
• Bearing Type: Hydro Dynamic Bearing (HDB)
• Fan Connector: 4-pin PWM
• Rated TDP: 65W
• Rated Voltage: 12V DC
• Rated Current: 0.15A
• Power Consumption: 1.8W
• Cooler Height: 29.5 mm
• Mounting Type: Push-pin
• Thermal Paste: Pre-applied

Recommendations

For best performance, ensure your case has adequate airflow. The KS7 is designed for CPUs with TDP up to 65W. Ideal for Intel Core i3, i5, and i7 processors (non-K series) in compact builds.
