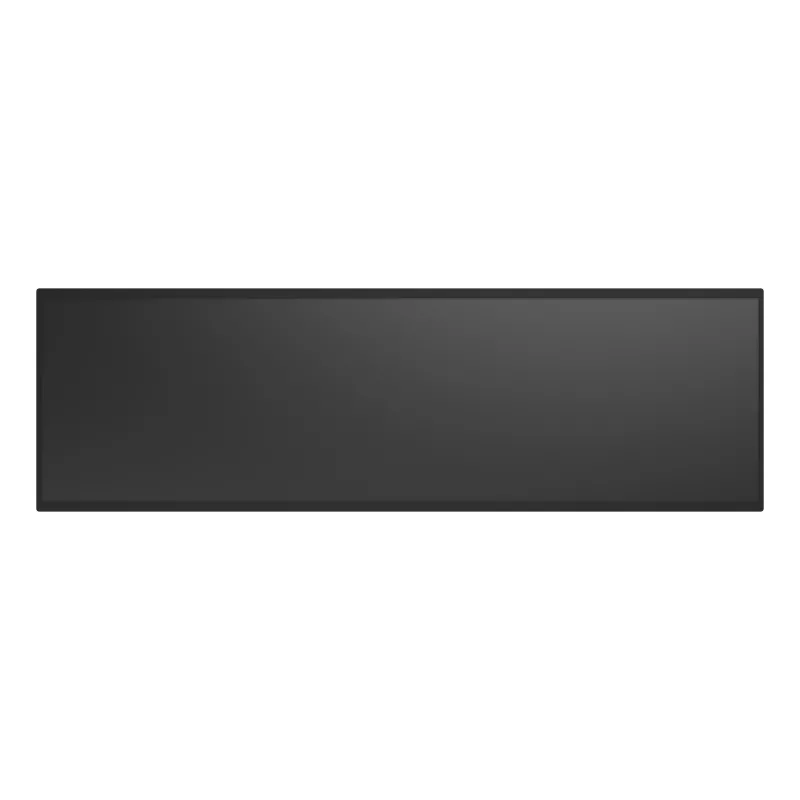

AG NEOVO PB3701 37 inch Stretched Bar-Type LED LFD 700 cd/m² 1000:1 5ms

The AG NEOVO PB3701 is a professional 37-inch stretched bar-type LED large format display designed for digital signage applications. With an ultra-wide 16:3 aspect ratio and 1920x360 resolution, it delivers vivid visuals with 700 cd/m² brightness and a 1000:1 contrast ratio. Ideal for retail, transportation, and corporate environments, this display ensures reliable performance and easy integration.

Advantages

Exceptional brightness of 700 cd/m² ensures clear visibility even in brightly lit environments. The stretched bar format is perfect for displaying dynamic content such as menus, schedules, or advertisements in narrow spaces. With a 5ms response time and wide viewing angles (178°/178°), the PB3701 provides smooth, consistent imagery from any perspective.

Suitable for

• Digital signage in retail stores and shopping malls
• Transportation hubs (airports, train stations) for departure boards
• Corporate lobbies and meeting room information displays
• Hospitality venues for menu boards and wayfinding

Key specifications

• Display: 37" Stretched Bar-Type LCD, 16:3 aspect ratio
• Resolution: 1920 x 360
• Brightness: 700 cd/m²
• Contrast Ratio: 1000:1
• Response Time: 5 ms (GtG)
• Viewing Angles: 178° horizontal / 178° vertical
• Color Depth: 16.7 million colors (8-bit)
• Backlight: LED, 50,000 hours life
• Video Inputs: 1x DisplayPort, 1x VGA
• Control: RS-232, IR
• Power Consumption: 30W typical
• Orientation: Landscape only

Recommendations

For optimal performance, use a certified HDMI or DisplayPort cable. The display is designed for landscape orientation only. Ensure adequate ventilation and avoid exposure to extreme temperatures. Professional installation is recommended for VESA mounting.
