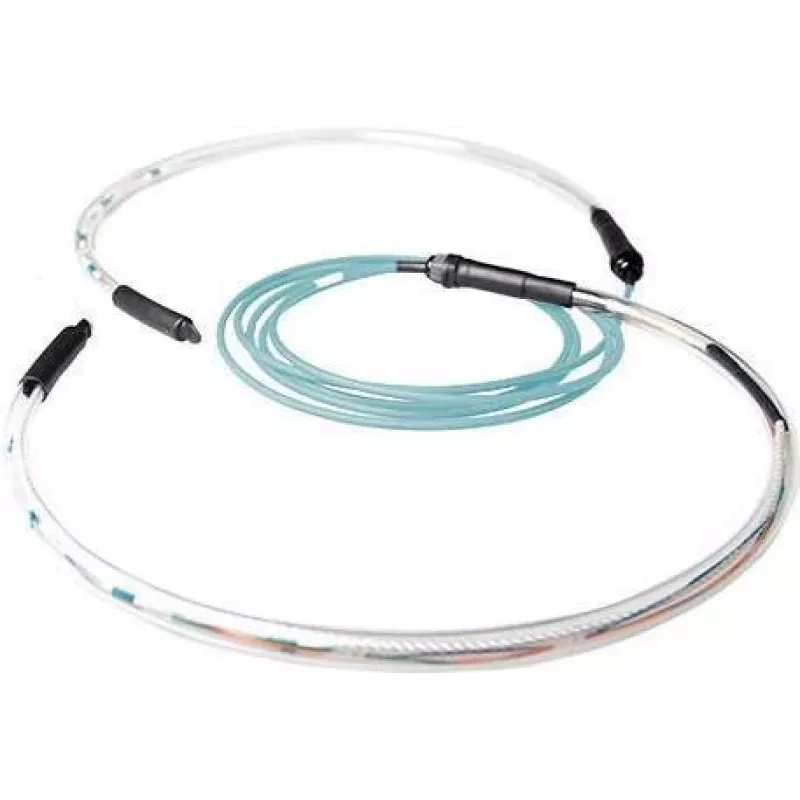

ACT RL2402 20m LC σε LC Duplex Πολύτροπο OM2 Καλώδιο δικτύου οπτικών ινών, LSZH, Aqua

Network downtime and signal loss in high-density fiber installations often stem from inferior patch cables that can't handle the demands of modern data centers. The ACT RL2402 20-meter LC to LC duplex multimode OM2 fiber optic patch cable eliminates these issues with precision-manufactured connectors and a robust LSZH jacket, ensuring reliable, high-speed connections for your critical infrastructure.

Who is it for

This cable is ideal for IT professionals, data center managers, and network engineers who need a dependable, 20-meter multimode fiber link for Gigabit Ethernet, Fast Ethernet, or other high-bandwidth applications. It's perfect for patching between switches, servers, and patch panels in enterprise environments where safety and performance are paramount.

Main features

• 20-meter length for flexible routing in racks and across rooms
• LC duplex connectors on both ends for secure, high-density connections
• OM2 multimode fiber (50/125µm) supports distances up to 550m at 1Gbps and 82m at 10Gbps
• LSZH (Low Smoke Zero Halogen) jacket in aqua for easy identification and enhanced safety
• Low insertion loss (≤0.3dB) and high return loss (≥30dB) for optimal signal integrity
• Cross-over polarity (A-B) for standard network configurations
• Compliant with IEC 60793-2-10 and TIA/EIA-492AAAB standards

Specifications

• Cable Type: Fiber Optic Patch Cable, Multimode OM2
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable Length: 20 meters
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua
• Insertion Loss (Max): 0.3 dB
• Return Loss (Min): 30 dB
• Bandwidth: 500 MHz·km @ 850nm & 1300nm
• Operating Temperature: -20°C to 70°C
• Standards Compliance: IEC 60793-2-10 Type A1a.1, TIA/EIA-492AAAB

Tips

To maintain optimal performance, avoid bending the cable beyond its minimum bend radius (typically 30mm for this type) and keep connectors clean using a fiber optic cleaning kit. For installations in plenum spaces, verify local fire codes regarding LSZH cable usage.
