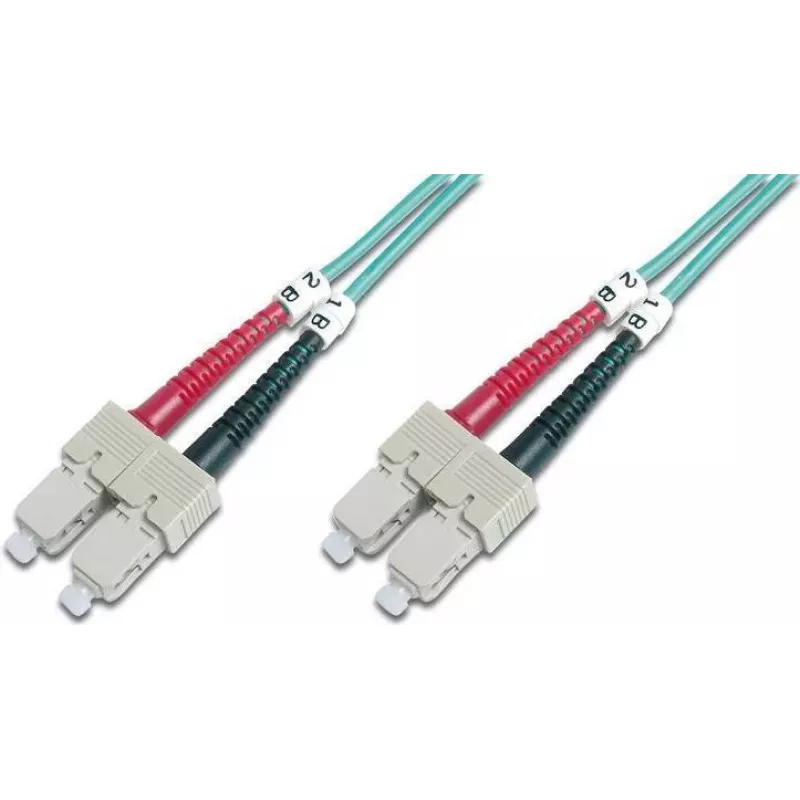

ACT Καλώδιο patch οπτικών ινών LSZH Multimode 50/125 OM4 Duplex SC-SC 30m, aqua RL3730

Fiber optic patch cable engineered for high-speed multimode networking, delivering OM4 performance over 30 meters with duplex SC connectors. Its laser-optimized 50/125 µm core supports 10G, 40G, and 100G Ethernet up to 150 meters at 850 nm, making it ideal for backbone links and data center interconnects. The LSZH jacket emits low smoke and zero halogen, ensuring safety in enclosed spaces, while the aqua color provides instant OM4 identification.

Advantages

This cable offers exceptional bandwidth and low attenuation, with an effective modal bandwidth of 4700 MHz·km at 850 nm, enabling reliable high-speed data transfer. Duplex configuration allows simultaneous bidirectional communication, and SC connectors provide secure, push-pull latching for stable connections. The LSZH jacket enhances fire safety, making it suitable for public buildings and confined areas. Each connector features UPC polish for minimal back reflection, ensuring signal integrity.

Suitable for

• Data center backbone cabling and server interconnects
• Enterprise network upgrades to 10G/40G/100G Ethernet
• High-density fiber patch panels and distribution frames
• Indoor installations requiring low smoke and zero halogen materials
• Telecommunications rooms and campus network links

Key specifications

• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Length: 30 meters
• Connectors: SC to SC, duplex, UPC polish
• Jacket: LSZH (Low Smoke Zero Halogen), aqua color
• Insertion loss: <0.3 dB; return loss: >30 dB
• Attenuation: 2.5 dB/km @ 850 nm, 0.8 dB/km @ 1300 nm
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain bend radius above 30 mm during installation. Use in environments where fire safety is critical, such as schools, hospitals, and high-rise buildings. Verify connector cleanliness before mating to prevent signal degradation.
