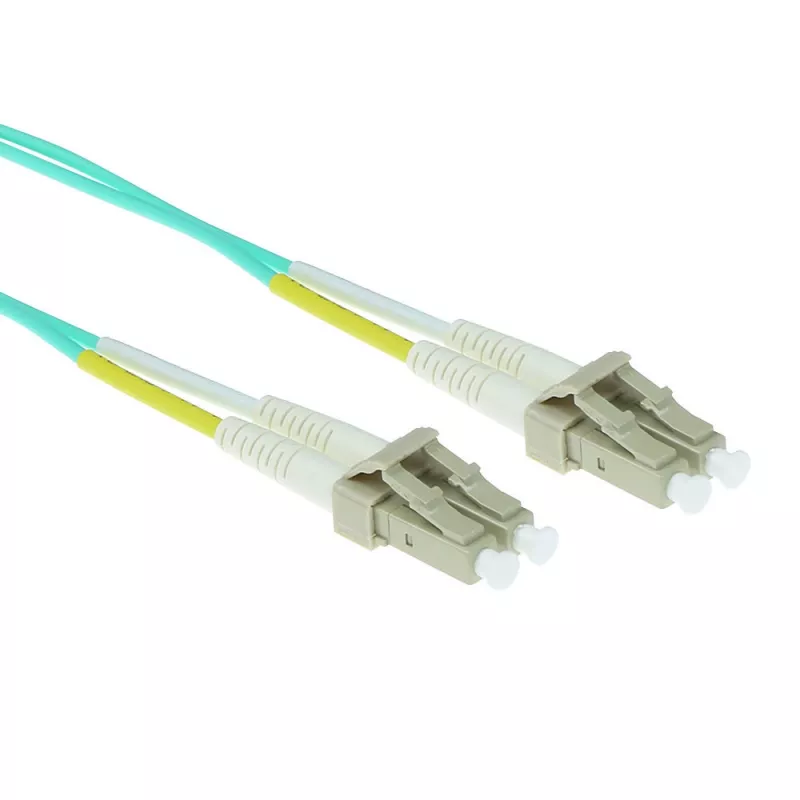

ACT 1,5 m LSZH πολύτροπο 50/125 OM3 καλώδιο patch οπτικών ινών duplex με βύσματα LC

The ACT fiber patch cable duplex 1.5 meter LSZH Multimode 50/125 OM3 is a short-length duplex multimode fibre assembly with LC connectors designed for high-speed indoor network links. The OM3 50/125 core/cladding specification supports 10 Gigabit and higher multimode transmission over short to medium distances. The LSZH jacket reduces smoke and toxic gas emission in the event of fire, making the cable suitable for enclosed spaces where fire safety is a concern. The duplex LC termination enables simultaneous transmit and receive channels for full-duplex operation and simple connection to switches, transceivers and patch panels with LC ports.

Advantages

This multimode OM3 cable offers consistent optical performance for data centre and enterprise patching with low insertion loss and repeatable connections from the LC duplex terminations. The 1.5 meter length provides neat, low-latency links between adjacent racks, network devices and active equipment while minimizing excess cable slack. The LSZH outer jacket improves occupant safety and complies with installations that require low-smoke, halogen-free materials. The compact LC connectors save panel space and are compatible with equipment designed for LC duplex interfaces.

Suitable for

• Data centre horizontal and rack-side patching
• Server-to-switch and switch-to-switch connections
• Telecommunications rooms and equipment cabinets
• Indoor installations requiring low smoke zero halogen cable jackets

Key specifications

• Fibre type: Multimode OM3, 50/125 µm
• Configuration: Duplex
• Connector type: LC duplex on both ends
• Length: 1.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Typical use: Short to medium distance high-speed multimode links

How to use

Identify the LC duplex ports on network equipment and align the keyed LC connectors before insertion. Plug one end into the source device and the other end into the destination device, ensuring correct orientation to maintain transmit/receive polarity for full-duplex operation. Avoid sharp bends and maintain the minimum bend radius specified for multimode fibers during routing. For best optical performance, keep connector end-faces clean and use a fibre inspection scope or approved cleaning tools to remove dust and contaminants prior to connection.

Recommendations

Use this 1.5 m OM3 duplex LSZH cable for short patching runs inside racks and cabinets where full-duplex LC connectivity and fire-safe jacketing are required. Store coiled loosely without tight bends, secure cables to avoid strain on connectors, and perform periodic inspection and cleaning of connector end-faces to preserve insertion loss and return loss performance.
