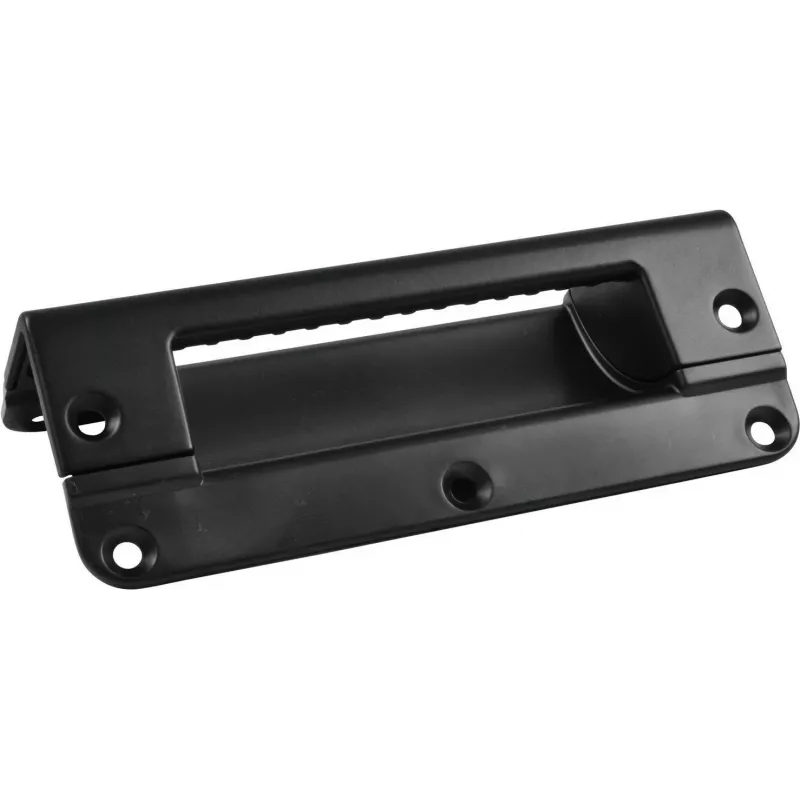

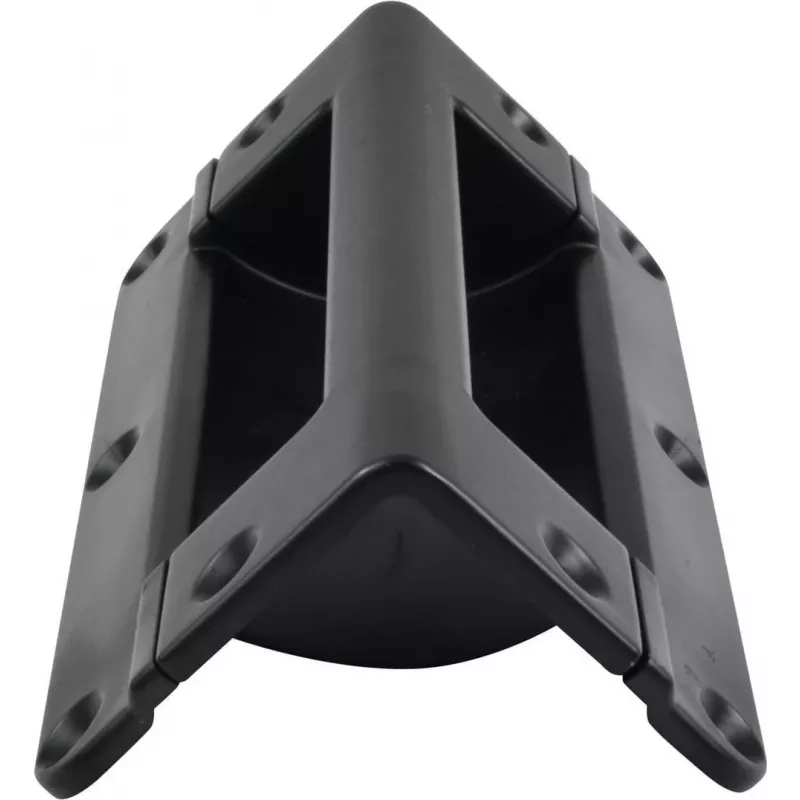

ΑΞΕΣΟΥΑΡ λαβή τοποθέτησης σε άκρη, 150x55x55 mm, IR5, μαύρη 30001110

Enclosures and cabinets often lack a secure, low-profile gripping point that stays out of the way until needed. The ACCESSORY Edge-Mount Handle IR5 solves this by providing a recessed grip that mounts flush into the edge of a panel, door, or drawer. Its 150 x 55 x 55 mm dimensions and black powder-coated zinc die-cast construction suit industrial enclosures, cabinets, and furniture where a durable, unobtrusive handle is required.

Who is it for

This handle is intended for manufacturers and installers of industrial equipment, enclosures, cabinets, and furniture who need a reliable edge-mounted grip. It is especially useful where space is limited or a flush appearance is preferred.

Main features

• Recessed grip design for a flush, low-profile installation
• Made from zinc die-cast with a black powder-coated finish
• Overall dimensions: 150 mm length, 55 mm width, 55 mm height
• Cut-out dimensions: 130 mm x 35 mm
• Rear-mounted screw installation
• Series: IR5

Specifications

• Product type: Edge-Mount Handle
• Material: Zinc Die-Cast
• Colour: Black
• Finish: Black Powder-Coated
• Mounting type: Flush / Edge-Mount
• Overall length: 150 mm
• Overall width: 55 mm
• Overall height (depth): 55 mm
• Cut-out length: 130 mm
• Cut-out width: 35 mm
• Installation depth: Approx. 50 mm
• Installation method: Rear-mounted screws
• Application: Enclosures, Cabinets, Industrial Equipment, Furniture
• Grip type: Recessed Grip

Tips

When installing, ensure the cut-out dimensions match exactly to achieve a flush fit. The rear-mounted screws allow for a clean front surface without visible fasteners.
