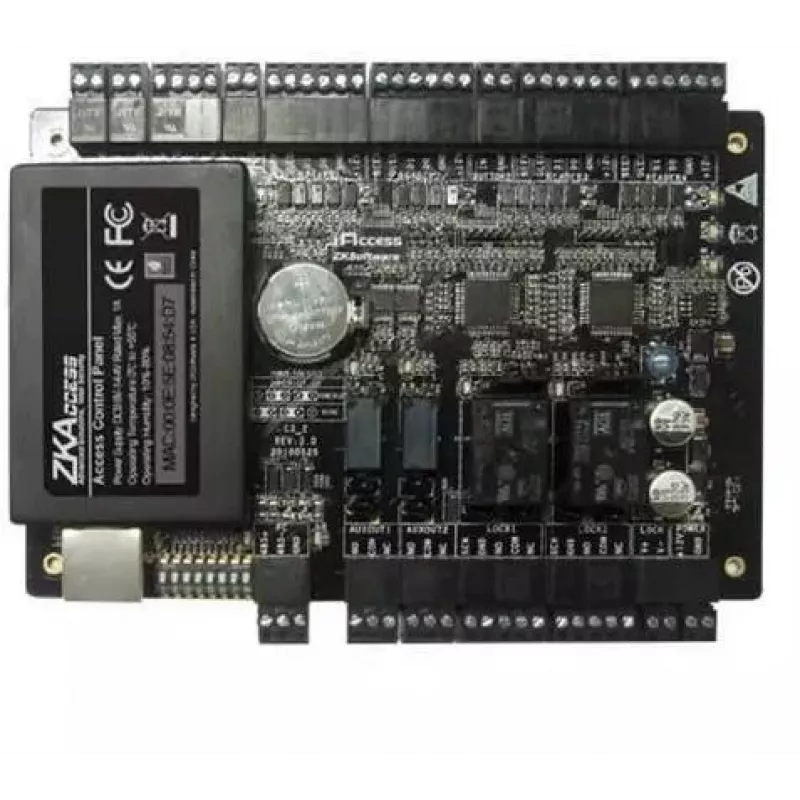

Access Controller ZKTeco GL-C3-PRO200 - 2-Door, 4-Reader, TCP/IP, RS-485

The ZKTeco GL-C3-PRO200 is a high-performance access controller designed for medium to large-scale security systems. It supports up to 2 doors and 4 readers (2 in, 2 out) with Wiegand compatibility (26-bit to 64-bit). With a 32-bit MIPS processor, 32MB RAM, and 256MB flash memory, it ensures reliable and fast processing. The controller offers a card holder capacity of 30,000 and log event capacity of 100,000. Communication interfaces include TCP/IP and RS-485, making it easy to integrate into existing networks. It features 6 inputs (2 exit button, 2 door sensor, 2 aux input) and 4 outputs (2 Form C relay for lock, 2 Form C relay for aux output). Power requirement is 9.6V-14.4V DC (nominal 12V DC). Operating temperature range is 0°C to 45°C (32°F to 113°F) with humidity 10% to 80% non-condensing. Software compatible with ZKBioSecurity and ZKAccess 3.5. Advanced functions include anti-passback, first-card opening, multi-card opening, and duress password. SDK support and CE, FCC certifications are included.

Advantages

Robust construction, flexible reader support, large capacity, and advanced security features make this controller ideal for demanding access control applications.

Suitable for

• Commercial buildings
• Office complexes
• Industrial facilities
• Government institutions

Key specifications

• Number of Doors Controlled: 2
• Number of Readers Supported: 4 (2 In, 2 Out)
• Card Holder Capacity: 30,000
• Log Event Capacity: 100,000
• Communication: TCP/IP, RS-485
• Inputs: 6 (2 Exit Button, 2 Door Sensor, 2 Aux Input)
• Outputs: 4 (2 Form C Relay for Lock, 2 Form C Relay for Aux Output)
• CPU: 32-bit MIPS Processor
• RAM: 32MB
• Flash Memory: 256MB
• Power: 9.6V-14.4V DC (Nominal 12V DC)
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Operating Humidity: 10% to 80% (non-condensing)
• Software: ZKBioSecurity, ZKAccess 3.5
• Advanced Functions: Anti-passback, First-card opening, Multi-card opening, Duress password
• Certifications: CE, FCC

Recommendations

For optimal performance, use with ZKTeco readers and power supply. Ensure proper network configuration for TCP/IP connectivity.
