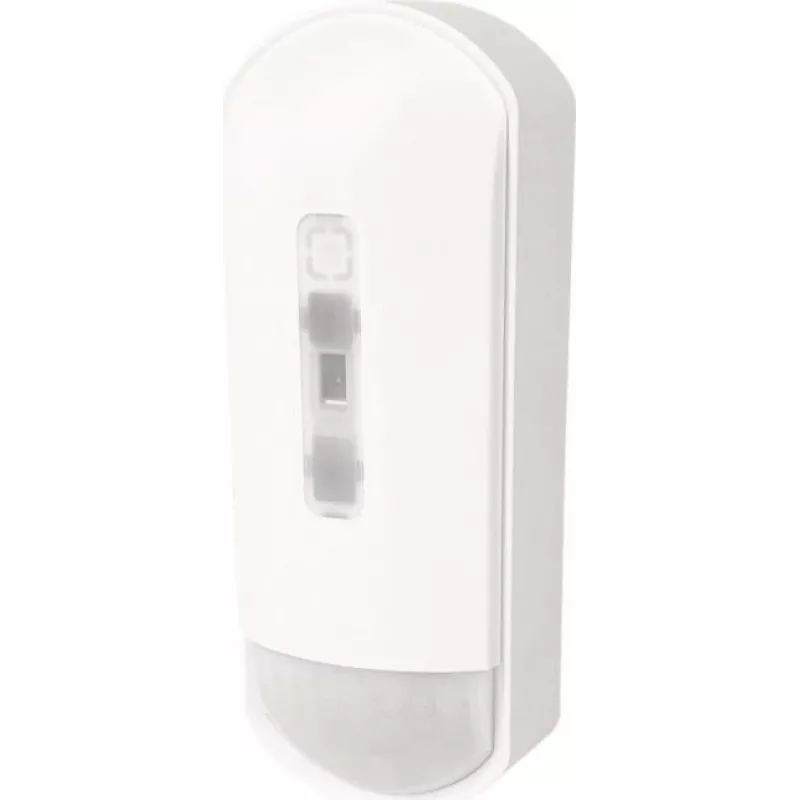

ABUS Security-Center AZBW10220 PIR MW Xtra-Flex EN3 ανιχνευτής κίνησης διπλής τεχνολογίας

The ABUS Security-Center AZBW10220 PIR MW Xtra-Flex EN3 is a professional-grade dual-technology motion detector designed for the ABUS Secvest wireless alarm system. Combining passive infrared (PIR) and microwave (MW) detection technologies, this detector significantly reduces false alarms while providing reliable intrusion detection. Ideal for indoor use, it offers a detection range of 12 m x 12 m and a 90° detection angle. With EN 50131-2-4 Grade 2 certification, it meets high security standards for residential and commercial applications.

Advantages

Dual-technology detection (PIR + MW) minimizes false alarms. Easy wall mounting with adjustable sensitivity for both PIR and MW. Active IR anti-masking prevents tampering. Front and rear tamper protection ensures security. Long battery life of up to 2 years with two CR123A lithium batteries. Compatible with ABUS Secvest wireless alarm systems.

Suitable for

• Indoor security in homes and offices
• Integration with ABUS Secvest alarm systems
• Areas requiring high reliability and low false alarm rates
• Installations needing Grade 2 security compliance

Key specifications

• Detection Technology: Dual-Technology (PIR & Microwave)
• Wireless Frequency: 868 MHz
• Detection Range: 12 m x 12 m
• Detection Angle: 90°
• Mounting Height: 1.8 m - 2.4 m
• Security Grade: EN 50131-2-4 Grade 2, Class II
• Power Supply: 2x CR123A Lithium Batteries (3V)
• Battery Life: Up to 2 years
• Tamper Protection: Front and Rear Tamper
• Anti-Masking: Yes (Active IR)
• Operating Temperature: -10°C to +55°C
• Installation Type: Wall Mount
• LED Indicator: Yes (Alarm, Tamper, Low Battery)
• Sensitivity Adjustment: Yes (PIR and MW independently)
• Housing Material: ABS Plastic
• Environmental Class: II (Indoor Use)

Recommendations

For optimal performance, mount the detector at the recommended height of 1.8 m to 2.4 m and avoid areas with direct sunlight, heat sources, or moving objects that may cause false alarms. Test the detector after installation to ensure proper coverage and sensitivity settings.
